Diode Dynamics | Pod light featuring advanced TIR optics for high efficiency and focus. - Bronco 2.3T / 2.7T / 3.0T 2021-2025

Diode Dynamics - Off-Road Light

Description

Overview

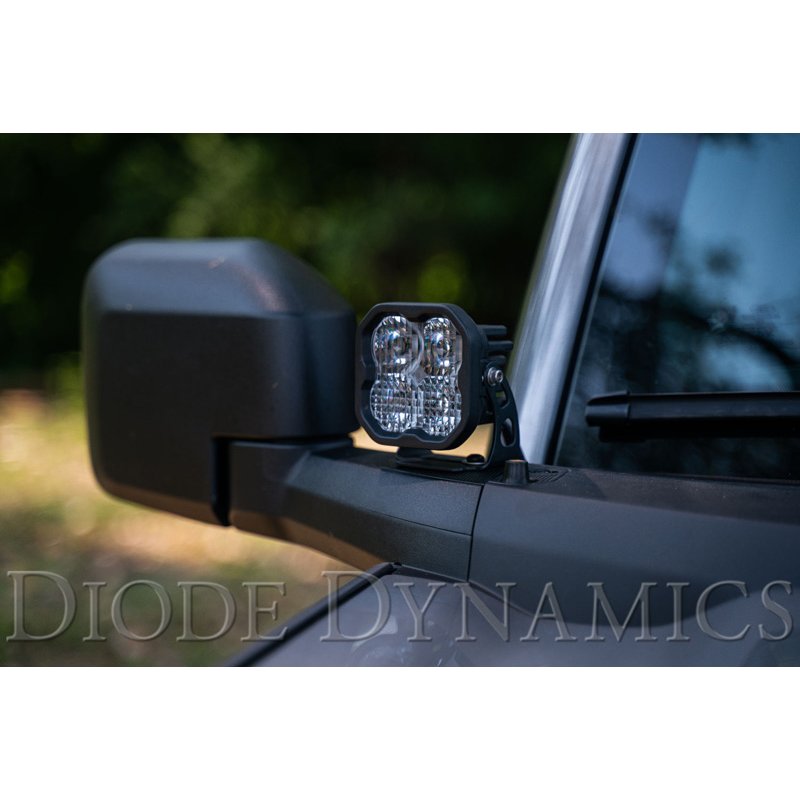

Perfect fitment. The Stage Series SS3 Backlit Ditch Light Kit compatible with Ford Bronco 2021+ allows you to easily mount two SS3 or SSC2 Backlit Pods above the hood. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! This kit features a low profile design while minimizing glare and will not interfere with raising or lowering the hood.

Backlight Functionality. The SS3 LED pods included in our Stage Series Ditch Light Kits feature a brilliant Amber backlight. This integrated backlight gives you an additional accent light along with the main beam. The backlight fully illuminates the TIR optic providing a more unique and modern look than the small indicator LEDs found in other products. To power the backlight use the included harness to tap your desired vehicle function.

Built to last. The brackets in this kit are constructed out of thick-gauge stainless steel. Unlike other options made out of mild steel these brackets are full stainless steel and won't corrode over time. With their thick-gauge construction you also won't experience any vibration or bouncing while driving.

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in the SS3 collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency

Characteristics

• 1286: Powdercoat
• 2120: Yes
• 338: 2
• 532: Black
• 9578: Combination
• Add-On: N/A
• Base Material: Steel
• Bolt Grade: High
• Bolt Thread Type: Medium
• Color Temp: 6000K
• Compliance Rating: SAE J575 Durability Test
• Drilling Required: No
• Input Power (watts): 36
• Intensity (lux): 35 100 cd
• Measured Output (lumens): 3 000 lm
• Mounting Hardware Included: Yes
• Operating Temperature: -40C to 85C (-40F to 185F)
• Operating Voltage: 9-16V
• Sheen Level: Matte
• Universal Or Specific Fit: Specific

Attributs

• Advanced TIR optics provide high efficiency and focus
• Durable powdercoated aluminum construction
• High-intensity automotive-type LEDs
• Integrated Deutsch-style connector
• Pin-fin heatsink design
