ICON Vehicle Dynamics – Rear Hydraulic Bumpstop Kit

Description

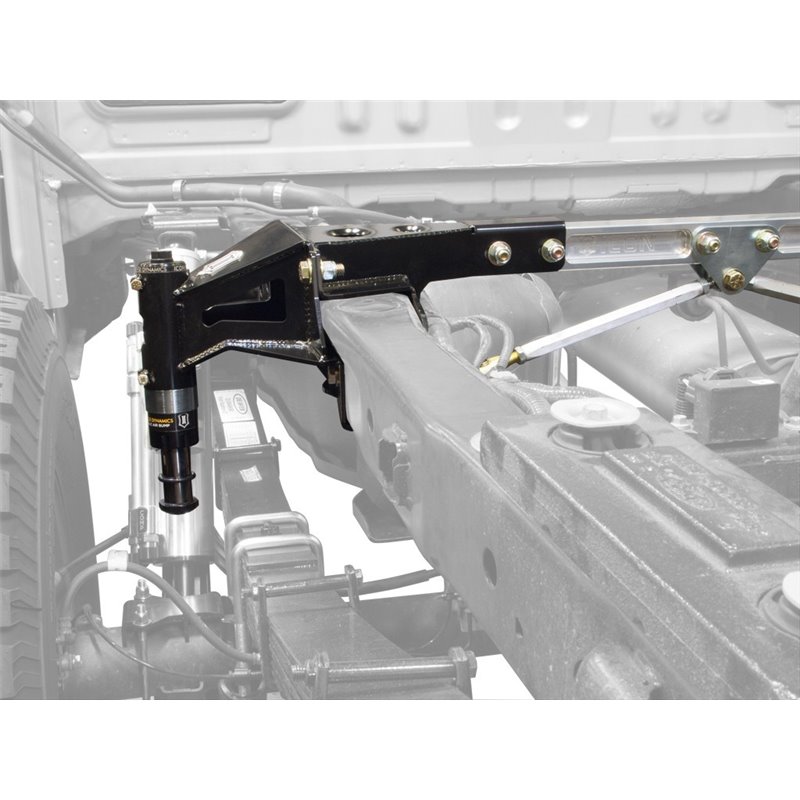

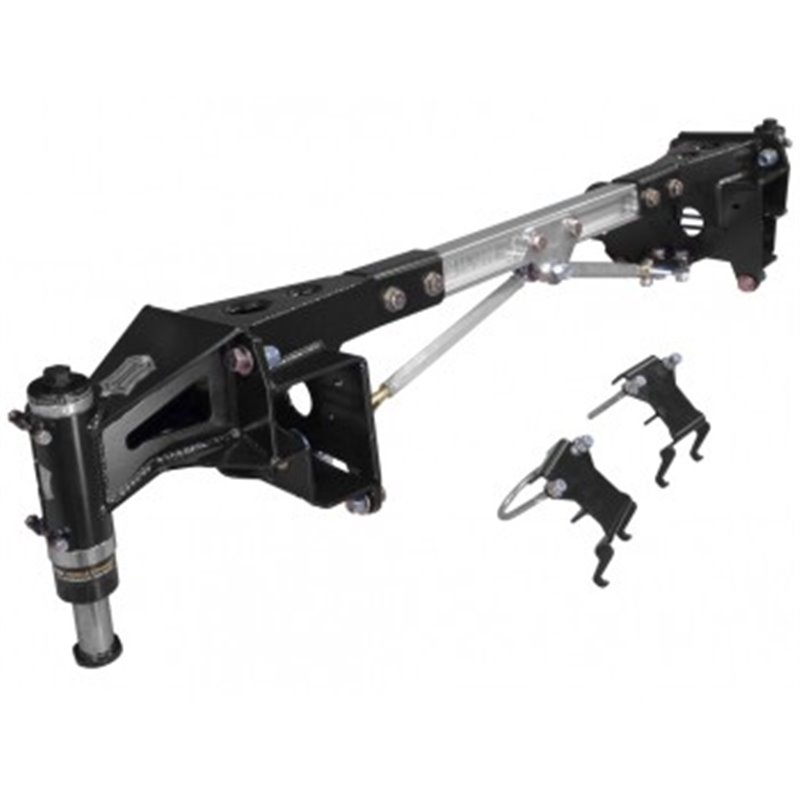

The ICON Vehicle Dynamics Ford Raptor rear hydraulic bumpstop system is the most comprehensive Raptor bumpstop solution on the market, developed through extensive R&D, testing, and tuning. The solid 6061 polished and anodized billet crossbar, with tension rods, stabilizes frame rails and prevents twisting under hard impacts while increasing frame rigidity. The linear-digressive piston complements the bumpstop with infinite tuning options via valve stack, oil volume, and nitrogen pressure adjustments. Velocity-sensitive hydraulic bumpstops increase energy absorption proportionally to impact speed. Bolt-on installation does not require truck bed removal. Pre-tuned and nitrogen-charged for most Ford Raptors. Bumpstop striker pad does not require leaf spring disassembly. User serviceable and tunable. Compatible with Ford SVT Raptor 5.4L/6.2L (see Application Section).

Specifications

• Reference: 95120
• Brand: ICON Vehicle Dynamics
• Crossbar: solid 6061 billet, polished and anodized
• Tension rods: frame rail stabilization
• Piston: linear-digressive (tunable)
• Tuning options: valve stack, oil volume, nitrogen pressure
• Body: CAD plated for corrosion-free service
• Rod seal: urethane for long service life
• Charging: pre-tuned and nitrogen-charged
• Installation: bolt-on, no truck bed removal required
• Clearance: increased leaf spring clearance, no loss in up travel
• User serviceable and tunable
• Condition: New
• Sold and shipped by GBP Performance
