Centerforce | Dual Friction Clutch Kit - Chevrolet / Pontiac 1967-1981

Centerforce – Dual Friction Clutch Kit

Description

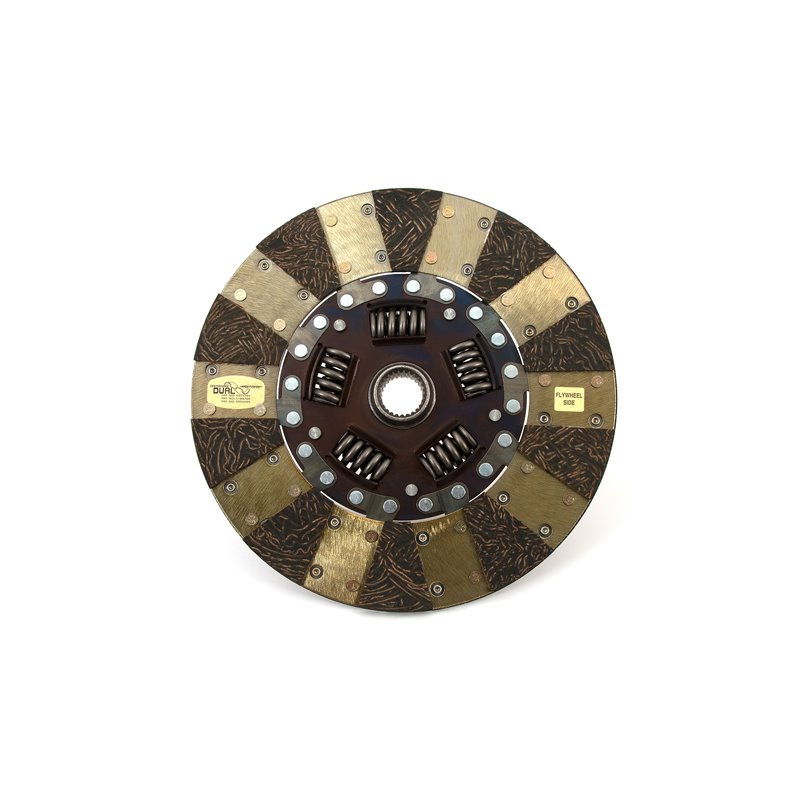

The Centerforce Dual Friction Clutch Kit (part# DF148552) is designed for Chevrolet Camaro, Corvette, and Monte Carlo, and Pontiac Firebird and GTO with manual transmission (1967-1981). The patented Dual Friction disc features an organic full facing on one side for longevity and an organic segmented facing on the other for increased holding capacity. Nodular iron pressure plate with patented centrifugal weights. 622 lb-ft torque capacity, 11 in. sprung disc, 26 splines (optional 1-1/8 in.-26 spline for Muncie/GTO), 3-bolt pattern, flywheel deck height 2.090 in. Some applications require a Muncie transmission. Fits Chevrolet Camaro/Corvette/Monte Carlo and Pontiac Firebird/GTO 1967-1981 (see Application section).

Specifications

• Brand / Manufacturer: Centerforce
• Part Number: DF148552
• Category: Clutch Kit – Dual Friction
• Torque Capacity: 622 lb-ft
• Clutch Disc Diameter: 11 in.
• Input Spline Quantity: 26
• Material: Nodular Iron / Full Face & Segmented Organic Friction
• Disc Type: Full face / Segmented face (sprung)
• Clutch Bolt Pattern: 3-bolt
• Flywheel Step Type: Flat
• Flywheel Deck Height: 2.090 in.
• Counterweight Assist: Yes
• Compatibility: Chevrolet Camaro/Corvette/Monte Carlo & Pontiac Firebird/GTO 1967-1981 (See Application Section)
• Condition: New
• Sold and shipped by GBP Performance
