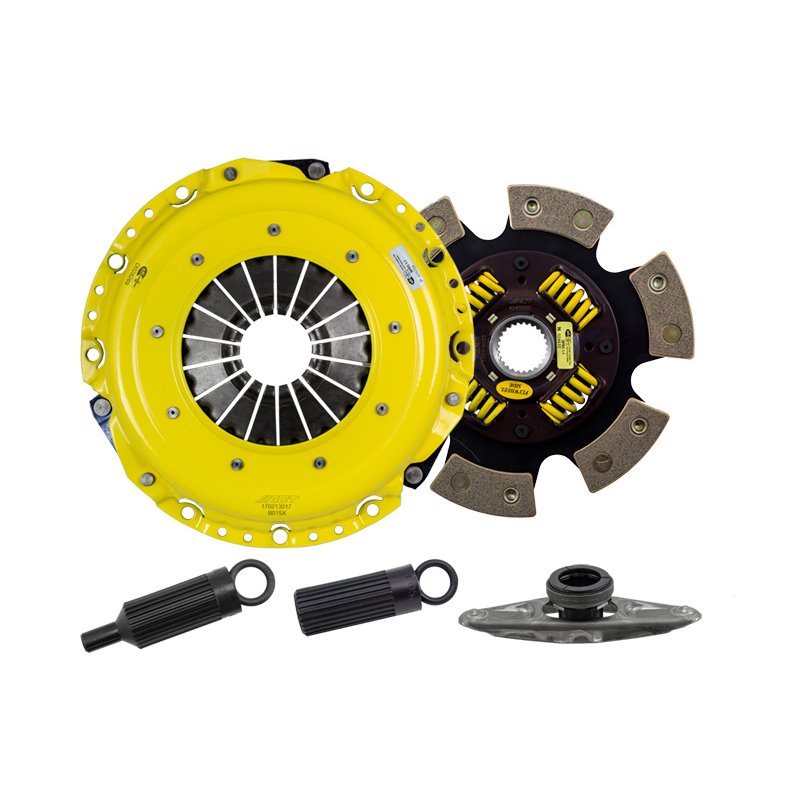

ACT | XT/Race Sprung 6 Pad - BMW 3.0T 2007-2016

Name: ACT | XT/Race Sprung 6 Pad - BMW 3.0T 2007-2016
Brand: ACT
SKU: BM14-XTG6
Price: 1308.80 CAD
Availability: InStock

Part #: BM14-XTG6

BM14-XTG6 kit features an Xtreme pressure plate for the most demanding driver.

Free Shipping

CAD $1,308.80 CAD $1,539.77 Save 15% - FLASH SALE

Delivery in 2 to 3 weeks

PROUDLY CANADIAN
BEST PRICE GUARANTEE
GUARANTEED FITMENT

ACT - XT/Race Sprung 6 Pad

Description

BM14-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat. Excellence in Performance, backed by the best one-year warranty in the industry!

Characteristics

Part Fitment Requirement: Must be used with ACT flywheel.
Product Weight (lbs.): 16.5
Disc Type: Sprung
Torque Capacity (ft/lbs.): 702
Torque Capacity Over OE: 1,29
Pressure Plate Type: Xtreme
Clutch Disc Diameter: 9.4 IN
Clutch Disc Diameter: 240 MM
Disc Material: Ceramic
Input Spline Quantity: 26
Input Shaft Diameter: 1.375 IN
Alignment Tool Included: Yes

Attributs

Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle
Moderate friction life, extended by ACT's exclusive diaphragm design
Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
Recommended for high horsepower street or race use
100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Note:

Livraison GRATUITE / FREE Delivery

BMW

2008-2009 135i Base L6 3.0L Turbo SEE NOTE12
2009-2013 135i Base L6 3.0L Turbo SEE NOTE3
2009-2013 135i Base L6 3.0L Turbo SEE NOTE4
2007-2009 335i Base L6 3.0L Turbo SEE NOTE12
2008-2009 335i M Sport L6 3.0L Turbo SEE NOTE12
2009-2011 335i Base L6 3.0L Turbo SEE NOTE6
2009-2013 335i Base L6 3.0L Turbo SEE NOTE7
2009-2013 335i Base L6 3.0L Turbo SEE NOTE8
2012-2015 335i Base L6 3.0L Turbo SEE NOTE10
2009 335i xDrive Base L6 3.0L Turbo SEE NOTE12
2009-2011 335i xDrive Base L6 3.0L Turbo SEE NOTE6
2009-2013 335i xDrive Base L6 3.0L Turbo SEE NOTE7
2013-2015 335i xDrive Base L6 3.0L Turbo SEE NOTE10
2011-2013 335is Base L6 3.0L Turbo SEE NOTE7
2011-2013 335is Base L6 3.0L Turbo SEE NOTE8
2007-2008 335xi Base L6 3.0L Turbo SEE NOTE12
2014-2016 435i Base L6 3.0L Turbo SEE NOTE11
2014-2016 435i xDrive Base L6 3.0L Turbo SEE NOTE11
2008-2009 535i Base L6 3.0L Turbo SEE NOTE12
2009-2010 535i Base L6 3.0L Turbo SEE NOTE1
2010 535i Base L6 3.0L Turbo SEE NOTE2
2011-2014 535i Base L6 3.0L Turbo SEE NOTE9
2009 535i xDrive Base L6 3.0L Turbo SEE NOTE12
2009-2010 535i xDrive Base L6 3.0L Turbo SEE NOTE1
2009-2010 535i xDrive Base L6 3.0L Turbo SEE NOTE2
2008 535xi Base L6 3.0L Turbo SEE NOTE12
2009-2016 Z4 sDrive35i L6 3.0L Turbo SEE NOTE5

Note 1: Cylinder Head: DOHC; Manufacturer Body Code: E60;Transmission Control Type: Manual
Note 2: Cylinder Head: DOHC; Manufacturer Body Code: E61;Transmission Control Type: Manual
Note 3: Cylinder Head: DOHC; Manufacturer Body Code: E82;Transmission Control Type: Manual
Note 4: Cylinder Head: DOHC; Manufacturer Body Code: E88;Transmission Control Type: Manual
Note 5: Cylinder Head: DOHC; Manufacturer Body Code: E89;Transmission Control Type: Manual
Note 6: Cylinder Head: DOHC; Manufacturer Body Code: E90;Transmission Control Type: Manual
Note 7: Cylinder Head: DOHC; Manufacturer Body Code: E92;Transmission Control Type: Manual
Note 8: Cylinder Head: DOHC; Manufacturer Body Code: E93;Transmission Control Type: Manual
Note 9: Cylinder Head: DOHC; Manufacturer Body Code: F10;Transmission Control Type: Manual
Note 10: Cylinder Head: DOHC; Manufacturer Body Code: F30;Transmission Control Type: Manual
Note 11: Cylinder Head: DOHC; Manufacturer Body Code: F32;Transmission Control Type: Manual
Note 12: Transmission Control Type: Manual

Brand: ACT

Reference: BM14-XTG6

UPC: 842385025137

Data sheet

Flywheel Included: No
Pressure Plate Type: Xtreme
Disc Type: Sprung
Disc Material: Ceramic
Pad Quantity: 6
Product Weight (lbs.): 16.5
Torque Capacity over OE ( % ): 129
Torque Capacity (ft/lbs.): 702
