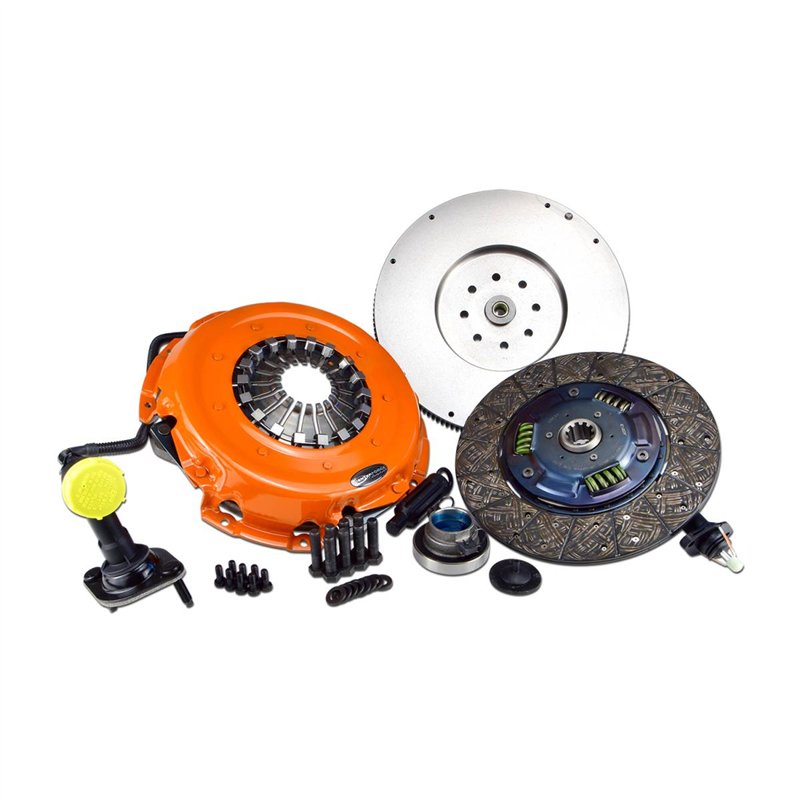

Centerforce | Centerforce(R) II, Clutch Pressure Plate and Disc Set - Ram 2500 / 3500 5.9L / 6.7L 2005-2018

Centerforce - Transmission Clutch and Flywheel Kit

Description

The Centerforce(R) II Clutch Series utilizes a full facing disc with premium friction material and a pressure plate with centrifugal weights (where applicable). Furthermore, static clamp load is increased via our patented machining processes; this combination allows superb holding power and maximum clutch life, making this clutch ideal for selected street/strip, off-road and towing applications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce II Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.

Characteristics

• Alignment Tool Included: Yes
• Clutch Bolt Pattern: 23
• Clutch Disc Diameter: 13 IN
• Clutch Disc Diameter: 330.2 MM
• Counterweight Assist: Yes
• Crankshaft Bolt Hole Quantity: 8
• Disc Material: Organic
• Disc Quantity: 1
• Disc Type Sprung Solid: Sprung
• Disc Type: Full Face
• Flywheel Counter Balance Weight: 0
• Flywheel Crank Bolt Size: 12
• Input Shaft Diameter: 36958 IN
• Input Spline Quantity: 10
• Material: Cast Iron Pressure Plate / Organic Friction
• Mounting Hardware Included: Yes
• Pilot Bushing Included: Yes
• Release Bearing Included: Yes
• Ring Gear O.D.: 15.625 IN
• Tooth Quantity: 152
• Torque Capacity: 800
