ACT | HD/Race Sprung 6 Pad - FR-S / BRZ / 86 2.0L 2013-2020

ACT – HD/Race Sprung 6-Pad Clutch Kit

Description

The ACT SB8-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use an exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage heat-treating process for unparalleled performance. ACT's 6-pad spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to reduce stress concentrations and increase strength and reliability. Uses select ceramic friction materials for high heat tolerance and maximum performance. 100% clamp load tested and dynamically computer balanced. Compatible with Scion FR-S, Subaru BRZ, and Toyota 86 H4 2.0L.

Specifications

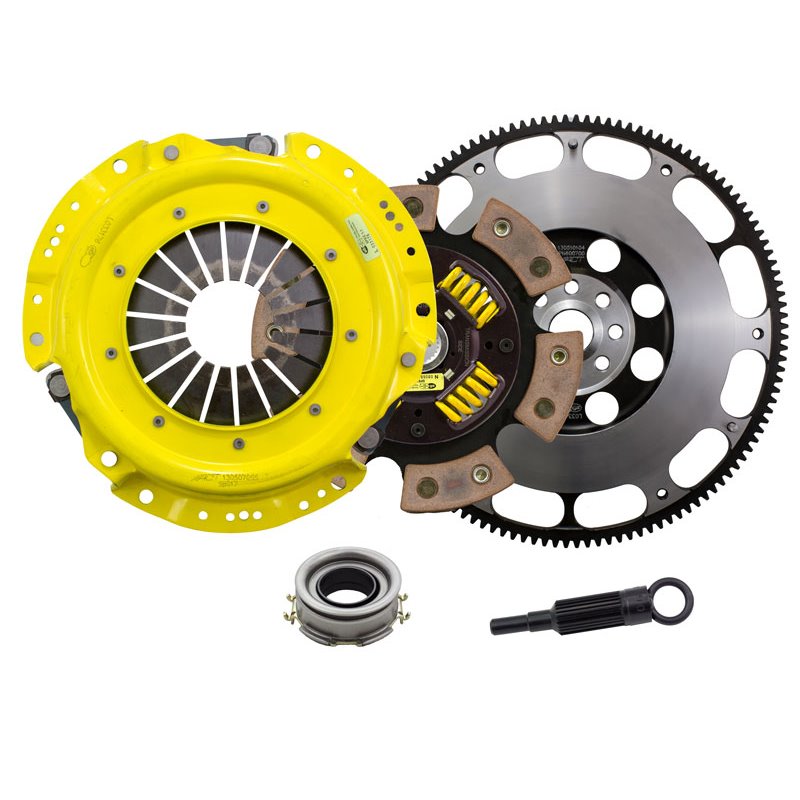

• Kit Contents: ACT flywheel (600475) + Heavy Duty pressure plate (SB024) + 6 Pad Race Sprung disc (6228218-1) + alignment tool (AT90) + release bearing (RB004) + pilot bearing (PB1004)
• Brand: ACT (Advanced Clutch Technology)
• Part Number: SB8-HDG6 (See Application Section)
• Type: Clutch Kit – Heavy Duty Pressure Plate + 6-Pad Sprung Race Disc
• Friction Material: Select ceramic, high heat tolerance
• Pressure Plate: Exclusive diaphragm design, increased clamp load
• Heat Treatment: 4-stage process on all diaphragms
• Disc: 6-pad spring-centered, optimized torsional dampening
• Pedal Feel: Light to moderate effort, aggressive engagement
• Recommended Use: High horsepower street or race
• Compatibility: Scion FR-S / Subaru BRZ / Toyota 86 H4 2.0L (See Application Section)
• Condition: New
• Sold and shipped by GBP Performance
