ICON | 250 SERIES FRONT 2.5 VS RR CDXS COILOVER KIT - Land Cruiser 2.4T 2024-2025

ICON - Coilover Set

Description

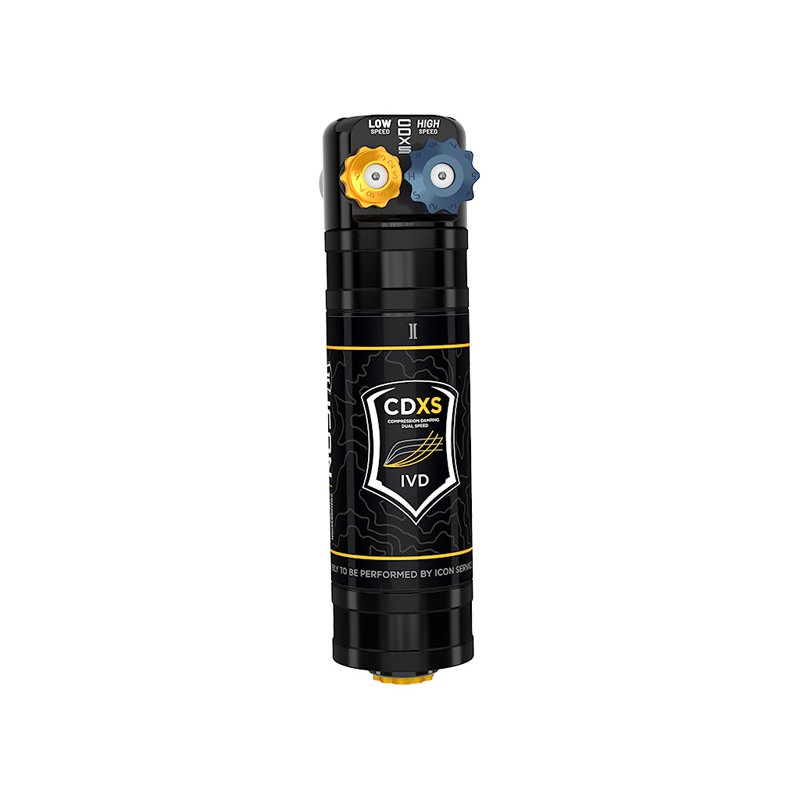

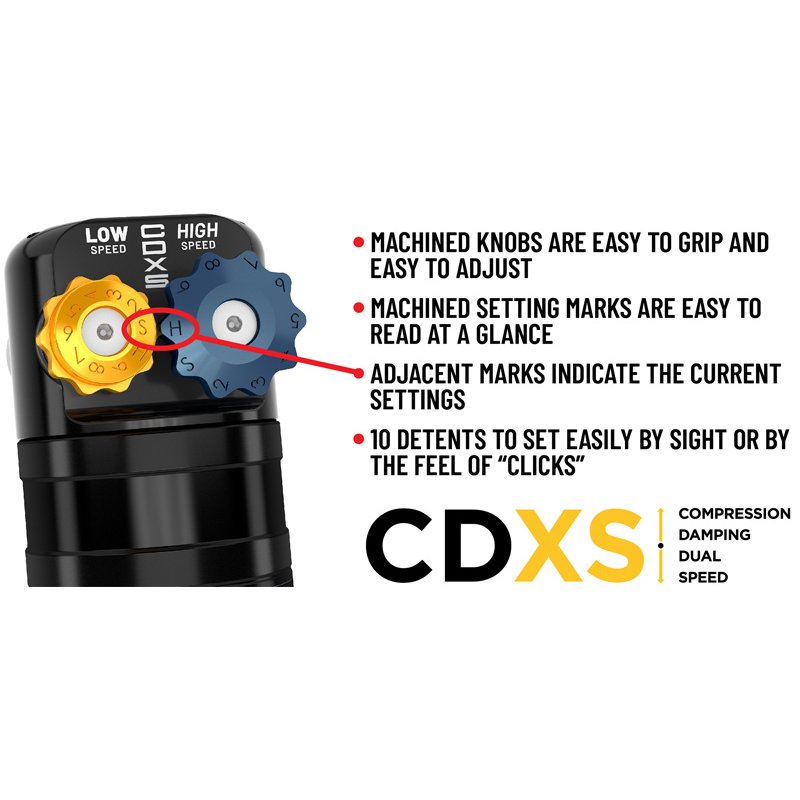

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2024-2025 Toyota Land Cruiser 250 Series. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Land Cruiser.

Characteristics

• 10107: 550
• 10527: Yes
• 10528: Yes
• 10530: Passive
• 10535: 3 IN
• 2064: Steel
• 2329: Steel
• 306: Yes
• 3085: Single Tube
• 3096: Black
• 3390: Performance
• 7233: No
• 8703: No
• 9476: Yes
• 9783: No
• Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Add-On Part: 55160 - 24-25 TACOMA 4WD/24-25 LC250/25 T4R 4WD FRONT DIFF DROP KIT
• Add-On Part: 58452DJ - 24-25 TACOMA/24-25 LC250/24-25 GX550/25 T4R TUBULAR UCA DJ PRO KIT
• Add-On Part: 58552DJ - 24-25 TACOMA/24-25 LC250/24-25 GX550/25 T4R BILLET UCA DJ PRO KIT
• Add-On Part: 58552GDJ - 24-25 TACOMA/24-25 LC250/24-25 GX550/25 T4R BILLET UCA DJ PRO KIT GOLD ANO
• Adjustable Damping: Yes
• Body Diameter: 2.5 IN
• Coil Over Springs Included: Yes
• Compressed Length: 19.2 IN
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Damping Adjustment Type: Dual Speed/Manual
• Damping Type: Oil
• Dust Shield: No
• Extended Length: 24.85 IN
• Gas Charged: Yes
• Lower Mount Type: Eyelet
• Material: Aluminum
• Material: Steel
• Maximum Lift: 3 IN
• Minimum Lift: 1.25 IN
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 5.75” Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.00” Backspace / 25mm Offset
• Reservoir Style: Remote
• Self-Leveling: No
• Shaft Diameter: 0.875 IN
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center of Eyelet
• Spring Rate Type: Linear
• Travel Length: 5.65 IN
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive
• 10107: 550
• 10527: No
• 10528: Yes
• 10530: Passive
• 10535: 3 IN
• 2064: Steel
• 2329: Steel
• 306: Yes
• 3085: Single Tube
• 3096: Black
• 3390: Performance
• 7233: No
• 8703: No
• 9476: Yes
• 9783: Yes
• Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Add-On Part: 55160 - 24-25 TACOMA 4WD/24-25 LC250/25 T4R 4WD FRONT DIFF DROP KIT
• Add-On Part: 58452DJ - 24-25 TACOMA/24-25 LC250/24-25 GX550/25 T4R TUBULAR UCA DJ PRO KIT
• Add-On Part: 58552DJ - 24-25 TACOMA/24-25 LC250/24-25 GX550/25 T4R BILLET UCA DJ PRO KIT
• Add-On Part: 58552GDJ - 24-25 TACOMA/24-25 LC250/24-25 GX550/25 T4R BILLET UCA DJ PRO KIT GOLD ANO
• Adjustable Damping: No
• Body Diameter: 2.5 IN
• Boot Included: No
• Coil Over Springs Included: Yes
• Compressed Length: 19.2 IN
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Damping Type: Oil
• Extended Length: 24.85 IN
• Gas Charged: Yes
• Lower Mount Type: Eyelet
• Material: Aluminum
• Material: Steel
• Maximum Lift: 3 IN
• Minimum Lift: 1.25 IN
• OEM Wheels & Tires Fitment: Yes
• Reservoir Style: Remote
• Self-Leveling: No
• Shaft Diameter: 0.875 IN
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center of Eyelet
• Spring Rate Type: Linear
• Travel Length: 5.65 IN
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive

Attributs

• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
• Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
• Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock
• 2.5" diameter shock bodies with remote reservoirs
• Remote reservoirs maintain cooler operating temperatures during extended off-road use

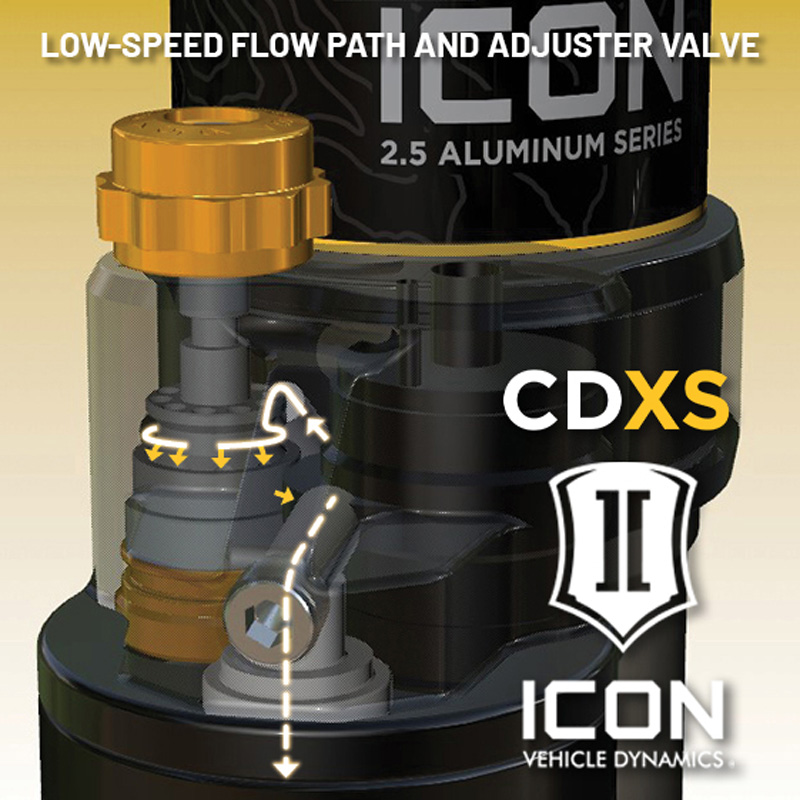

• ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable
