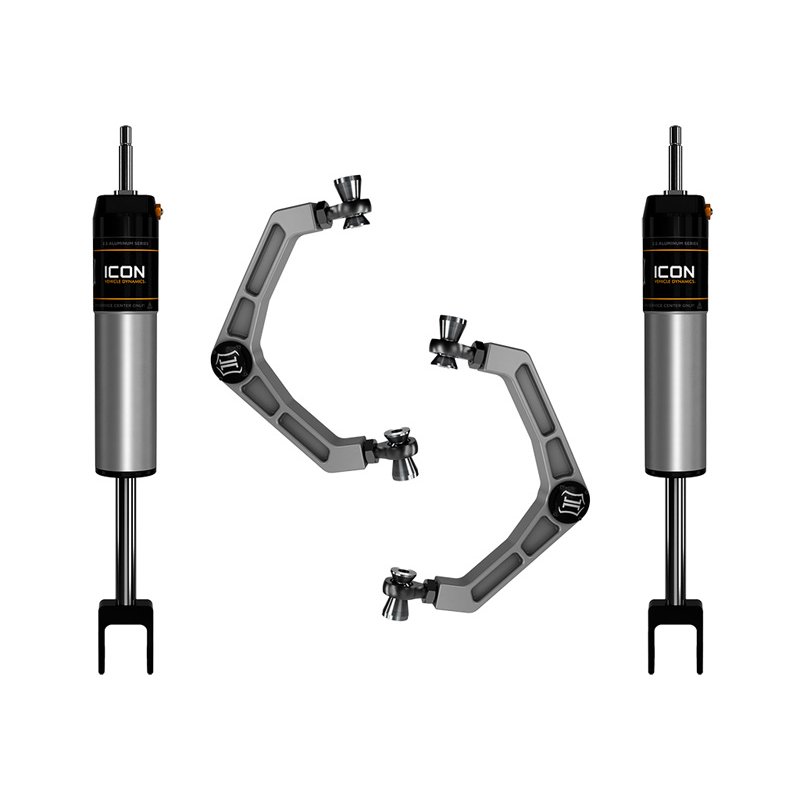

ICON | 0-2" IR SHOCK SYS W/ BILLET UCA - Silverado / Sierra 2500 HD / 3500 HD 6.6L 2020-2022

ICON - Suspension Control Arm Kit

Description

Take the performance of your 2020-Up GM HD truck to new levels with the ICON Vehicle Dynamics Delta Joint billet upper control arm kit. These are constructed of CNC machined 6061 billet aluminum merging light weight with high strength properties. FK Rod End 3/4” heim joints provide precise and smooth function throughout the range of travel while also allowing for additional camber and caster adjustment for optimal alignment specifications and confidence inspiring handling. A main benefit of ICON upper control arms is the increased wheel travel when paired with our 2.5 series shock absorbers, this translates into superior performance and ride quality for your 2020-Up GM HD.

Characteristics

• 2330: Yes
• 2339: yes
• 2354: Performance
• 2371: Yes
• 2382: Press In
• 2383: Threaded
• 2384: Yes
• 2389: Aluminum
• 30: Yes
• 3390: Performance
• 40: No
• 4888: Silver
• 73: Rod End Bearing
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• Add-On Part: 77202 - 20-UP GM HD FRONT SPLASH GUARD KIT
• Adjustable Control Arm: yes
• Bushing Color: Gold
• Control Arm Construction: Billet
• Finish: Anodized
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.5” Backspace / 12mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.5” Backspace / 12mm Offset
• Service Parts: 614520 - DELTA JOINT INSTALL ADAPTER AND SHIM

Attributs

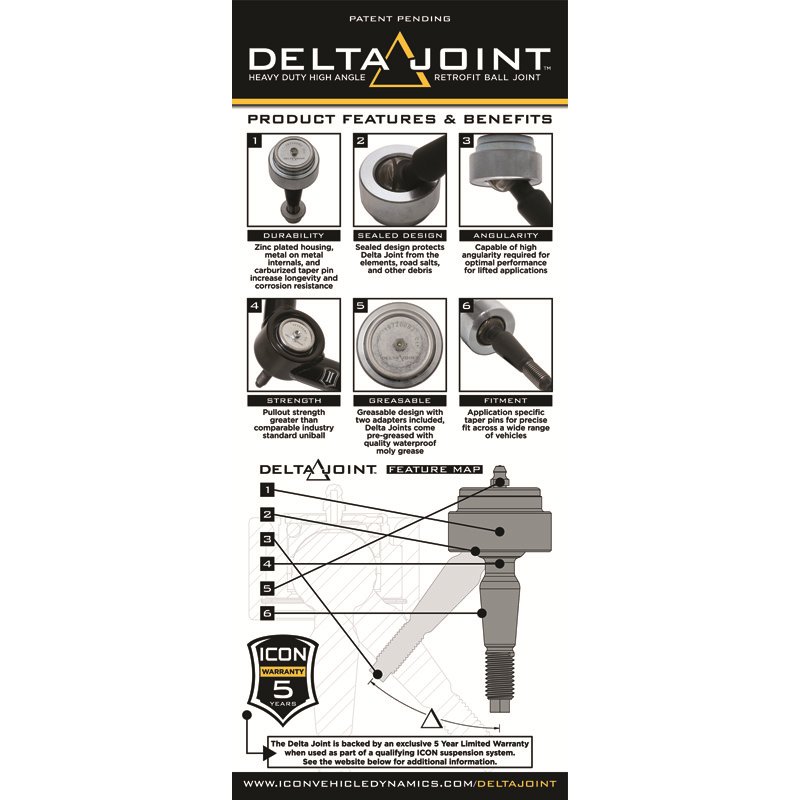

• Features ICON's Patented Delta Joint (U.S. Patent No. 10,731,700)
• 100% Rebuildable
• 100% Revalveable
• CNC machined 6061 billet aluminum construction for light weight and exceptional strength
• Additional camber and caster adjustability allows for precise wheel alignment
• PTFE Lined 7/8” FK Rod Ends for improved response
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• Nitrogen charged monotube design with internal reservoir
• Built in o-ring sealed dust cover cap
• Vehicle specific taper pin provides OE-like fitment
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• 7/8" diameter induction hardened, chrome plated shock shaft
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
