ICON | TUBULAR UCA DJ KIT - Colorado 2.7T 2023-2024

ICON - Suspension Control Arm Kit

Description

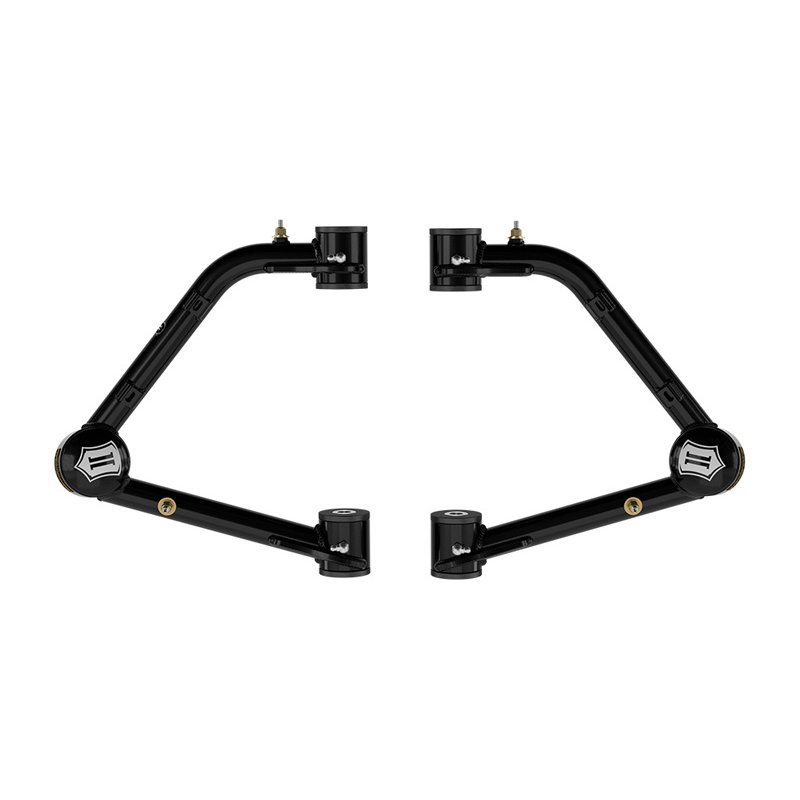

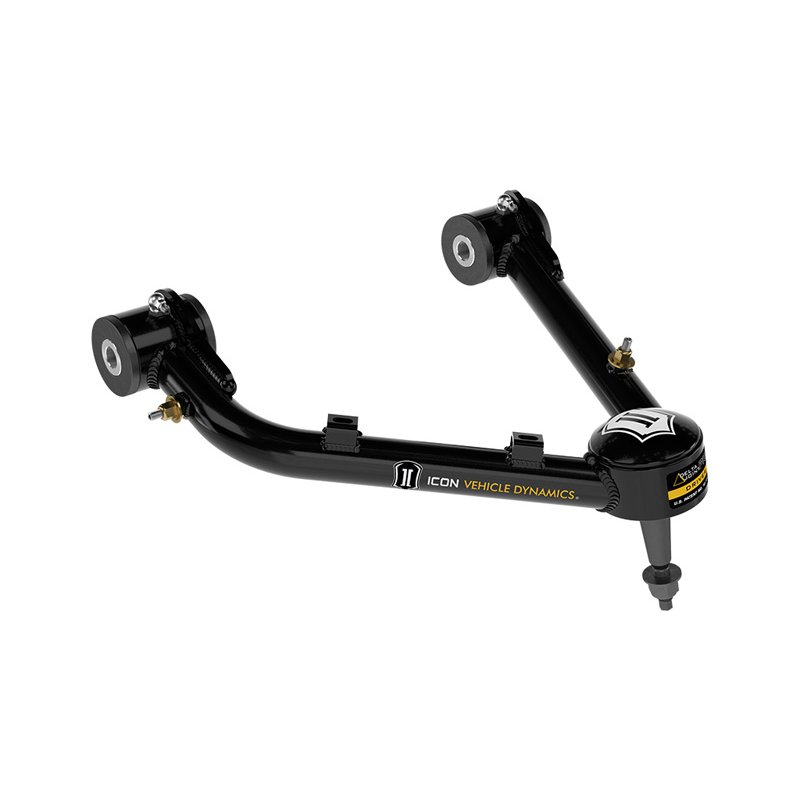

These tubular steel upper control arms free up your 2023-2024 Chevrolet Colorado WT, LT, or Z71's front suspension movement to allow maximum travel for performance shocks and coilovers at an easier price point compared to our range-topping billet components. Specifically designed for the narrower track width of these Colorado submodels with additional caster built in to correct geometry to allow for better front-end alignment on lifted vehicles. The all-new Delta Joint PRO provides a host of durability and performance improvements compared to our standard Delta Joints, including up to 90° of free articulation to maximize suspension travel without bind. It’s also larger and fully rebuildable. The Delta Joint PRO’s grease fitting is protected by an anodized billet aluminum dust cap, included with the kit. Serviceable Heavy Duty Dual Stage bushings at the frame pivots are greaseable and rebuildable, and fit into precision machined bushing housings to ensure a responsive driving experience. ICON Tubular Upper Control Arms are constructed of heavy wall DOM tubing, CNC formed and fixture welded before receiving our multi-stage black powder coat finish. Includes all components and hardware necessary for a complete install, these tubular UCAs are the perfect front end upgrade for the 2023-2024 Chevrolet Colorado WT, LT, or Z71.

Characteristics

• 1260: Yes
• 158: Tubular
• 2330: Yes
• 2339: yes
• 2354: Performance
• 2371: Yes
• 2382: Press In
• 2383: Threaded
• 2384: Yes
• 2386: Tubular
• 2389: DOM Steel
• 30: Yes
• 3390: Performance
• 40: No
• 4888: Black
• 73: Polyurethane
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• Adjustable Control Arm: No
• Bushing Color: Black
• Color: Black
• End 1 Type: Bushing
• End 2 Type: BALL JOINT
• Finish: Powdercoat
• Material: DOM Steel
• OEM Wheels & Tires Fitment: Yes
• Quantity: Pair
• Recommended Aftermarket Tires: 33" x 12.50"
• Recommended Aftermarket Wheels: 17x8.5" w/ 5.46” Backspace / 18mm Offset
• Service Parts: 614531 - 78660DJ / 78661DJ REPLACEMENT BUSHING AND SLEEVE KIT

Attributs

• Built in added caster for better handling on lifted vehicles
• Delta Joint PRO allows maximum articulation without binding
• Delta Joint PRO is 100% serviceable and rebuildable
• Serviceable dual stage pivot bushings
• CNC machined housings for bushings and Delta Joint PRO
• 1026 DOM tube construction with black powder coat finish
• Includes billet dust caps for Delta Joint PRO
