ICON | BILLET UCA DJ PRO KIT - Colorado / Canyon 2.7T 2023-2024

ICON - Suspension Control Arm Kit

Description

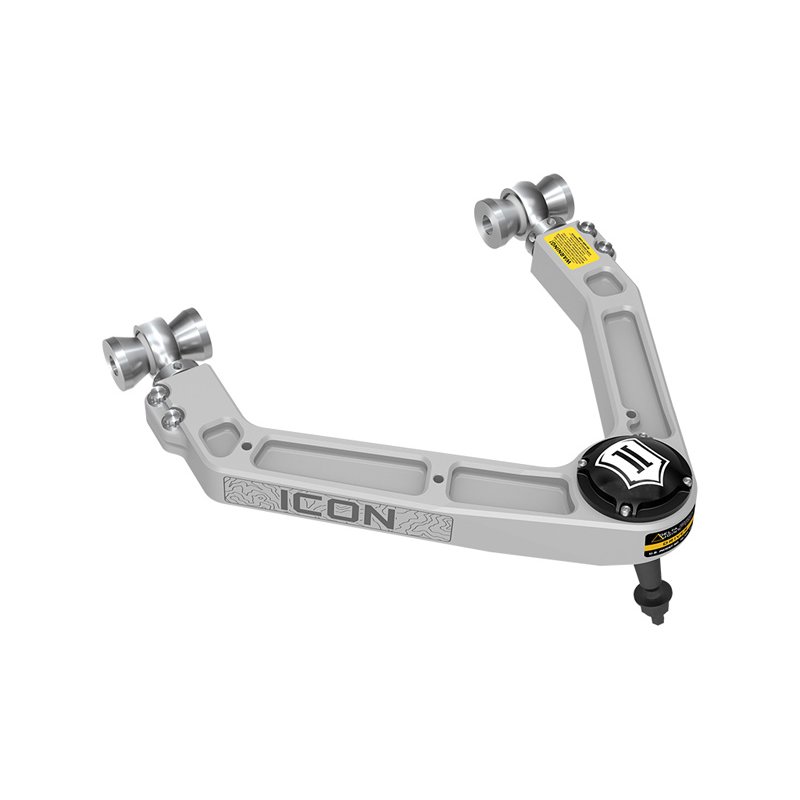

This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the 2023-2024 GMC Canyon/Chevrolet Colorado Trail Boss or ZR2 with corrected front-end geometry, increased camber and caster adjustment, and improved suspension component clearance. Constructed of CNC machined 6061 billet aluminum utilizing a hybrid H-beam cross-section that is light-weight and resists bending forces better than tubular arms. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 3/4” heim joints provide precise and smooth function throughout the range of travel while ICON’s signature double adjuster sleeve allows for on-vehicle camber and caster adjustment. Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect front end upgrade for the 2023-2024 GMC Canyon/Chevrolet Colorado Trail Boss or ZR2.

Characteristics

• 10: Aluminum
• 1260: Yes
• 2330: Yes
• 2339: yes
• 2354: Performance
• 2371: Yes
• 2382: Press In
• 2383: Threaded
• 2384: Yes
• 2389: Aluminum
• 30: Yes
• 3390: Performance
• 40: Yes
• 4888: Silver
• 73: Rod End Bearing
• 9617: Spring
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• Adjustable Control Arm: yes
• Bushing Color: Silver
• Color: Gray
• Construction: Billet
• Control Arm Construction: Billet
• End 1 Type: Rod End Bearing
• End 2 Type: BALL JOINT
• Finish: Anodized
• OEM Wheels & Tires Fitment: Yes
• Quantity: Pair
• Recommended Aftermarket Tires: 33" x 12.50"
• Recommended Aftermarket Wheels: 17x8.5" w/ 5.46” Backspace / 18mm Offset

Attributs

• CNC machined 6061 billet aluminum construction with satin anodized finish
• Corrects suspension geometry and allows for proper wheel alignment on trucks with up to 2.5” of lift
• Quick, precise, on-vehicle adjustment for both caster and camber
• Delta Joint PRO allows maximum articulation without binding
• Delta Joint PRO is 100% serviceable and rebuildable
• FK Rod Ends at chassis pivots for strength and precision driving characteristics
• Built in O-ring sealed dust cover cap
