Edelbrock | Engine Cylinder Head - 5.0L 1976-1990

Edelbrock - Engine Cylinder Head

Description

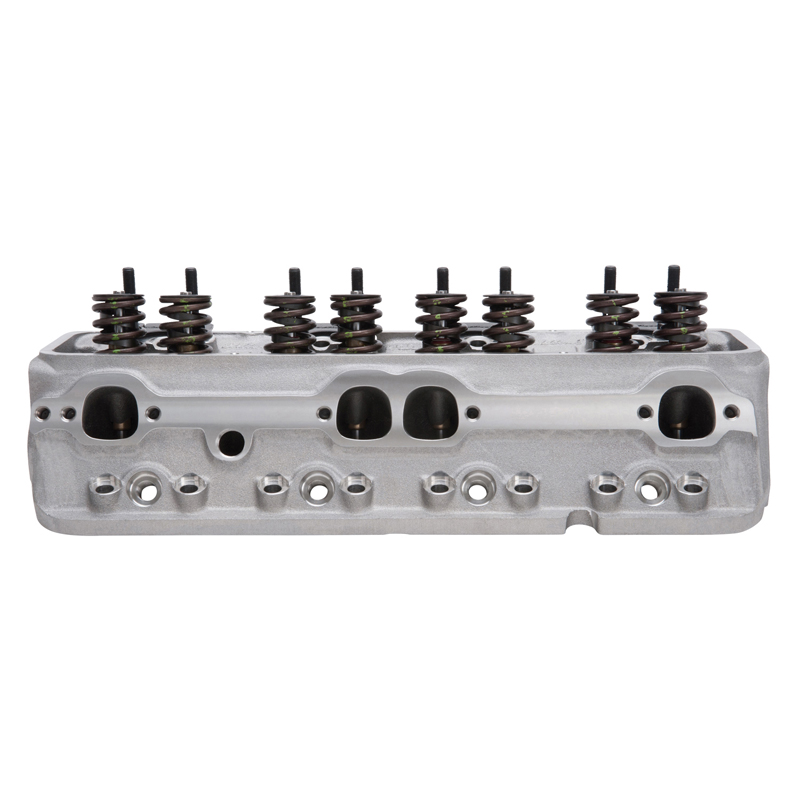

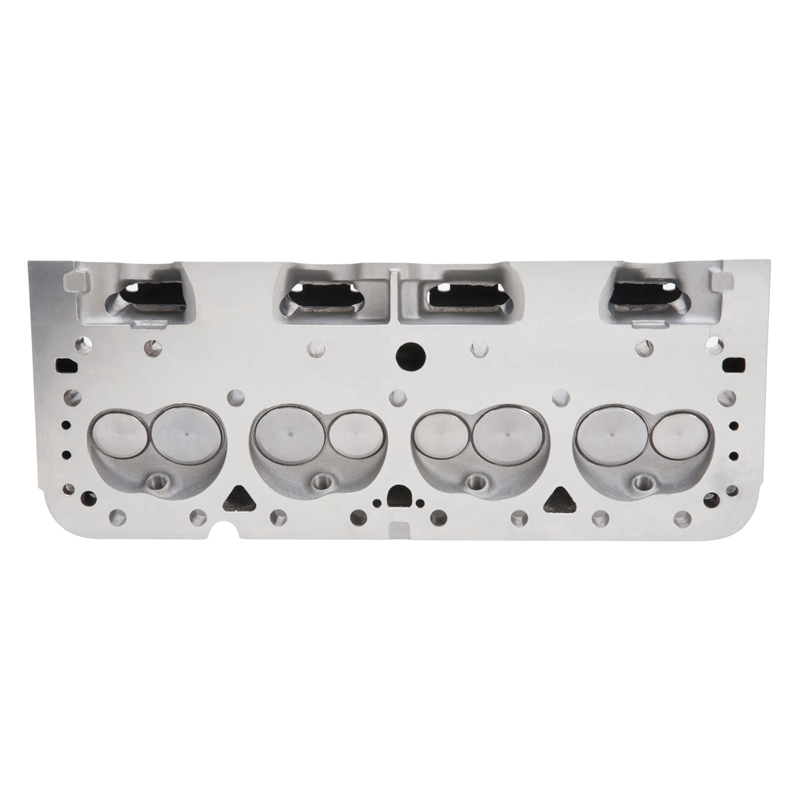

Edelbrock part #61019 Performer RPM complete cylinder head is designed for 1955-86 Small-Block Chevy applications that are perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. Cylinder Head Specifications: - Exhaust port location: Stock - Spark plug fitment: 14mm x 3/4 reach, gasket seat

Characteristics

• Valve Stem Diameter: 0.3125 IN
• Camshaft Type: Flat Tappet
• Guide Plates Included: Yes
• CNC Ported: No
• Exhaust Runner Volume: 62
• Grade Type: Performance
• Push Rod Diameter: (Suggested) 0.3125 IN
• Intake Runner Volume: 170
• Valve Spring Maximum Lift: 0.575 IN
• Valve Angle: 23
• Rocker Arm Stud Diameter: 0.375 IN
• Material: Aluminum
• Deck Thickness: 0.5625 IN
• Exhaust Valve Diameter: 1.50 IN
• Valve Springs Included: Yes
• Construction Type: Complete
• Intake Valve Diameter: 1.91 IN
• Quantity: Sold Individually
• Horsepower: 250-425
• Retainer Included: Yes
• Valve Included: Yes
• Guide Plate Material: Hardened Steel
• EGR Port: No
• Exhaust Port Location: Standard
• Series: Performer RPM
• Family: Performer RPM
• Seat Material: Ductile Iron
• Combustion Chamber Volume: 60
• Head Casting Number: N/A
• Seat Angle: Exhaust 45 deg/Intake 45
• Guide Material: Manganese Bronze
• RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Rotor Center Bore Inside Diameter: Straight
• Valve Spring Diameter: 1.46 IN
