Edelbrock | NHRA RB/ B Big-Block Cylinder Head - 1969-1978

Edelbrock - Engine Cylinder Head

Description

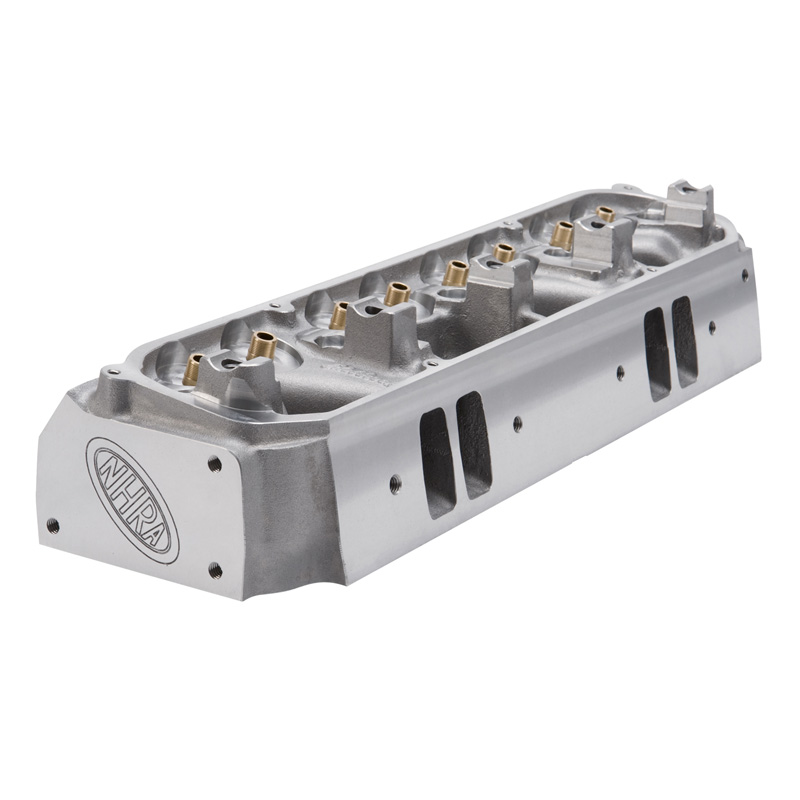

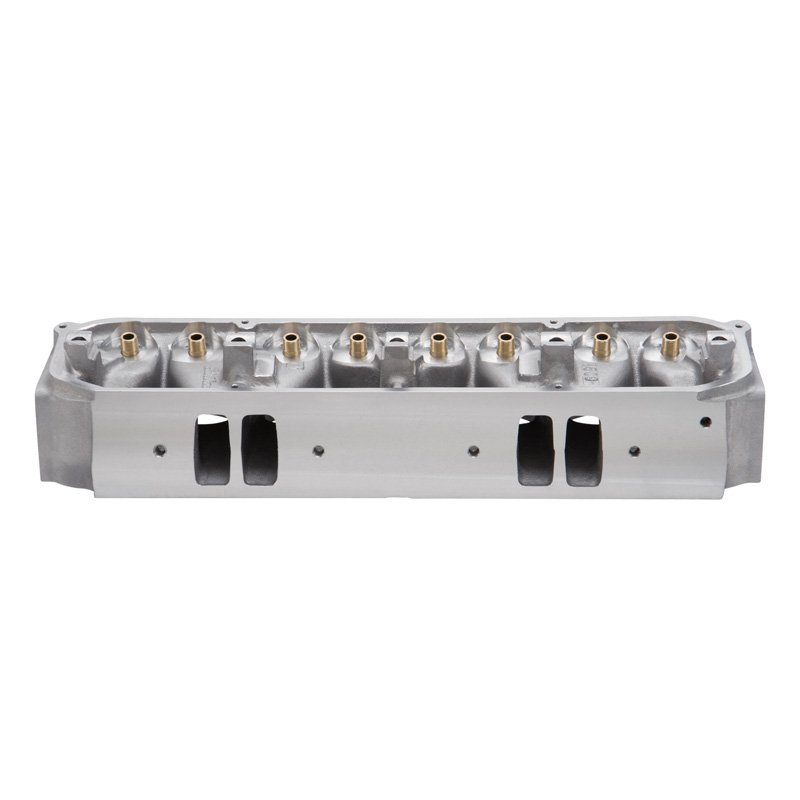

The Edelbrock #60919 Performer RPM NHRA Stock/Super Stock Bare cylinder head is designed for 1961-79 Chrysler 361-440 c.i.d. Wedge engine applications. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. Cast and heat treated at the Edelbrock Foundry and machined at Edelbrock's manufacturing facility in the USA, the Edelbrock head is the best in quality and performance. All Edelbrock cylinder head is designed from scratch using the latest in computer technology by our own highly skilled engineer's. Using highly efficient ports and state-of-the-art combustion chamber shapes, Edelbrock cylinder head offers improved performance throughout the rpm range for great throttle response and top-end horsepower. Top-quality features include threaded inserts in rocker stud and exhaust bolt holes for superior strength and durability, and manganese-bronze valve guides with ductile iron valve seats. These are features that some other companies don't include!

Characteristics

• 10: Aluminum
• 10024: No
• 10025: No
• 10261: No
• 10582: No
• 10583: No
• 10671: No
• 30: No
• 306: No
• 3390: Performance
• 6621: 10.725 IN
• 6626: 84
• 6627: 210
• 6634: No
• 6635: 31-60917
• 8788: No
• 8789: No
• 9799: No
• CNC Ported: No
• Combustion Chamber Volume: 82-84
• Construction Type: Bare
• Deck Thickness: 0.625 IN
• EGR Port: No
• Exhaust Port Location: Standard
• Exhaust Runner Volume: 70
• Family: Performer RPM
• Guide Material: Manganese Bronze
• Quantity: Sold Individually
• Retainer Included: No
• RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Seat Angle: Exhaust 45 deg/Intake 45
• Seat Material: Ductile Iron
• Series: Performer RPM
• Valve Angle: 15
