B&M | Automatic Transmission Flexplate - Chevrolet / Pontiac 1997-2012

B&M – Automatic Transmission Flexplate

Description

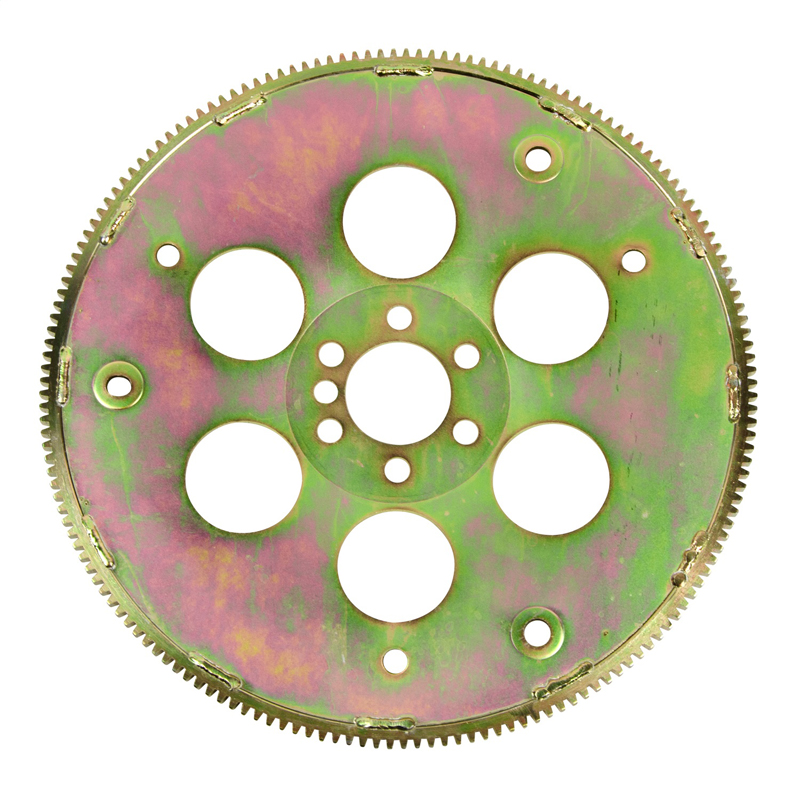

The B&M high performance flexplate (part #20340) is designed for GM LS 4.8L, 5.3L, 5.7L and 6.0L engines with a 6-bolt crankshaft flange, including the Camaro with the L99 engine. Built from high tensile strength steel, it features 10.75 and 11.06 in. converter mounting locations, a 168-tooth ring gear with double-sided welds, and SFI 29.1 certification. Zinc plated and chromate conversion coated for corrosion resistance. NHRA/IHRA legal for all classes. Note: Will not fit 1999-00 6.0L applications with 0.400 in. extended crank flange, or 1999-00 4.8L engines originally delivered with a manual transmission.

Specifications

• Brand: B&M
• Part Number: 20340
• Fitment: Camaro, Corvette, Impala, Monte Carlo (Chevrolet), Firebird, G8, Grand Prix, GTO (Pontiac) – GM LS engines (See Application Section)
• Tooth Count: 168
• Bolt Circle: 10.75 and 11.06 in. (dual)
• Outside Diameter: 14.130 in.
• Crankshaft Bolt Hole Quantity: 6
• Certification: SFI 29.1 (sticker included)
• Legal: NHRA/IHRA – all classes
• Finish: Zinc + chromate conversion coating
• Condition: New
• Sold and shipped by: GBP Performance
