AutoMeter | RPM SIGNAL ADAPTER FOR DISTRIBUTORLESS IGNITIONS

AutoMeter – RPM Signal Adapter for Distributorless Ignitions

Description

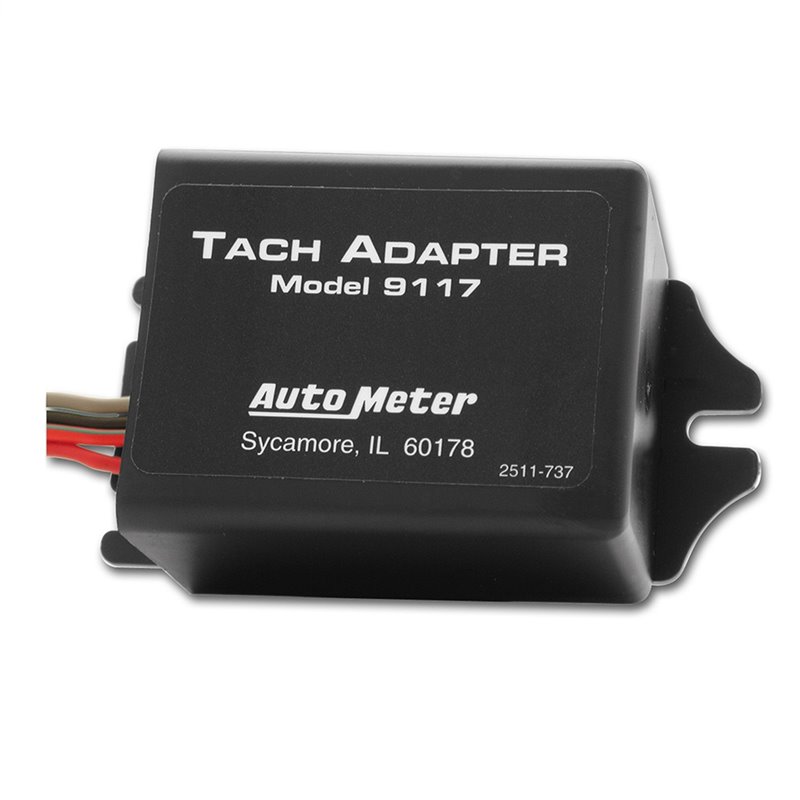

The AutoMeter RPM Signal Adapter (part 9117) is a fully potted, weatherproof module that wires into the power supply of a coil-per-cylinder ignition system, senses current, and creates a conventional 12V square wave signal output usable by AutoMeter tachometers and many aftermarket RPM-activated devices. Ideal for vehicles with late-model engine swaps and applications where conventional tachometer signals are not available. Compatible with 1–12 cylinder engines. Dimensions: 1.5 in. x 3.5 in. x 2 in.

Specifications

• Brand: AutoMeter
• Part Number: 9117
• Type: RPM Signal Adapter
• Application: Distributorless ignition, coil-per-cylinder
• Signal Output: Conventional 12V square wave
• Construction: Fully potted, weatherproof module
• Compatible Cylinders: 1 to 12
• Dimensions: 1.5 in. x 3.5 in. x 2 in.
• Compatible with: AutoMeter tachometers and aftermarket RPM-activated devices
• Compatibility: Universal
• Condition: New
• Sold and shipped by: GBP Performance
