Hedman | Mid-Length Headers For 67-81 Camaro, 68-77 A-Body 396-502 - Camaro 1967-1981

Hedman - Exhaust Header

Description

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and MID-LENGTH tube headers for Chevy passenger cars for decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Big Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.

These MID-LENGTH headers fit Big Block Chevy V8 powered, 1967-81 Chevy Camaros; 1968-1977 GM A-Body vehicles (Chevy Chevelle, El Camino, Monte Carlo, Olds Cutlass, Pontiac Grand Prix); '68-79 Chevy II and Nova. These headers are also compatible with other 1965-74 passenger cars from Chevrolet. The smooth 1-3/4 in tube design provides ample exhaust flow to let your 396-454 BB Chevy engine breathe easy, and improve horsepower and torque over stock manifolds.

These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.

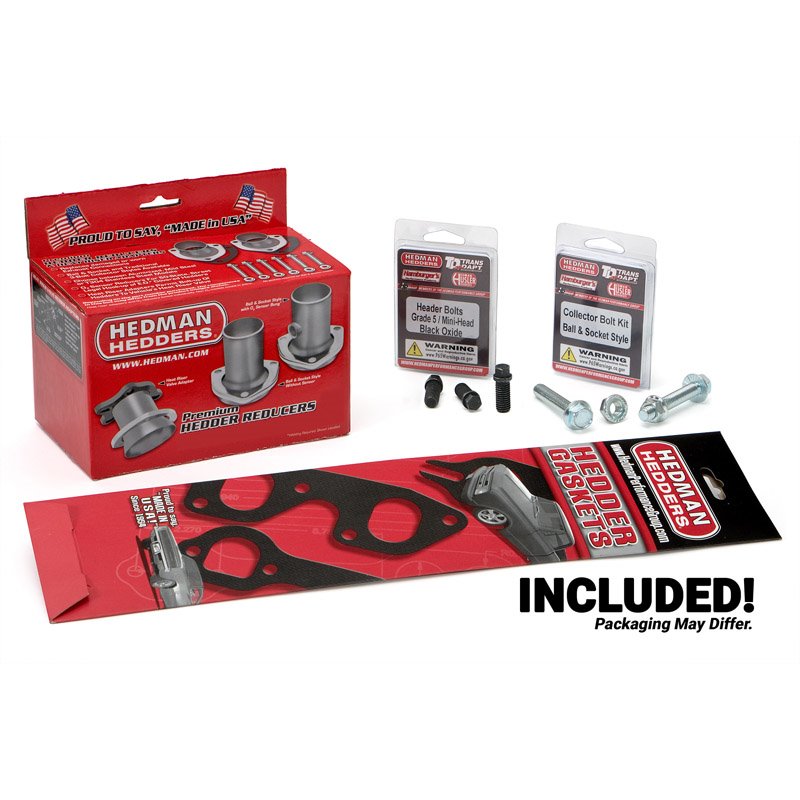

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.

Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.

Characteristics

• Air Conditioning: Yes
• Automatic Transmission - Column: No
• Automatic Transmission - Floor: Yes
• Bolts/Studs Included: Yes
• Catalytic Converter(s) Included: No
• Collector Attachment: 3 in.
• Collector Bolts Included: Yes
• Collector Diameter: 3 in.
• Collector Size: 3 in.
• Collector Style: BALL and SOCKET Style (Gasketless)
• Contents: Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions
• Crossover Pipe Included: No
• Cylinder Head Port Shape: Round
• Cylinder Head: Stock Profile Heads
• Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
• Exhaust System Dia: 2-1/2 in.
• Finish Type: UNCOATED Mild Steel! Shipped with Temporary Paint.
• Finish: Uncoated
• Flange Style: Standard
• Flange Thickness: 0.3125 in.
• Gasket Or Seal Included: Yes
• Header Construction: MILD STEEL- Standard-Duty
• Header Fasteners Included: Yes
• Header Finish: Uncoated
• Header Material: Mild Steel
• Header Port Shape: Round
• Header Style: Mid-Length Tube
• Installation Hardware Included: Yes
• Key Feature: Without A.I.R.
• Manual Transmission - Column: No
• Manual Transmission - Floor: Yes
• Material: Mild Steel
• Motor Mounts Included: No
• Mounting Hardware Included: Yes
• Notes: 67-81 F; 68-77 A; 68-79 X; 65-74 Chevy Pass. Car 396-502
• Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
• Port Shape: Round
• Power Steering: Yes
• Primary Tube Diameter (in): 1.75 in.
• Primary Tube Gauge: 16g
• Quantity: Sold as a pair.
• Reducer Outlet Size: 2-1/2 in.
• Reducers Included: Yes
• Replacement Gasket: 27530
• Replacement Head Flange Gasket: 27530
• Tube Design: Standard
• Tube Diameter: 1-3/4 in.
• Tube Length: Mid-Length Tubes
• Tube Material Thickness: 16g
• Tube Size: 1-3/4 in.
• Tube Style: Mid-Length
• Tuned: No
• Variations: 68616, 68618
• Weld-Up: No
• with A.I.R. System: No
• with EGR: No
• Y-Pipe Included: No

Attributs

• Handcrafted, Mild Steel Construction.
• The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
• Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
• Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
• Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
• Proud To Say, Made In The USA, Since 1954!
