Edelbrock | Ignition Coil

Edelbrock - Ignition Coil



Description

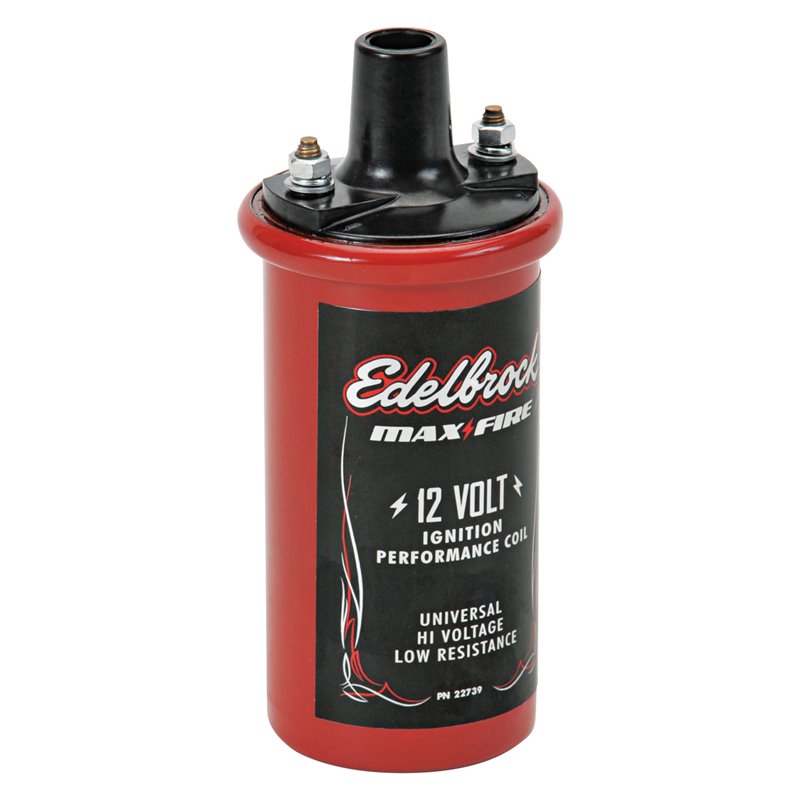

Edelbrock Ignition Coil #22739 is a universal 12-volt cannister-style coil designed as a high-quality direct bolt-on replacement for OEM ignition coils. This advanced coil has a primary resistance of 1.4 ohms with an output of 42,000 volts. Internally, each Edelbrock Coil features heavy-duty primary and secondary windings for higher energy and greater spark that can help to provide quicker starts with improved idle quality. With a durable oil-filled housing, Edelbrock Coils are resistant to heat, shock and vibration with an effective operating range of 0 to 6,500 RPM.



Caracteristics

• Material: Steel
• Terminal Type: Socket
• Mounting Hardware Included: No
• Terminal Quantity: 1
• Connector Gender: Male
• Terminal Gender: Female
• Mounting Bracket Included: No
• Voltage: 12V
• Mount Type: Plug
• Quantity: Sold Individually
• Ratio: 94:1 Turns
• Mounting Position: Cylinder Head
• Ignition Type: Distributorless
• Coil Shape: Round
• Coil Type: Canister
• Coil Wire Included: No
• Oil Filled: Yes
• Requires External Resistor: No
• Primary Resistance: 1.4
• Secondary Resistance: 9.2
• Maximum Voltage: 42000
• Maximum Effective Speed Miles Per Hour: 6500
