Description

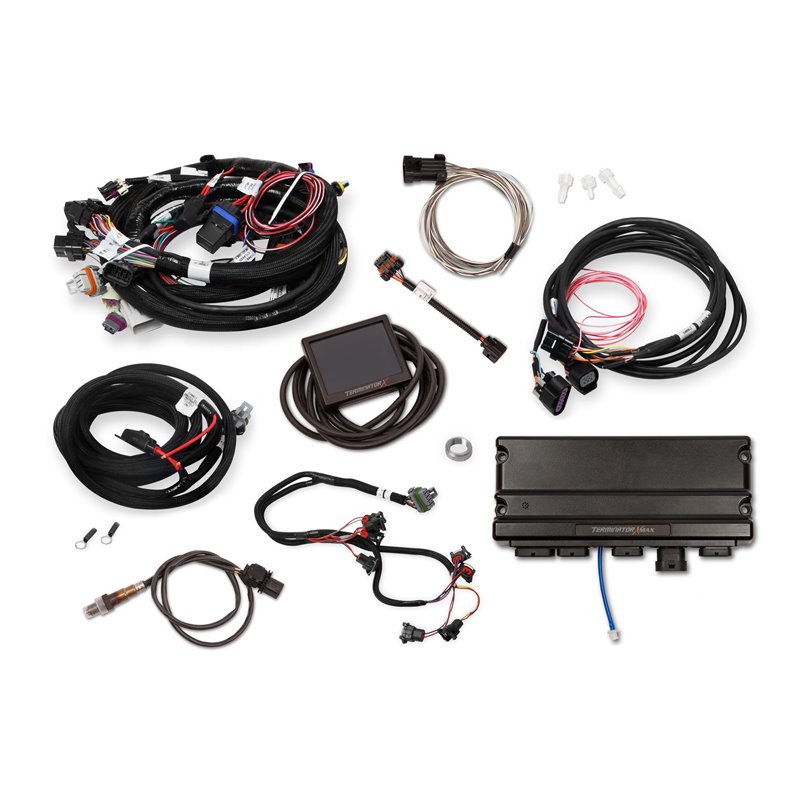

The Holley Terminator X Max (550-930) is a complete MPFI kit for LS engines with 24x crank reluctor and 1X cam sensor, designed for early generation trucks. Compatible with GM LS1/LS6 4.8L, 5.3L, and 6.0L engines, this system features real-time fuel learn, high impedance injector drivers, an integrated 1 bar MAP sensor, and 4 programmable inputs and outputs. Part number 550-930 adds Drive-By-Wire throttle body control and 4L60E or 4L80E transmission control. The programmable I/O is ideal for electric fans, boost solenoids, and progressive nitrous. Shipped with base maps for common LS configurations, the 3.5 in. LCD touchscreen includes a calibration wizard and tuning functions. The Holley EFI software suite is included for advanced laptop access.

Specifications

• Brand: Holley
• Part Number: 550-930
• Compatibility: LS 24x crank reluctor / 1X cam, early trucks, LS1/LS6 4.8/5.3/6.0L (See Application Section)
• Kit Type: MPFI (multi-point fuel injection)

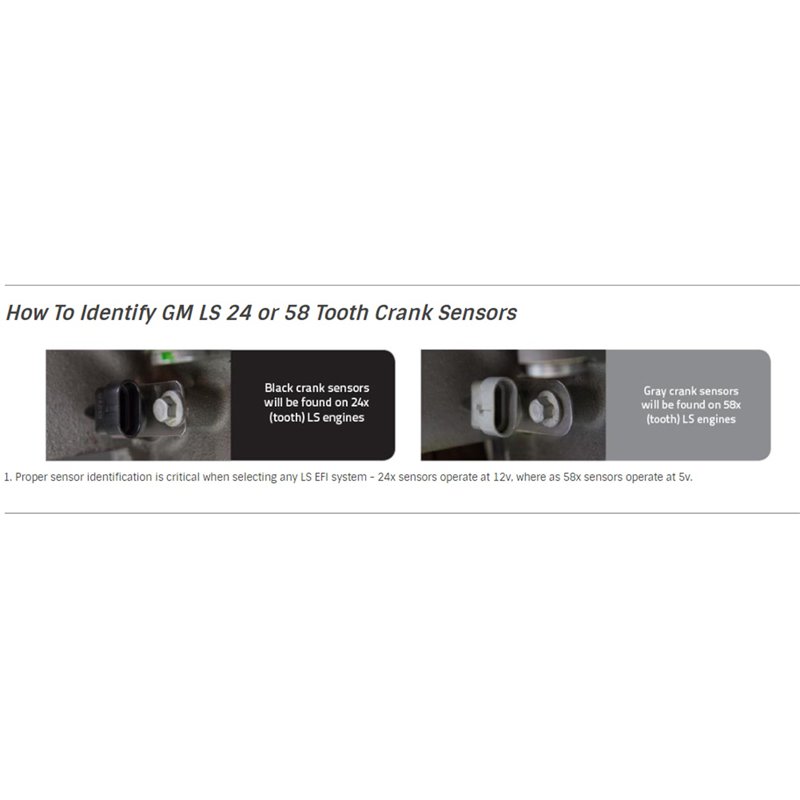

• Crank Sensor: 24x
• Cam Sensor: 1X
• Throttle Body: Drive-By-Wire (DBW) included
• Transmission Control: 4L60E / 4L80E included
• Fuel Learn: Real-time
• Integrated MAP Sensor: 1 bar
• Programmable I/O: 4

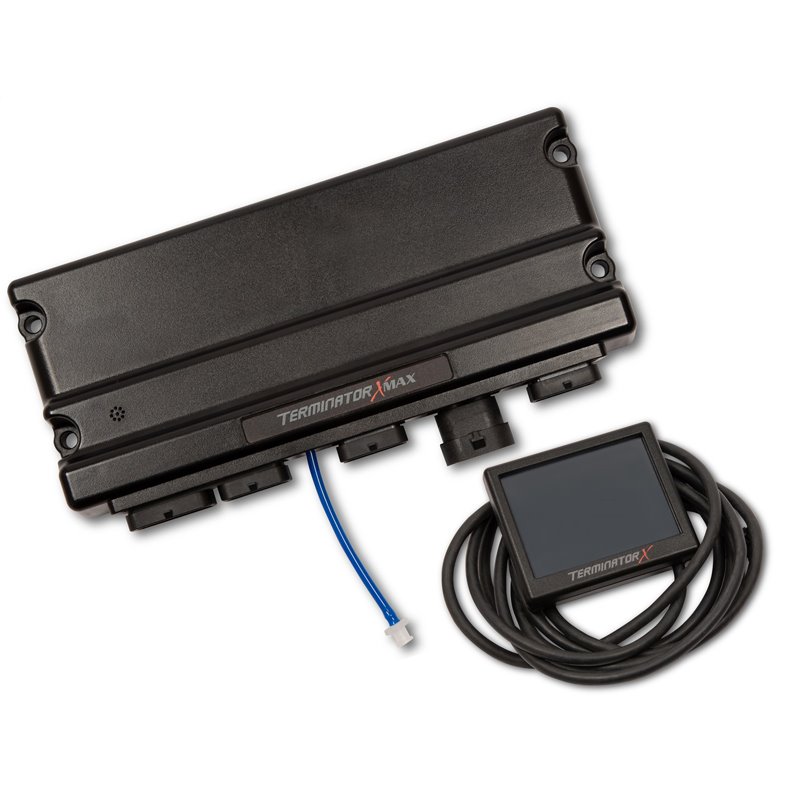

• Display: 3.5 in. LCD touchscreen
• Condition: New
• Sold and shipped by GBP Performance
