Holley | Flow Matched Fuel Injector Set

Holley – Flow Matched Fuel Injector Set 160 lb/h

Description

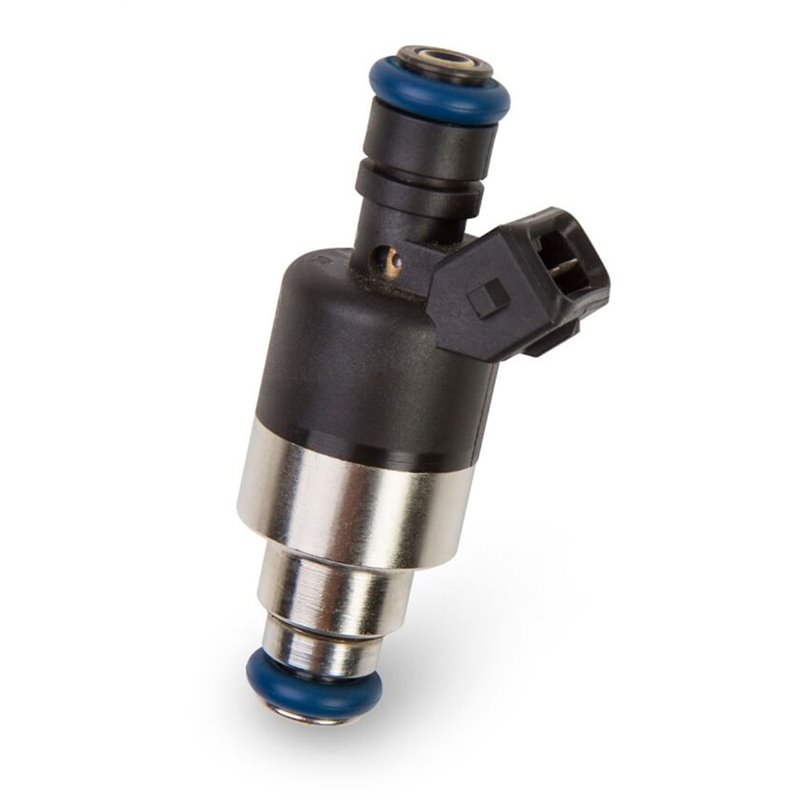

Holley EFI Flow Matched Fuel Injectors (PN 522-168FM) deliver 160 lb/h at 43 PSI with a low impedance of 2.0 Ω, designed for use with Peak and Hold drivers. Featuring a precision lapped disc valve, high-quality brass windings, and high-temp O-rings, these EV1/Bosch Jetronic style injectors provide excellent linearity with no discernible bounce at low pulse widths. Dead times are matched within 2 microseconds and dynamic flow is matched within 1%, ensuring precise and consistent fuel delivery. Tri-Cone spray pattern. O-ring to O-ring: 2.415 in.

Specifications

• Brand: Holley
• Part Number: 522-168FM

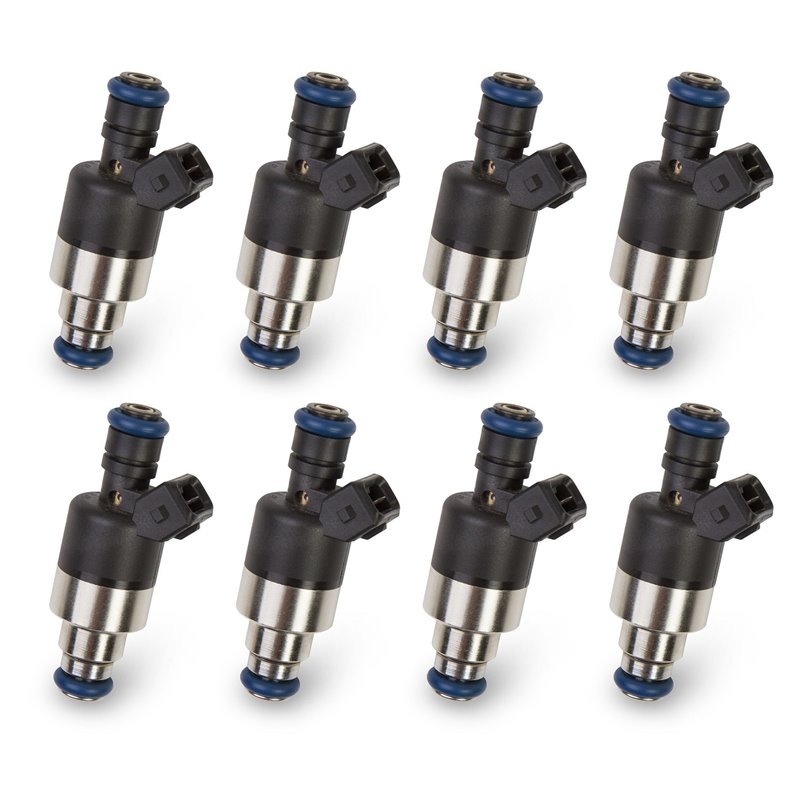

• Type: Flow Matched Fuel Injector Set, qty. 8
• Flow Rate: 160 lb/h @ 43 PSI
• Impedance: Low, 2.0 Ω (Peak & Hold drivers)
• Style/Connector: EV1 / Bosch Jetronic

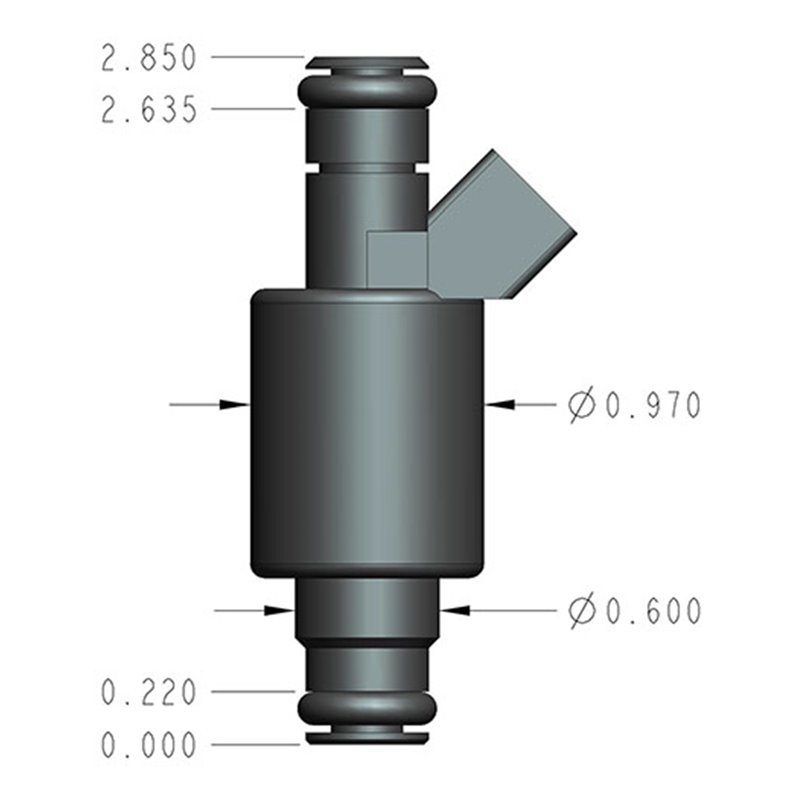

• Body: EV1, length 2.850 in.
• O-Ring to O-Ring: 2.415 in.
• Spray Pattern: Tri-Cone

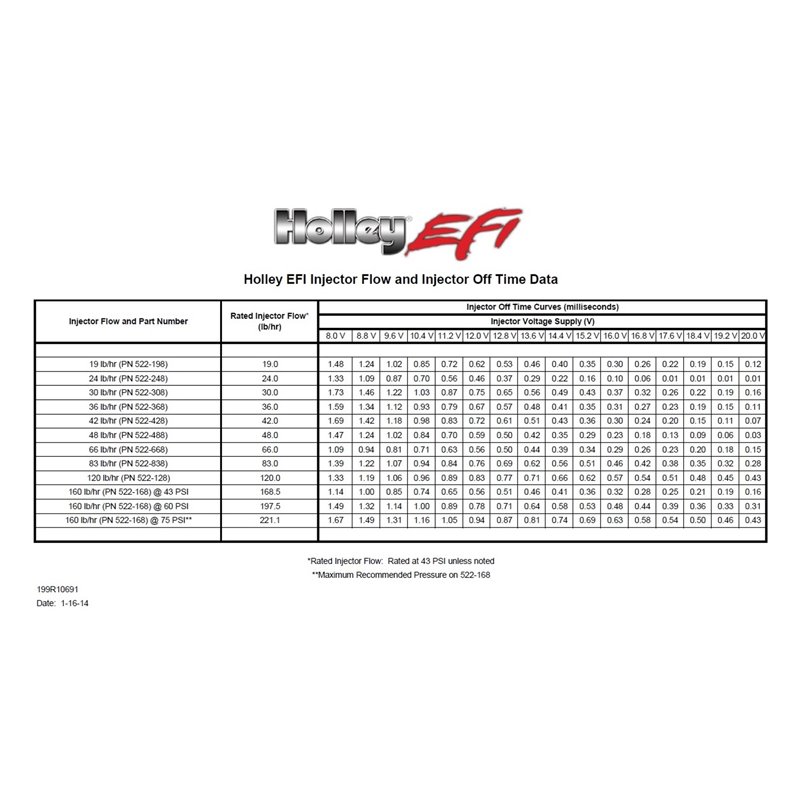

• Dead times matched within 2 µs; dynamic flow matched within 1%
• Condition: New
• Sold and shipped by GBP Performance
