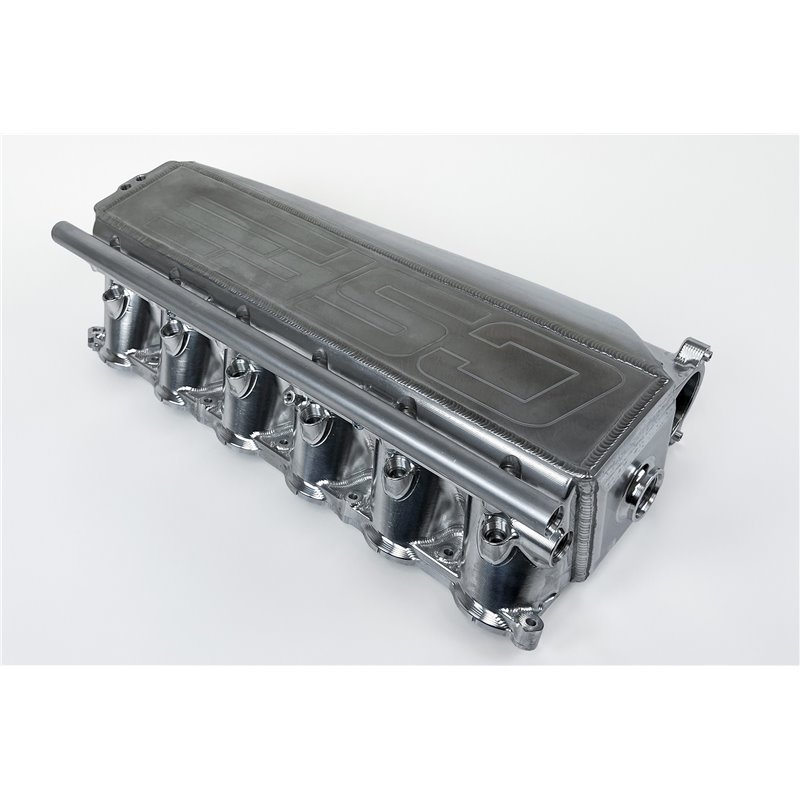

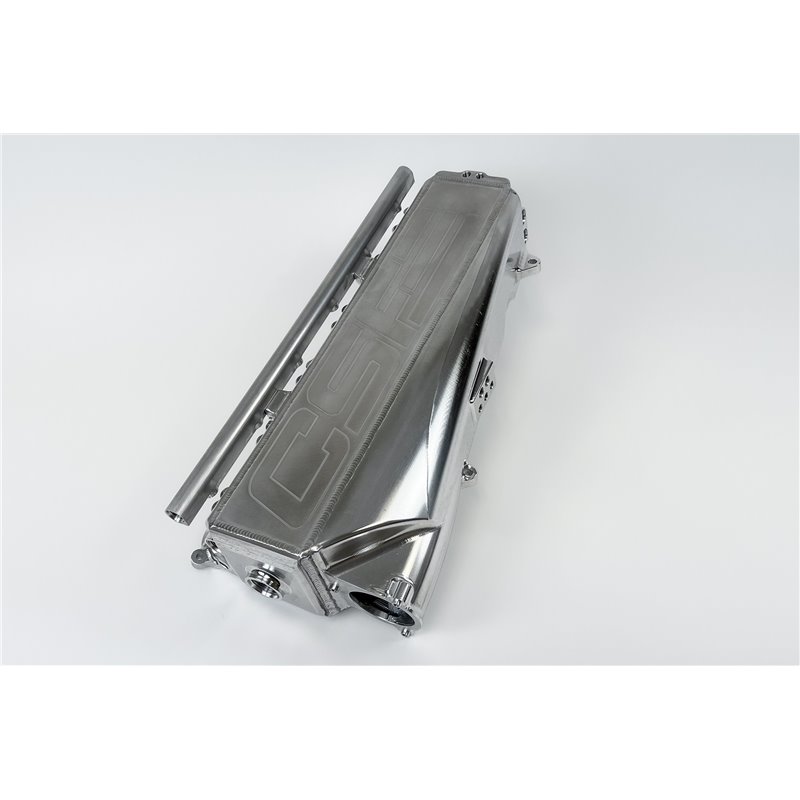

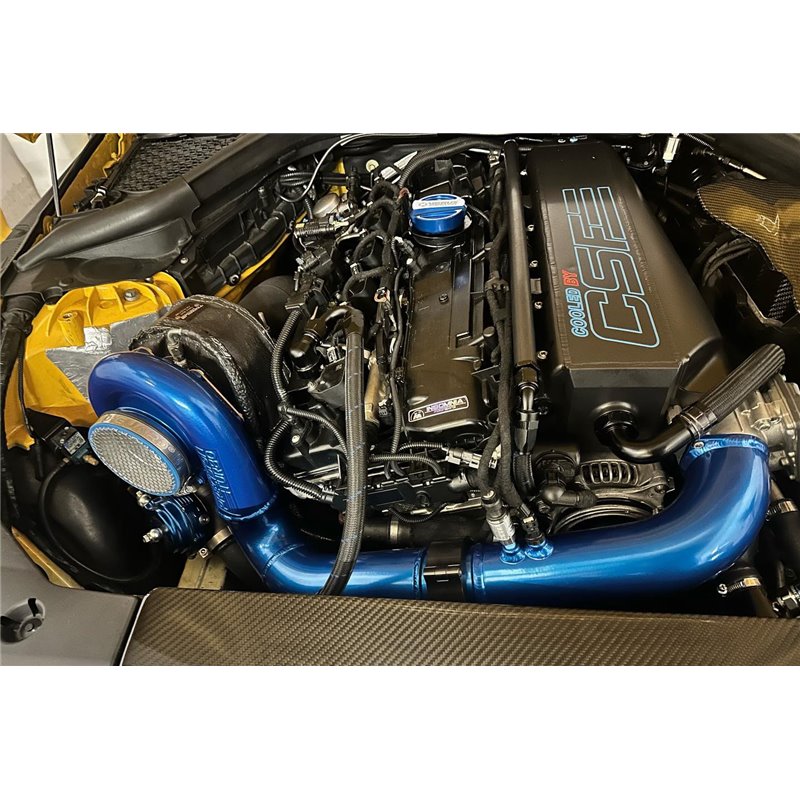

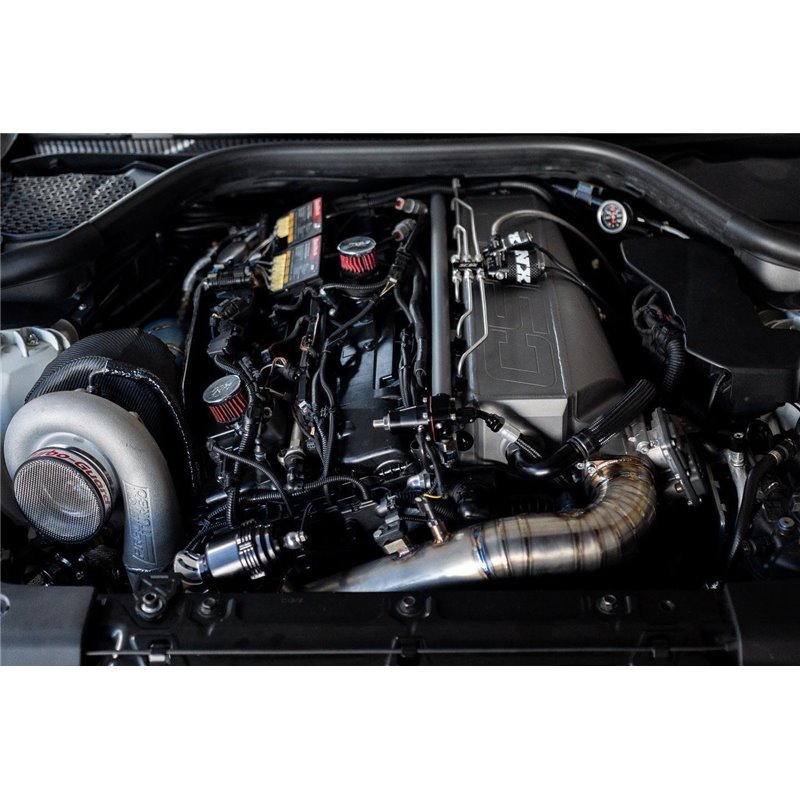

CSF | BMW Gen 2 B58 Race X Charge Air Cooler Manifold - Raw Billet - BMW / Toyota 3.0T 2019-2024

Part #: 8400

With the largest and most efficient intercooler performance, lower pressure drop, port injection, and other industry-leading features, the CSF Race X Manifold allows Gen 2 B58 owners to maximize performance.

Utilizes a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core - 25% larger than the standard Gen-2 B58 Super Manifold (CSF#8200) - 15 Rows of Water Cooling vs. CSF #8200 12 Rows and OEM 6 Rows

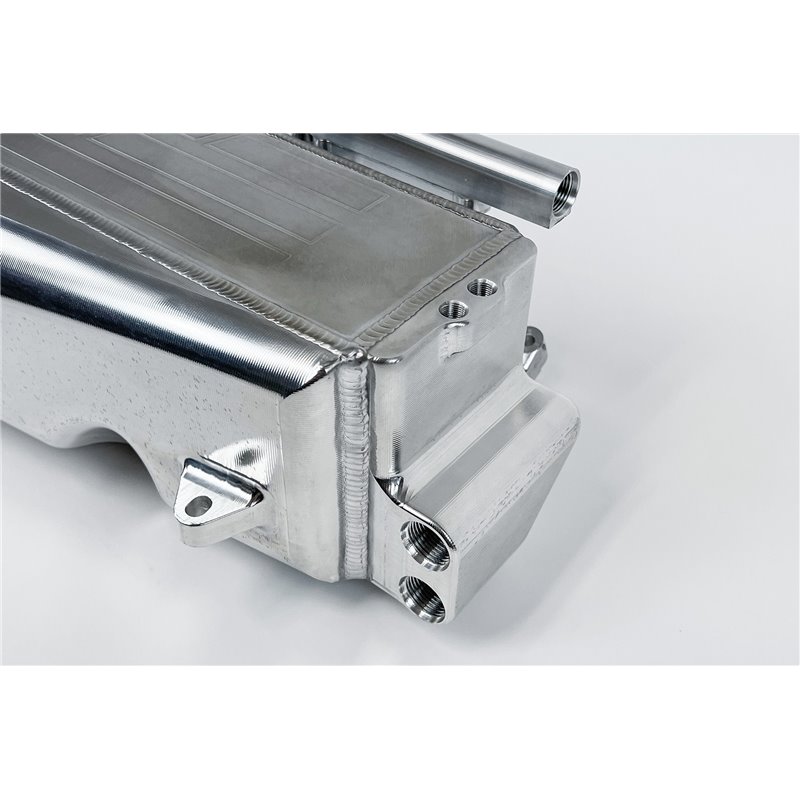

Individual 1/8" NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Bleeding
Included KIYLEX Thermal Rejection Manifold Spacer - Proven to lower intake manifold temperatures by up to 15%
Some modifications to install - this product is intended to be installed only by a skilled and experience technician who is familiar with the B58 engine platform
Includes Hardware and Installation Kit with Picture Diagrams and Instructions
Comes Finished in Raw Billet Aluminum (Available in Thermal Black Heat Dispersion Cerakote - CSF #8400B or Custom Finishes - CSF #8400C)
Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia
Core can be setup for dual or single pass: The -16 ORB bung on front water end plate can be used to adjust the flow configuration to single-pass and/or to be used with an ice-box setup. Includes CNC machined plug for dual-pass configuration
Designed in SolidWorks Using Computational Fluid Dynamics (CFD)
Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core
Improved slotted mounting holes on throttle body side for easier installation
Easy Access to Spin-Off Oil Filter for Quick Oil Changes

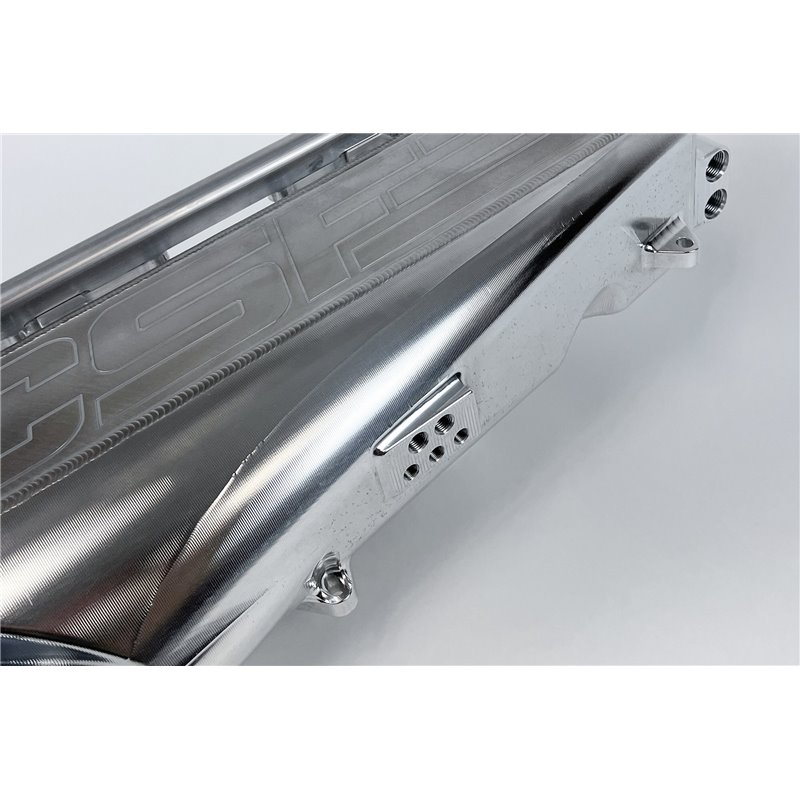

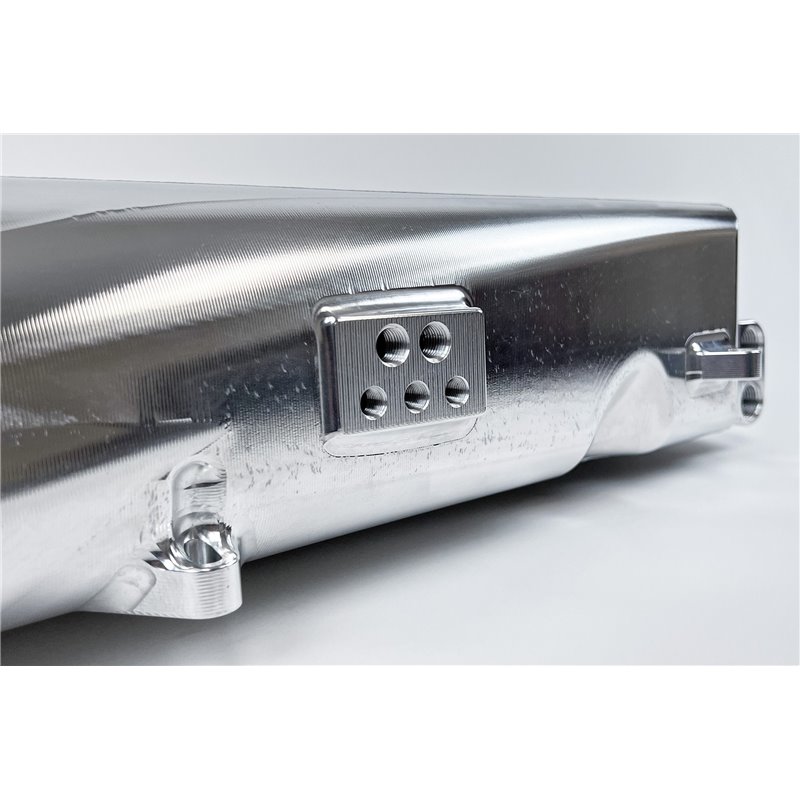

Integrated Sensor Pad with Two 1/4" and Three 1/8" NPT Ports to Measure Additional Parameters or Extra Sources of Vacuum
Included Fuel Rail for Top Feed Port Injection

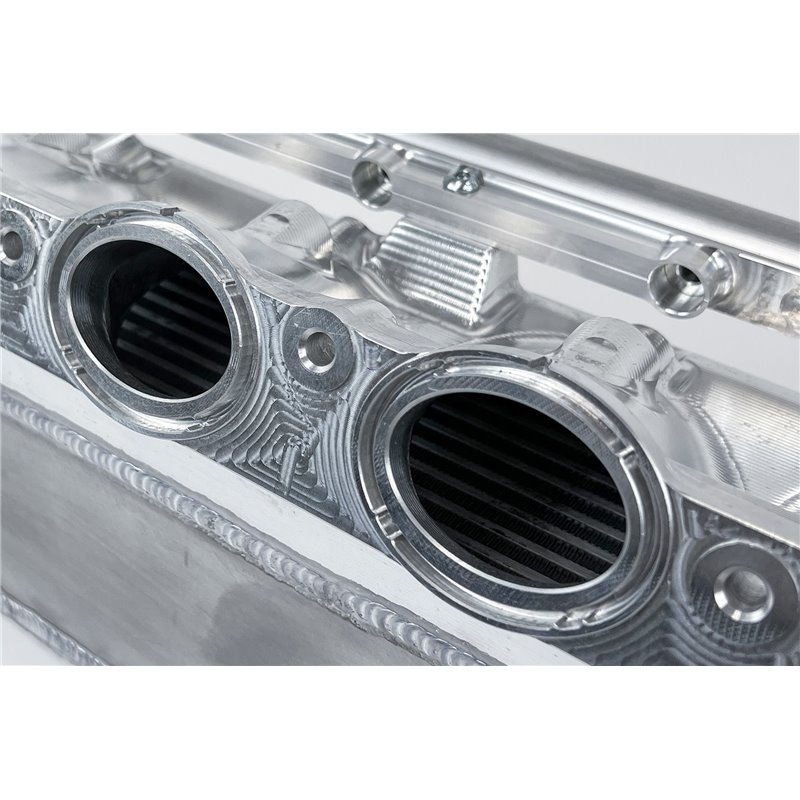

Individual 1/8" NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection - Allows for Even Spray Distribution and Control for Maximum Performance

Free Shipping

CAD $8,585.51 CAD $10,100.60 Save 15% - FLASH SALE

Delivery in 2 to 3 weeks

PROUDLY CANADIAN
BEST PRICE GUARANTEE
GUARANTEED FITMENT

The Race X Manifold is designed for high level motorsports competition and racing applications. The limits of the current Super Manifold are very high and more than enough for many enthusiasts, tuners, and racers. However, those looking to push their Gen 2 B58s to the maximum have been asking for more. Race X features a 25% larger core, additional parameter ports, and an optimized water flow system. The manifold can be used in either dual or single pass configurations and features a new front port that has been optimized for ice box setups. This is the most versatile and largest manifold available on the market and has been race tested on some of the fastest B58 powered drag cars in the world.

Note:

Livraison GRATUITE / FREE Delivery

BMW

2023 M240i L6 3.0L Turbo
2023 M240i xDrive Base L6 3.0L Turbo
2020-2022 M340i L6 3.0L Turbo
2021-2024 M340i Base L6 3.0L Turbo
2020-2023 M340i xDrive L6 3.0L Turbo
2020-2024 M340i xDrive Base L6 3.0L Turbo
2021 M440i L6 3.0L Turbo
2021-2023 M440i Base L6 3.0L Turbo
2021-2024 M440i L6 3.0L Turbo
2021-2023 M440i Base L6 3.0L Turbo
2021-2023 M440i xDrive / Base L6 3.0L Turbo
2021-2024 M440i xDrive / Base L6 3.0L Turbo
2022 M440i Gran Coupe L6 3.0L Turbo
2023-2024 M440i Gran Coupe Base L6 3.0L Turbo
2024 M440i Gran Coupe Base L6 3.0L Turbo
2024 M440i xDrive Gran Coupe L6 3.0L Turbo
2022-2023 M440i xDrive Gran Coupe Base L6 3.0L Turbo
2024 M440i xDrive Gran Coupe L6 3.0L Turbo
2021-2023 540i L6 3.0L Turbo
2020 540i Base L6 3.0L Turbo
2021-2022 540i L6 3.0L Turbo
2020 540i Base L6 3.0L Turbo
2020-2023 540i xDrive L6 3.0L Turbo
2021-2023 540i xDrive Base L6 3.0L Turbo
2020-2021 540i xDrive L6 3.0L Turbo
2021-2022 540i xDrive Base L6 3.0L Turbo
2022 740i L6 3.0L Turbo
2020-2024 740i Base L6 3.0L Turbo
2020-2022 740i xDrive L6 3.0L Turbo
2022 745e xDrive L6 3.0L Turbo
2020-2021 745e xDrive Base L6 3.0L Turbo
2020-2024 840i L6 3.0L Turbo
2022-2023 840i Base L6 3.0L Turbo
2021 840i xDrive L6 3.0L Turbo
2020-2024 840i xDrive Base L6 3.0L Turbo
2022-2024 840i Gran Coupe L6 3.0L Turbo
2020-2023 840i Gran Coupe Base L6 3.0L Turbo
2020-2024 840i xDrive Gran Coupe L6 3.0L Turbo
2020-2022 840i xDrive Gran Coupe Base L6 3.0L Turbo
2022 X3 M40i L6 3.0L Turbo
2020-2024 X3 M40i L6 3.0L Turbo
2022 X4 M40i L6 3.0L Turbo
2020-2024 X4 M40i L6 3.0L Turbo
2021-2023 X5 xDrive45e L6 3.0L Turbo
2020-2024 X5 sDrive40i L6 3.0L Turbo
2019-2023 X5 xDrive40i L6 3.0L Turbo
2020-2021 X6 sDrive40i L6 3.0L Turbo
2020-2024 X6 xDrive40i L6 3.0L Turbo
2023-2024 X7 xDrive40i L6 3.0L Turbo
2019-2022 X7 xDrive40i L6 3.0L Turbo

Toyota

2024 GR Supra 45th Anniversary Edition / Premium 45th Anniversary Edition L6 3.0L Turbo
2021-2022 GR Supra A91 Edition L6 3.0L Turbo
2023 GR Supra A91-MT Edition L6 3.0L Turbo
2020-2024 GR Supra Base / Premium L6 3.0L Turbo
2020 GR Supra Launch Edition L6 3.0L Turbo

Brand: CSF

Reference: 8400

UPC: 710353084007
