Mishimoto | Intercooler Kit, Black/Black, fits Ford Mustang EcoBoost 2024+ - Mustang EcoBoost / EcoBoost Premium 2.3T 2024-2026

Mishimoto - Intercooler Kit

Description

Upgrade your 2024+ Ford Mustang EcoBoost with the Mishimoto Intercooler and Pipe Kit, a complete system designed to maximize airflow, lower intake temps, and boost performance. This kit combines a direct-fit bar-and-plate intercooler with high-flow hot-side and cold-side aluminum pipes, delivering safe, tune-free power gains. -- The intercooler features cast aluminum end tanks and fits in the stock location with a 60% increase in core volume. Oversized 63mm inlets/outlets improve flow, while a diverter plate ensures even air distribution. Foam sealing strips and a custom-formed air deflector maximize airflow through the core and reduce NVH. Four EPDM rubber sandwich mounts isolate vibration and add rigidity. Gains of up to 12 hp and 11 ft-lbs of torque are possible with no tuning, and a pre-drilled NPT port allows for auxiliary sensors or data logging. -- The included intercooler pipes are made from durable aluminum with cast connections for strength and precise fitment. A cast turbo outlet elbow integrates the blow-off valve seat and retains factory harness clipping points for a clean install. CNC-machined quick-disconnect fittings, DuraCore(TM) silicone couplers, high-torque worm-gear clamps, and an ID-matched transition coupler ensure secure, high-flow connections. Extra clearance also allows compatibility with the Mishimoto performance radiator. -- Available in polished or wrinkle black finishes, the Mishimoto Intercooler and Pipe Kit provides improved airflow, reduced intake temps, better underhood aesthetics, and long-term durability. Installation is straightforward with all hardware included, and every kit is backed by the Mishimoto Lifetime Warranty.

Characteristics

• 11248: Aluminum
• 11249: Powder Coated
• 11252: 2.44 IN
• 11253: 2.44 IN
• 11254: Air-to-Air
• 11256: Bar-and-Plate
• 11257: Cast
• 267: 6.08 IN
• 268: 3.54 IN
• 302: Aluminum
• 3145: Specific
• 3390: Performance
• 3530: Aluminum
• 3531: Black
• 397: 22.83 IN
• 570: 2.44 IN
• 5745: Black
• 5746: Silicone
• 6347: Yes
• 638: 2.44 IN
• 6591: 50
• 7556: Black
• 8308: 526
• Install Difficulty: 3
• OptionLabel: Black Cooler--Black Pipes
• TechSpec Applications: 2024+ Ford Mustang EcoBoost
• TechSpec Centerline Radius: 3.15
• TechSpec Chassis Codes: S650
• TechSpec Core Height (in): 6.08
• TechSpec Core Length (in): 22.83
• TechSpec Core Thickness (in): 3.54
• TechSpec Core Type: Bar-and-Plate
• TechSpec Engine Codes: 2.3L EcoBoost I4
• TechSpec Includes: (1) Mishimoto Performance Intercooler--(1) Deflector Panel Kit--(1) Bracket Kit--(2) Hot Side Pipes--(1) Cold Side Pipe--(2) Duracore Couplers--(4) Spring Clamps--(2) O-Rings--(3) Buttonhead Locking Bolts--(1) Tree Clip Zip Tie--Mishimoto Lifetime Warranty
• TechSpec Inlet (in): 2.44
• TechSpec Maximum Recommended Boost Pressure (PSI): 50
• TechSpec Maximum Recommended Horsepower: 526
• TechSpec Outlet (in): 2.44
• TechSpec Overall Height (in): 6.5
• TechSpec Overall Length (in): 35.7
• TechSpec Overall Width (in): 5.3
• TechSpec Pipe Diameter: 2.75
• TechSpec Weight (lbs): 17

Attributs

• Gains of up to 12 hp and 11 ft-lbs of torque on a stock tune

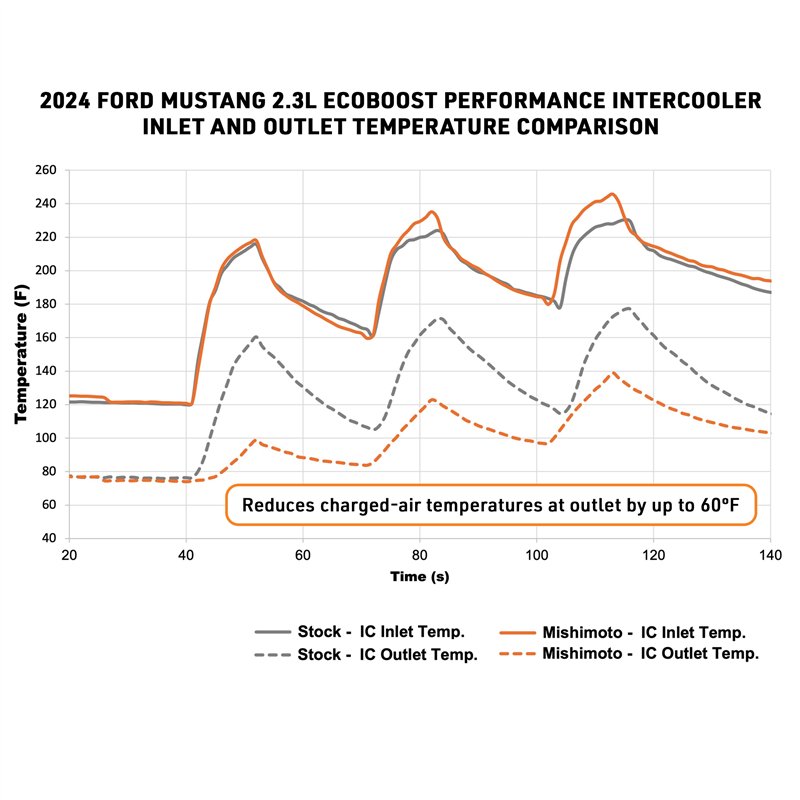

• Reduces charged-air temperatures at outlet by up to 60F
• Robust bar-and-plate core with cast aluminum end tanks supports up to 526 hp
