Edelbrock | Engine Cylinder Head - F-150 / FX4 / Mustang SVT Cobra R 5.0L / 5.8L 1995-2014

Edelbrock - Engine Cylinder Head



Description

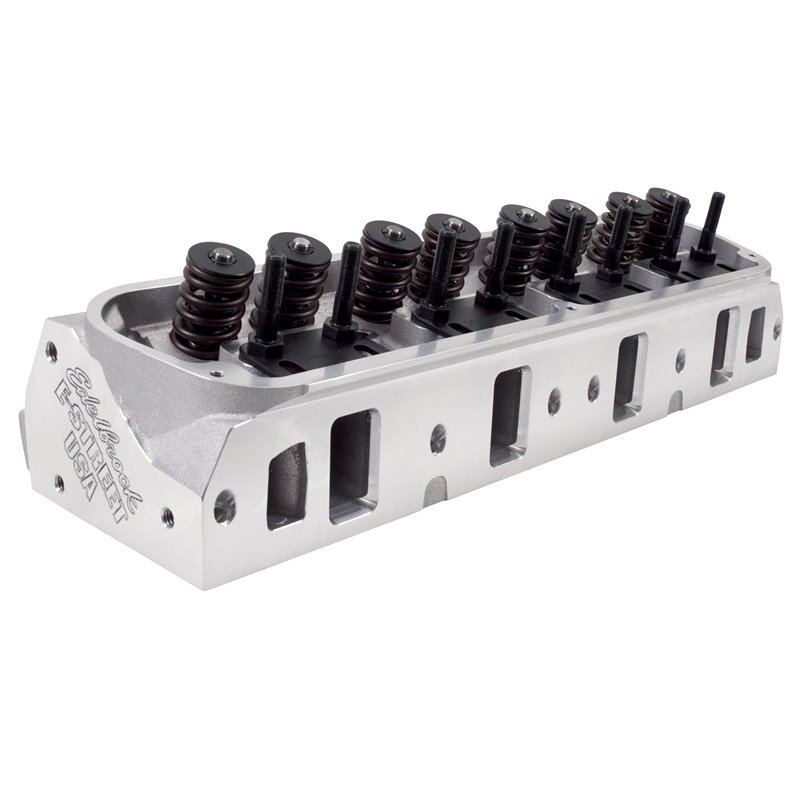

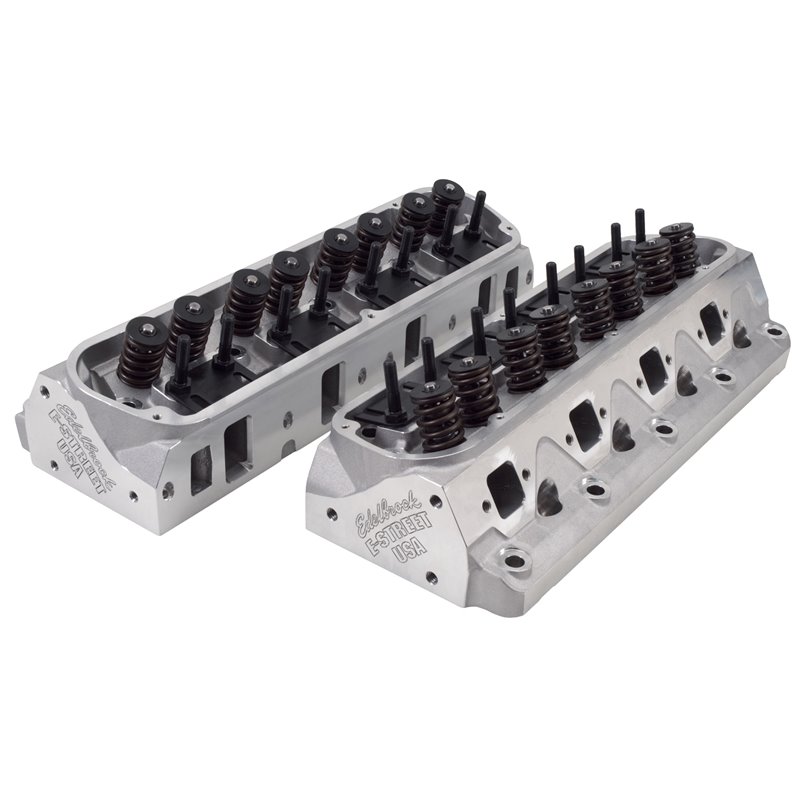

The Edelbrock #5025 E-Street cylinder heads are designed for Ford 289-351 W V8 applications. The Edelbrock E-Street cylinder heads offer American made quality and affordable performance. E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency. For use on pre-pollution controlled vehicles only.



Caracteristics

• Exhaust Port Location: Standard
• Exhaust Runner Volume: 60
• Series: E-Street
• Material: Aluminum
• Family: E-Street
• Quantity: Set of 2
• Valve Stem Diameter: 0.341
• Camshaft Type: Flat Tappet
• Horsepower: 200-400
• Seat Material: Ductile Iron
• Retainer Included: Yes
• Grade Type: Performance
• Construction Type: Complete
• Push Rod Diameter: (Suggested) 0.3125
• Valve Included: Yes
• Deck Thickness: 0.625
• Combustion Chamber Volume: 60
• Intake Runner Volume: 170
• Intake Valve Diameter: 2.02
• Exhaust Valve Diameter: 1.60
• Valve Spring Diameter: 1.46
• Valve Spring Maximum Lift: 0.550
• Valve Angle: 12
• Rocker Stud Diameter: 0.375
• Guide Plates Included: Yes
• Guide Plate Material: Hardened Steel
• Seat Angle: Exhaust 45 deg/Intake 45
• EGR Port: No
• Valve Springs Included: Yes
• CNC Ported: No
• Guide Material: Manganese Bronze
