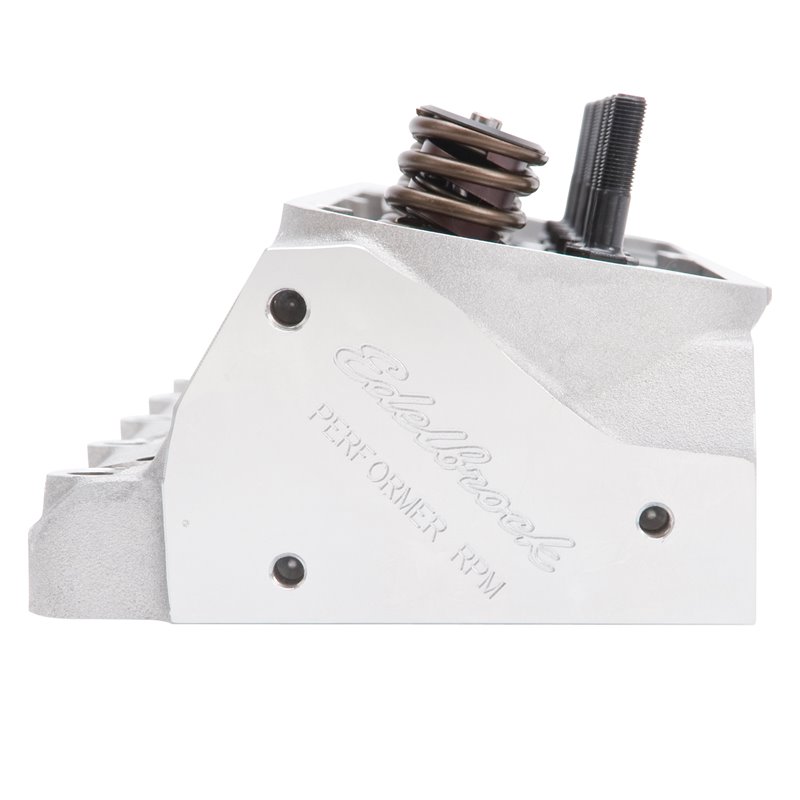

Edelbrock | Engine Cylinder Head - F-150 / FX4 / Mustang SVT Cobra R 5.0L / 5.8L 1995-2014

Edelbrock - Engine Cylinder Head



Description

The Edelbrock #60225 Performer RPM cylinder head is designed for use with 289-351W c.i.d. Small-Block Ford applications. The Edelbrock #60225 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.



Caracteristics

• Exhaust Port Location: Standard
• Exhaust Runner Volume: 60
• Series: Performer RPM
• Material: Aluminum
• Family: Performer RPM
• Quantity: Sold Individually
• Valve Stem Diameter: 0.3438
• Camshaft Type: Hydraulic Roller
• Horsepower: 300-450
• Seat Material: Ductile Iron
• Retainer Included: Yes
• Grade Type: Performance
• Construction Type: Complete
• Push Rod Diameter: (Suggested) 0.3125
• Valve Included: Yes
• Deck Thickness: 0.625
• Combustion Chamber Volume: 60
• Intake Runner Volume: 170
• Intake Valve Diameter: 1.90
• Exhaust Valve Diameter: 1.60
• Valve Spring Diameter: 1.46
• Valve Spring Maximum Lift: 0.575
• Valve Angle: 20
• Rocker Stud Diameter: 0.375
• Guide Plates Included: Yes
• Guide Plate Material: Hardened Steel
• Seat Angle: Exhaust 45 deg/Intake 45
• EGR Port: No
• Valve Springs Included: Yes
• CNC Ported: No
• Guide Material: Manganese Bronze
