ICON Alloys | 21-23 Bronco HOSS 1.0 Pkg, 1.375-3in Lift, Stage 2 Suspension System, Billet - Bronco 2.3T / 2.7T 2021-2023

Icon Vehicle Dynamics – Stage 2 Billet Complete Suspension System (HOSS 1.0)

Description

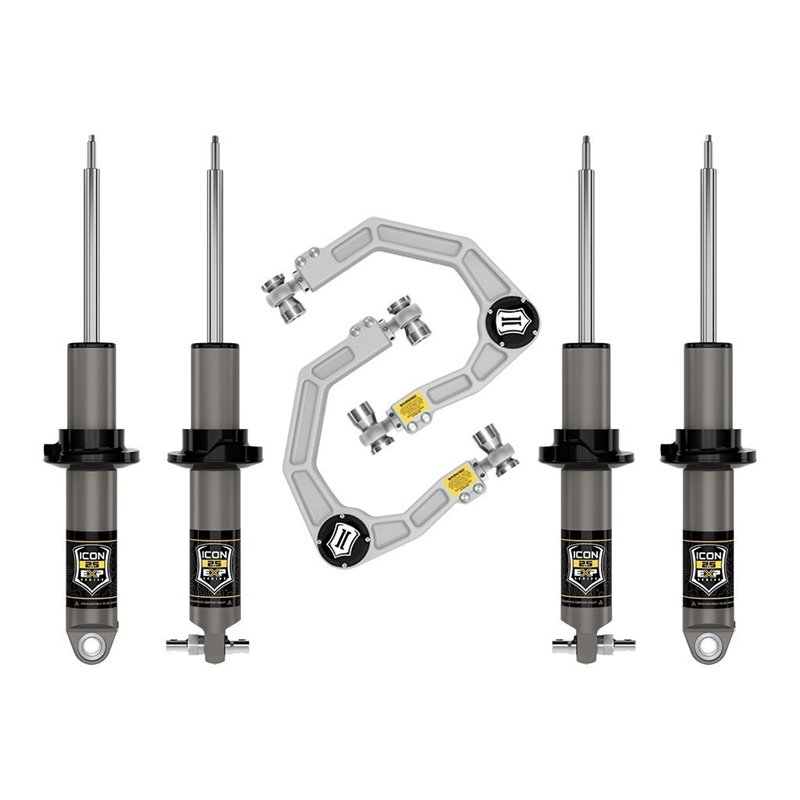

The Icon Vehicle Dynamics Stage 2 Billet suspension system (ref. K40002) is engineered specifically for the 2021-2023 Ford Bronco equipped with the OE HOSS 1.0 suspension package. Compared to Stage 1, this system adds billet aluminum upper control arms (UCAs) featuring the patented Delta Joint Pro (U.S. Pat. 10,731,700) with 90 degrees of total articulation and on-vehicle caster/camber adjustment for optimum drivability. The kit includes four 2.5 EXP Series coilover shocks with internal reservoirs, reusing the Bronco’s factory coil springs. Adjustable ride height from 1.375 to 3 inches front and 1.5 to 2.25 inches rear via snap-ring grooves. Inverted 7/8-inch induction-hardened chrome shafts, hard anodized aluminum cylinders, and 6061 CNC machined components. Fully rebuildable. Bolt-on installation. (See Application Section)

Specifications

• Reference: K40002
• Manufacturer: Icon Vehicle Dynamics
• Lift: 1.375-3 in. front; 1.5-2.25 in. rear (adjustable)

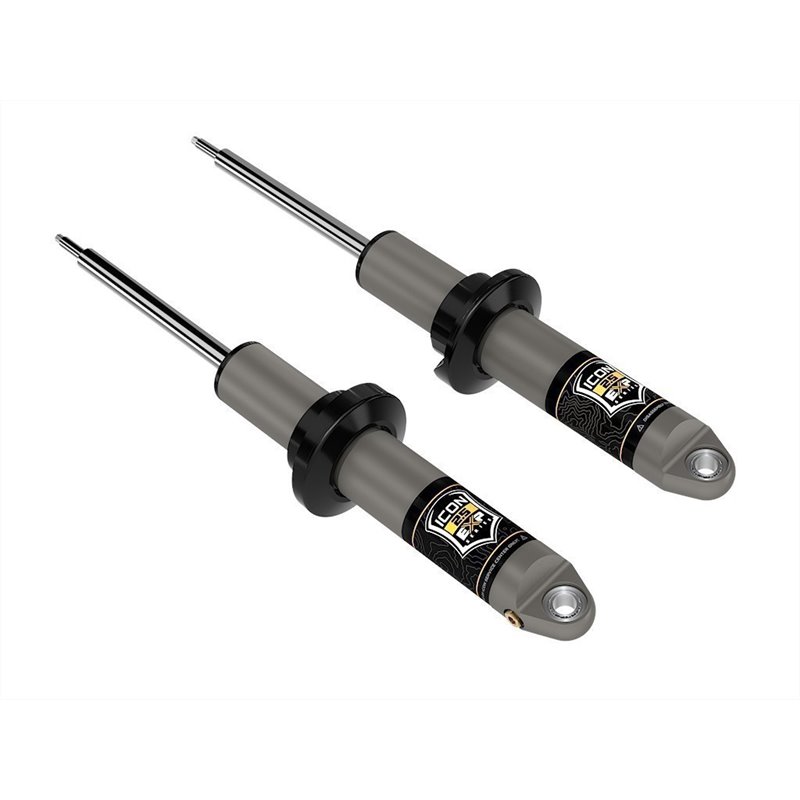

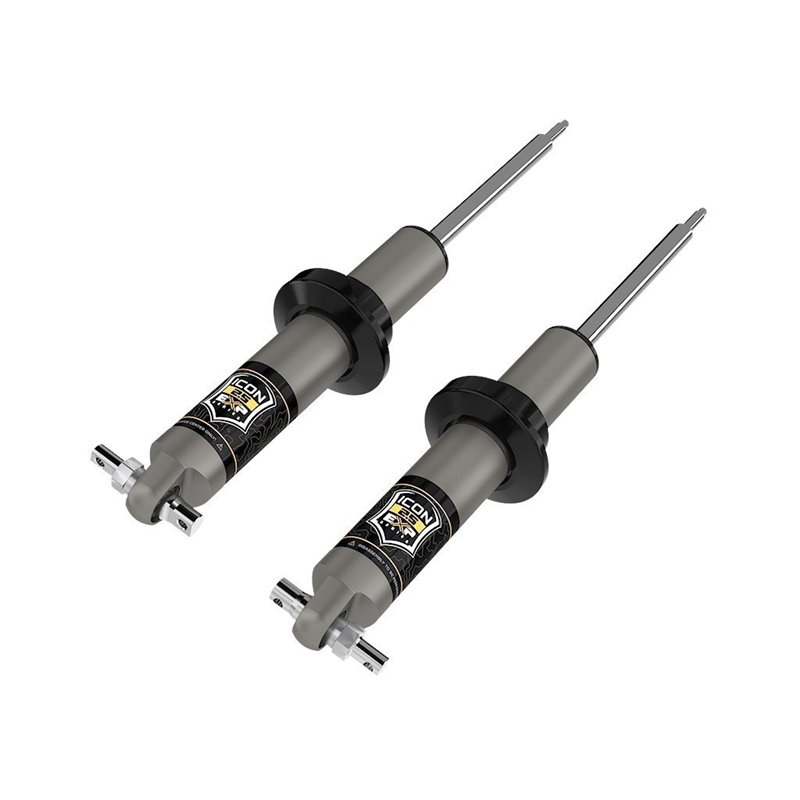

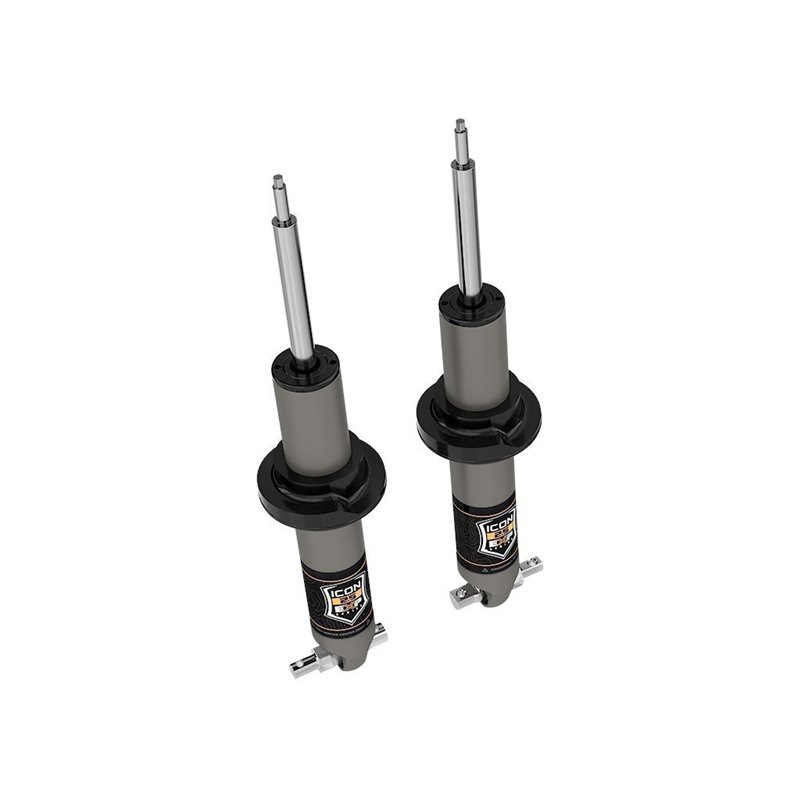

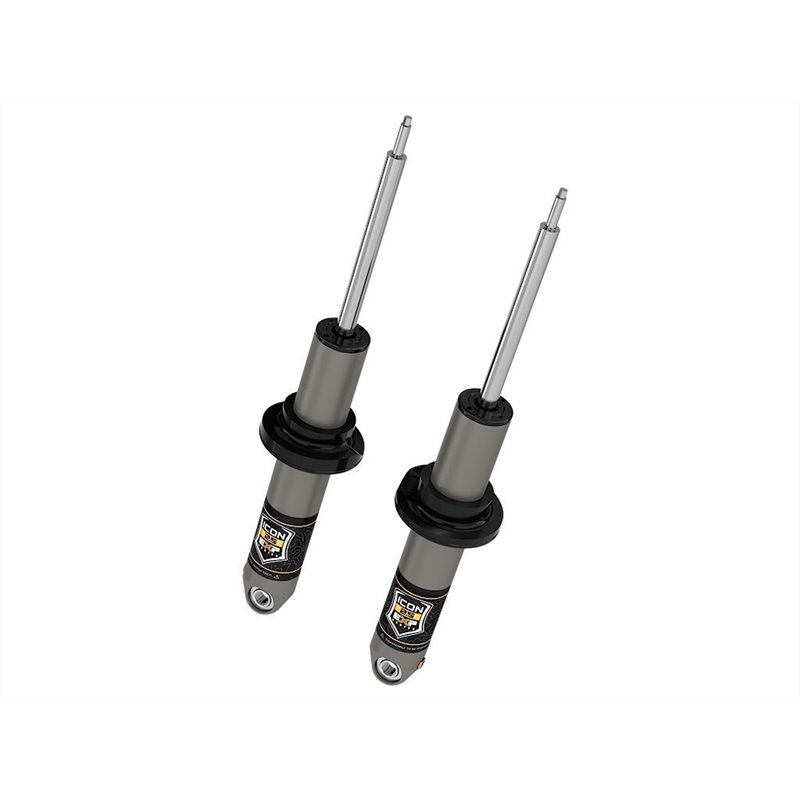

• Shocks: 2.5 EXP Series with internal reservoirs (4 shocks)

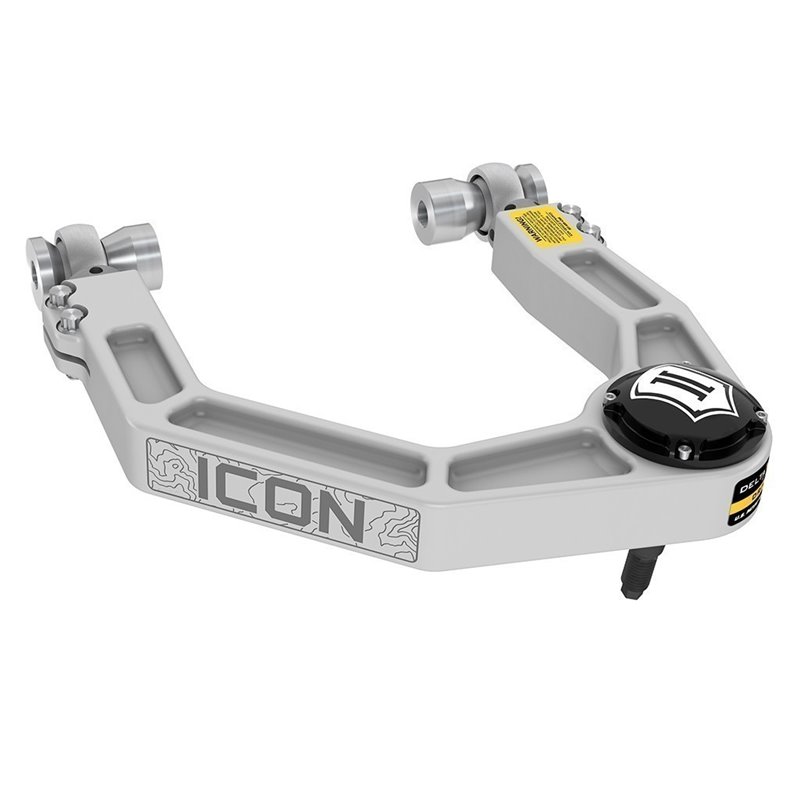

• UCAs: Billet aluminum with patented Delta Joint Pro (U.S. Pat. 10,731,700)
• UCA articulation: 90 degrees total
• Shaft design: Inverted, 7/8 in., induction hardened, chrome plated
• Cylinders: Hard anodized aluminum, impact extruded
• Components: 6061 aluminum CNC machined, black anodized
• Reuses factory Bronco HOSS 1.0 coil springs
• Condition: New
• Sold and shipped by GBP Performance
