ICON Alloys | 21-23 Bronco Non-Sasquatch 3-4in Lift Stage 3 Suspension System, Tubular UCA - Bronco 2.3T / 2.7T 2021-2023

Icon Vehicle Dynamics – Stage 3 Tubular UCA Complete Suspension System (Non-Sasquatch)

Description

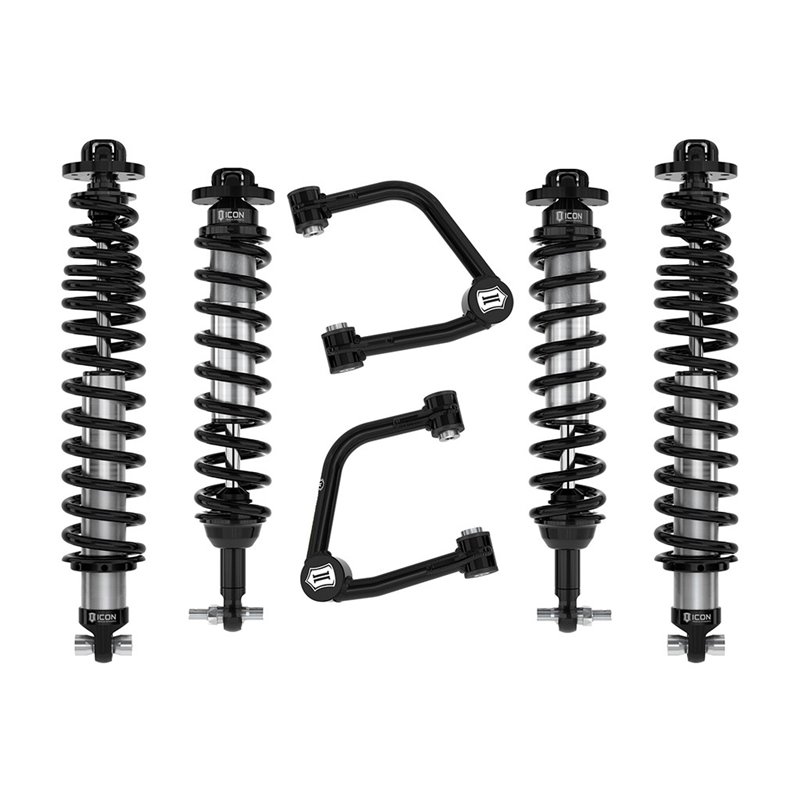

The Icon Vehicle Dynamics Stage 3 Tubular UCA suspension system (ref. K40003T) is engineered for the Non-Sasquatch Ford Bronco 2021-2023. Compared to Stage 3 Billet (K40003), this system uses tubular upper control arms (UCAs) featuring the patented Delta Joint Pro (U.S. Pat. 10,731,700) with 90 degrees of total articulation. It provides 3 to 4 inches of front lift and 2 to 3 inches of rear lift with up to 11.5 inches of front and 14 inches of rear wheel travel using 35-inch tires. Vehicle-specific tuned internal reservoir coilovers ensure maximum damping and control. ICON-engineered coil springs feature a unique triple-rate rear design. PTFE-lined spherical bearings and application-specific hardware. Bolt-on installation. (See Application Section)

Specifications

• Reference: K40003T
• Manufacturer: Icon Vehicle Dynamics
• Lift: 3-4 in. front; 2-3 in. rear
• Wheel travel: Up to 11.5 in. front / 14 in. rear (35 in. tires)
• UCAs: Tubular with patented Delta Joint Pro (U.S. Pat. 10,731,700)
• Shocks: Internal reservoir, vehicle-specific valving
• Springs: ICON-engineered, triple rate rear
• Bearings: PTFE-lined spherical
• Shock bodies: Corrosion-resistant CAD plated, 7/8 in. shafts
• Installation: Bolt-on, no drilling or welding required
• Condition: New
• Sold and shipped by GBP Performance
