ICON Alloys | 2021-2023 Bronco HOSS 2.0 Pkg 0-2in Lift Stage 2 Suspension System, Billet - Bronco 2.3T / 2.7T 2021-2023

Icon Vehicle Dynamics – Stage 2 HOSS 2.0 Billet UCA Suspension System

Description

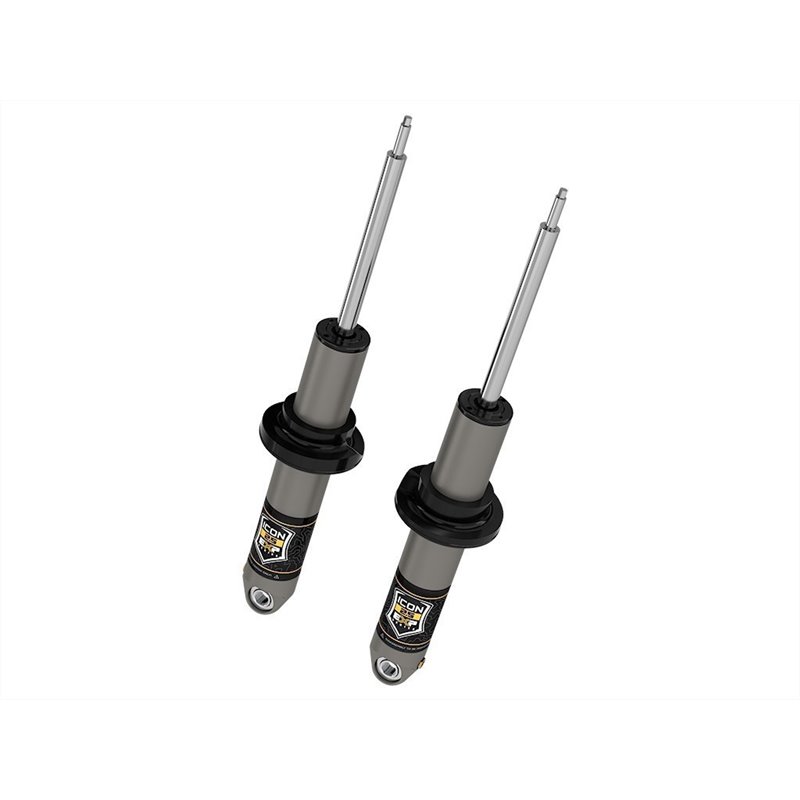

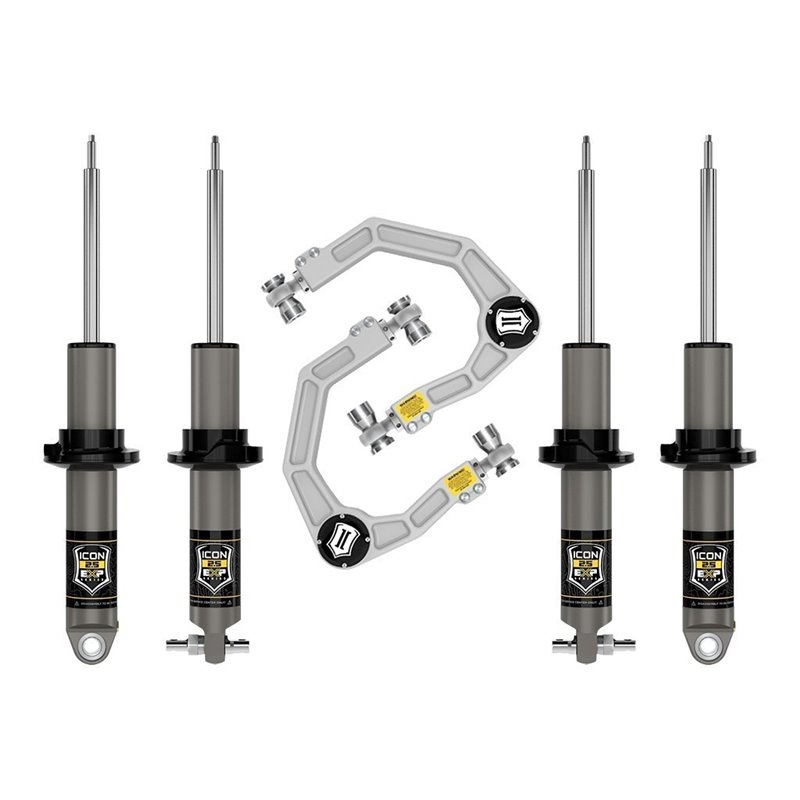

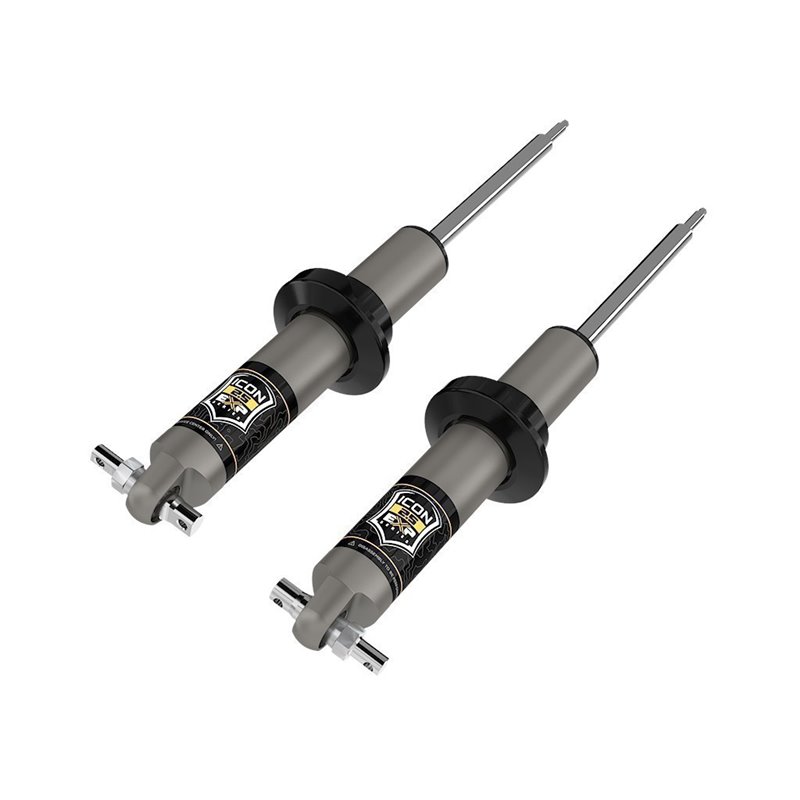

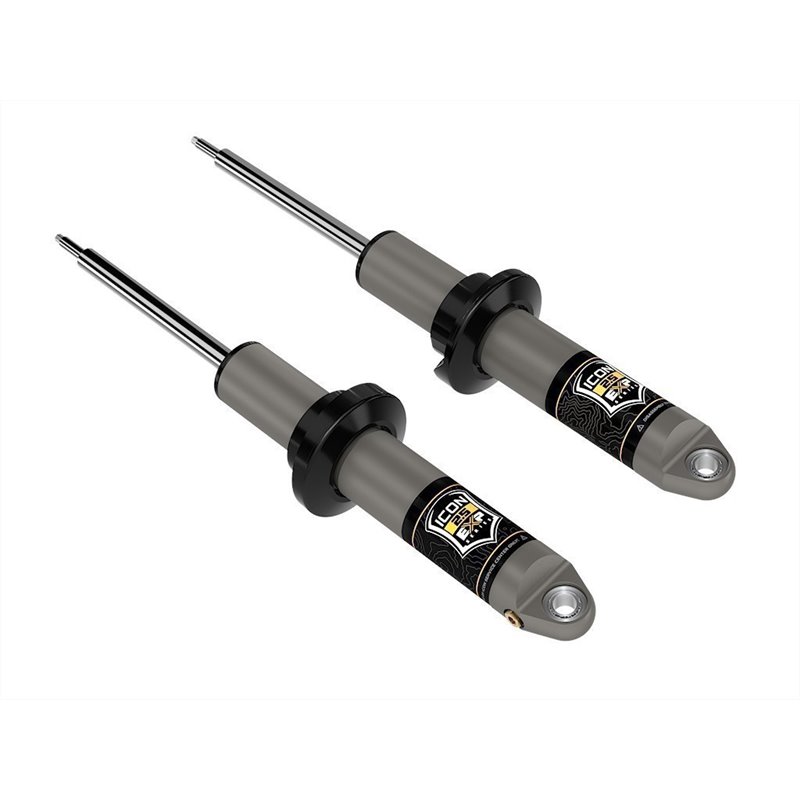

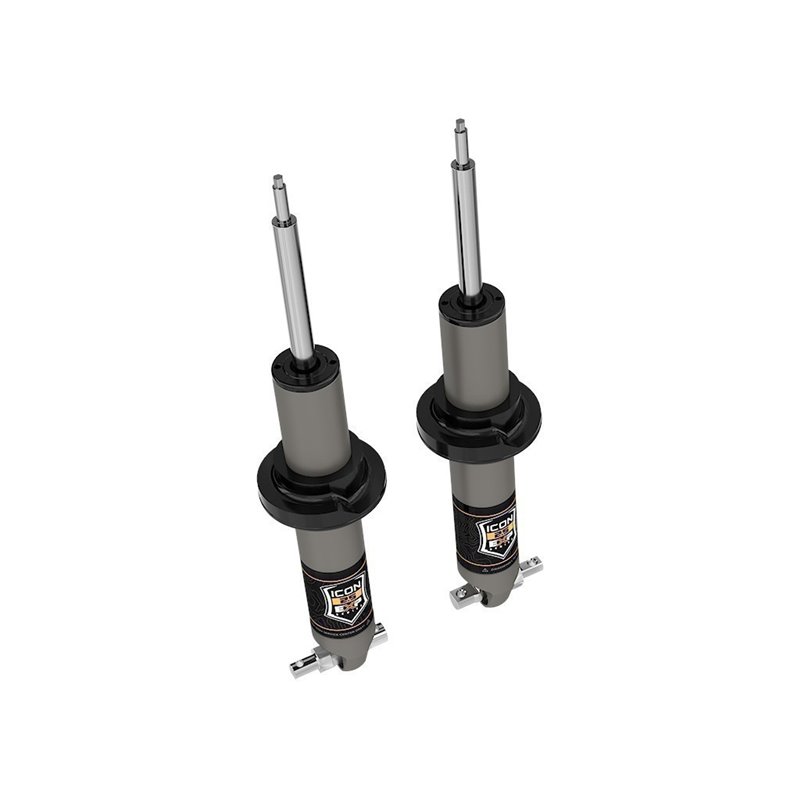

The ICON Vehicle Dynamics Stage 2 Suspension System for Ford Bronco with HOSS 2.0 Package includes a complete set of (4) 2.5 in EXP Series aluminum shocks with internal reservoirs, plus billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability. UCAs feature the patented Delta Joint Pro (U.S. Pat. 10,731,700) with 90 degrees of total articulation. This system delivers adjustable ride heights from 0-2 in of front lift and 0-1.75 in of rear lift over stock, reusing the Bronco's factory coil springs. EXP shocks use snap-ring grooves machined into the body for easy ride height selection. Inverted shaft-up design with 7/8 in induction hardened, chrome-plated shafts. One-piece hard-anodized aluminum cylinders provide excellent corrosion resistance. 100% bolt-on installation, no cutting or welding. Compatible with Ford Bronco with OE HOSS 2.0 Package (See Application Section).

Specifications

• Part Number: K40012
• Brand: Icon Vehicle Dynamics
• Adjustable Lift: 0-2 in front / 0-1.75 in rear
• Set of (4) 2.5 in EXP Series aluminum shocks with internal reservoirs

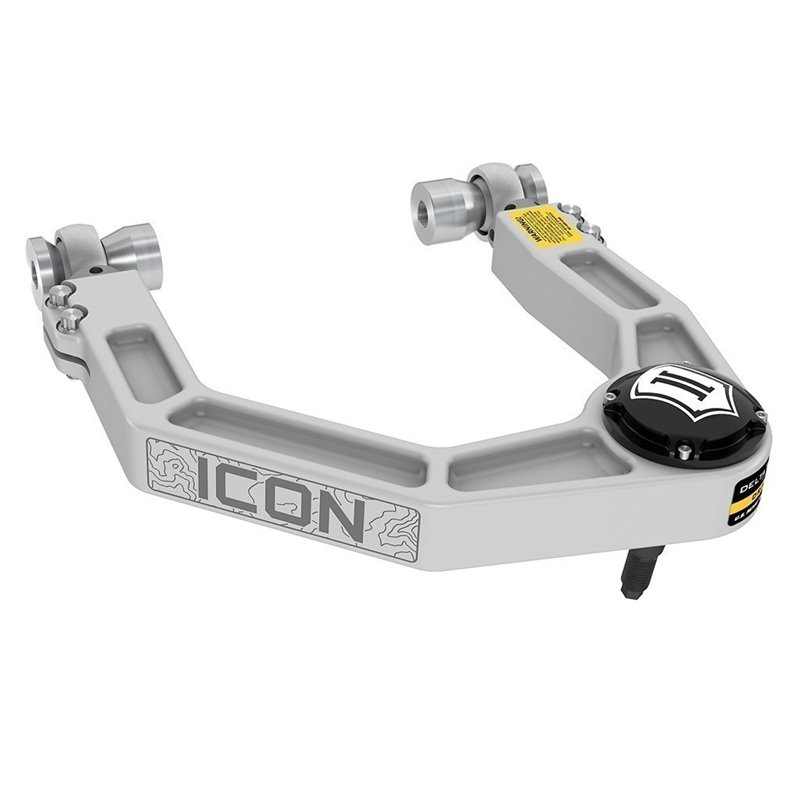

• Billet aluminum UCAs with patented Delta Joint Pro (U.S. Pat. 10,731,700), 90° articulation
• On-vehicle caster/camber adjustment on UCAs
• Inverted shaft-up design, 7/8 in induction hardened chrome-plated shafts
• One-piece impact-extruded hard-anodized aluminum cylinders
• CNC machined 6061 aluminum components, black anodized finish
• PTFE lined spherical bearings for extended longevity
• Reuses factory coil springs and coil hardware
• 100% bolt-on installation – no cutting or welding
• Condition: New
• Sold and shipped by GBP Performance
