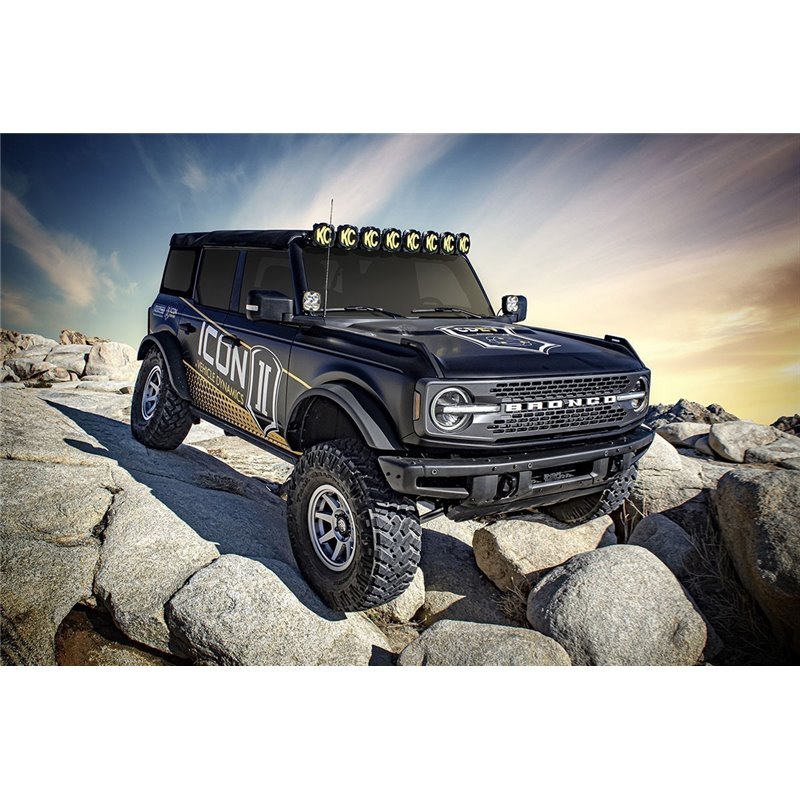

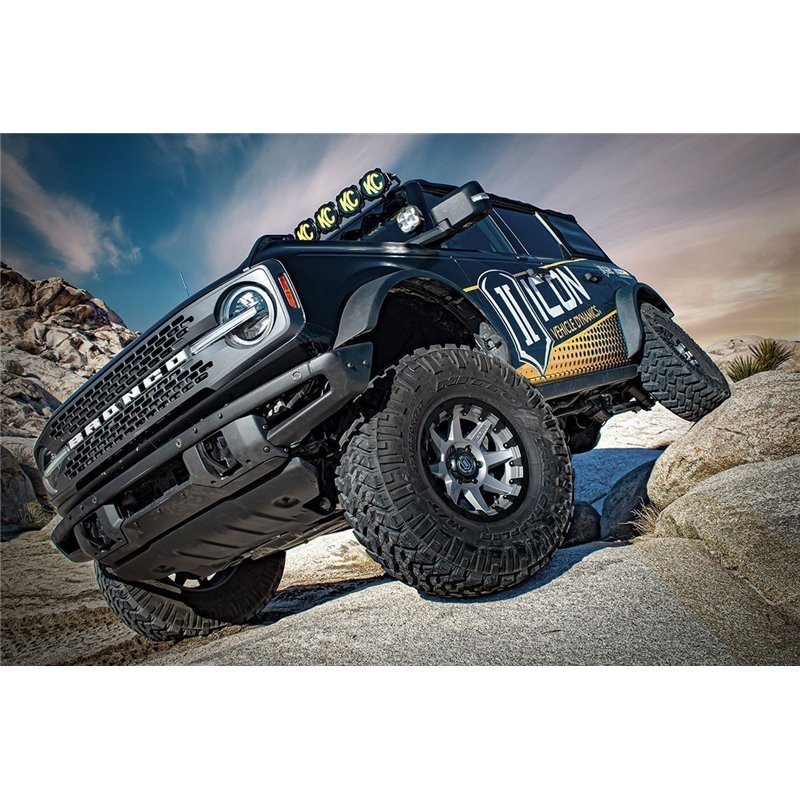

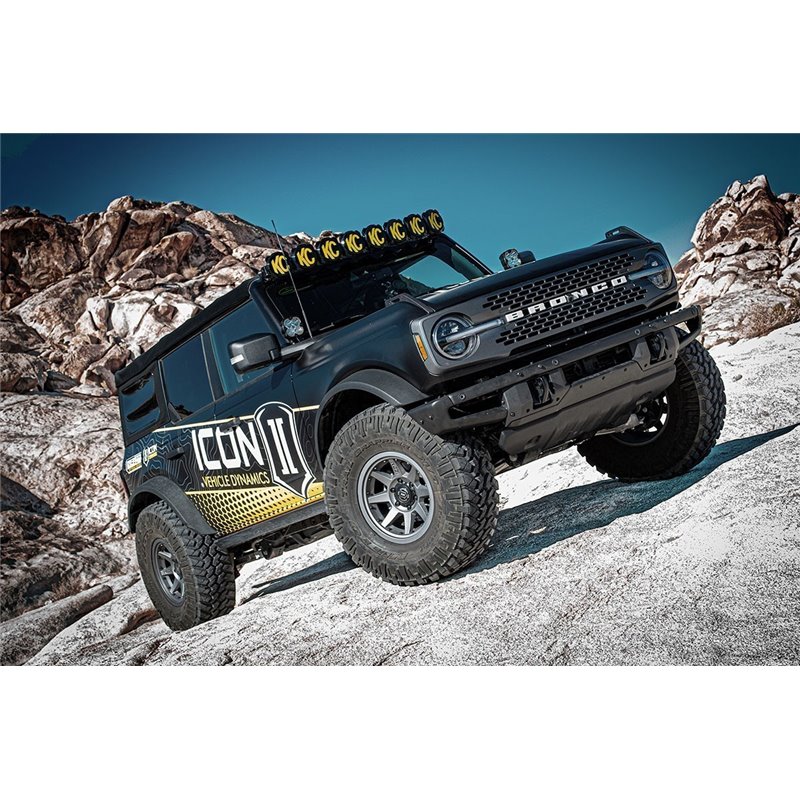

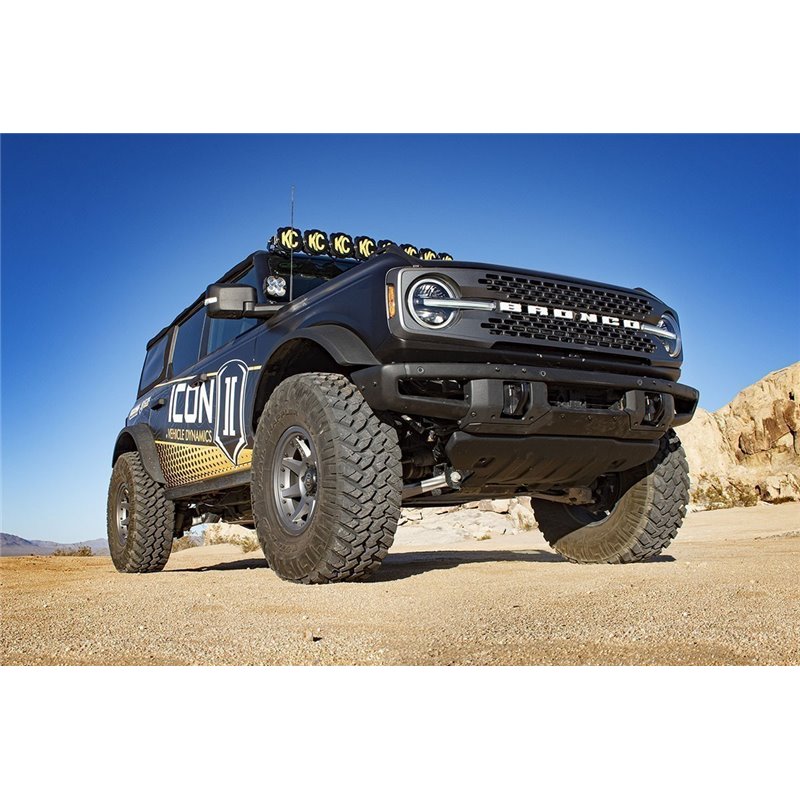

ICON Alloys | 2021-2023 Bronco Sasquatch, 2-3in Lift, Stage 3 Suspension System, Tubular UCA, Heavy Rate Rear Spring - Bronco 2.

Icon Vehicle Dynamics – Stage 3 Tubular UCA + Heavy Rate Rear Springs Suspension System (Sasquatch)

Description

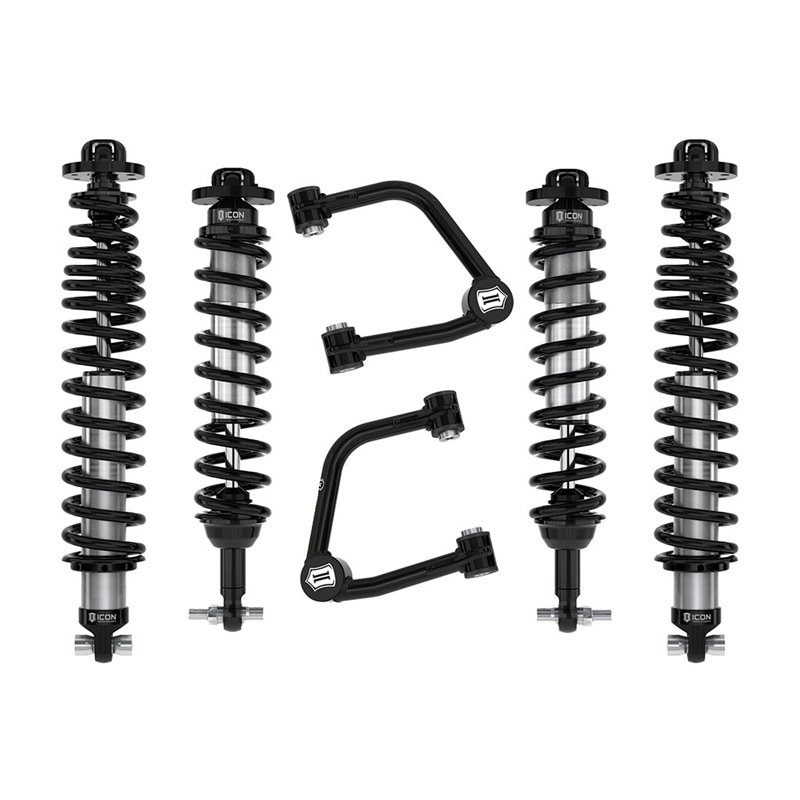

The ICON Vehicle Dynamics Stage 3 Suspension System with Tubular UCAs and Heavy Rate Rear Springs for Ford Bronco Sasquatch features precision-manufactured, custom-valved internal reservoir coilover shocks to yield maximum travel. This system delivers 2-3 in of front lift and 1.25-2.25 in of rear lift over stock 4-door Broncos with the Sasquatch Package. Tubular UCAs provide caster correction and feature the patented Delta Joint Pro (U.S. Pat. 10,731,700) with 90 degrees of total articulation. Rear coilovers are mounted shaft-up and feature ICON-engineered unique progressive dual-rate coil springs that provide extra weight capacity for Broncos frequently loaded with extra gear and equipment, while maintaining excellent on- and off-road performance. Up to 11.5 in of front suspension travel and 14 in of rear suspension travel with 35x12.50 tires. May be used safely with 37 in and larger tires with optional up-travel limiters (sold separately). 100% bolt-on installation, no drilling, cutting, or welding. Compatible with Ford Bronco Sasquatch (See Application Section).

Specifications

• Part Number: K40013TX
• Brand: Icon Vehicle Dynamics
• Lift: 2-3 in front / 1.25-2.25 in rear (Sasquatch)
• Tubular UCAs with patented Delta Joint Pro (U.S. Pat. 10,731,700), 90° articulation
• ICON-engineered progressive dual-rate (heavy rate) rear coil springs for added load capacity
• Vehicle-specific tuned internal reservoir coilover shocks
• High-strength alloy CNC machined lower bar pins
• CAD-plated coilover shock bodies with 7/8 in diameter shafts
• 6061 aircraft-grade aluminum CNC machined components
• Up to 11.5 in front / 14 in rear wheel travel with 35 in tires
• Optional up-travel limiters for use with 37 in and larger tires (sold separately)
• 100% bolt-on installation – no drilling, cutting, or welding
• Condition: New
• Sold and shipped by GBP Performance
