ICON Alloys | 2005-2015 Toyota Tacoma 0-3.5in Lift/2016-2023 Tacoma 0-2.75in Lift, Stage 8 Suspension System, Billet UCA - Tacom

Icon Vehicle Dynamics – Stage 8 Suspension System Billet UCA RXT

Description

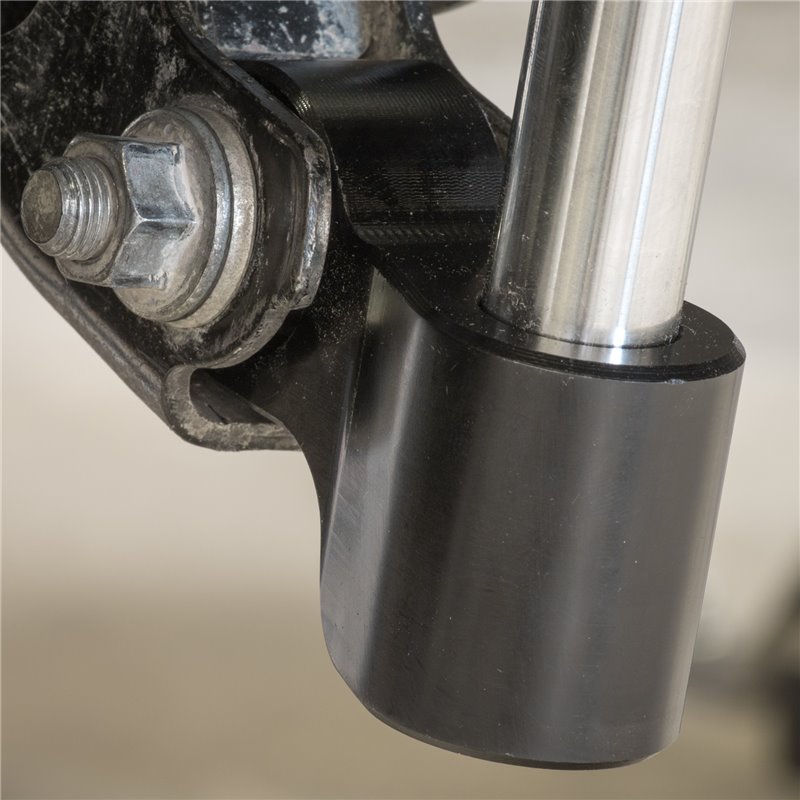

The ICON Vehicle Dynamics Stage 8 Billet UCA Suspension System (ref. K53008) represents the pinnacle of ICON performance for the Toyota Tacoma. This system features 2.5 Extended Travel remote reservoir coilover shocks adjustable from 0-3.5" (2005-2015) or 0-2.75" (2016-2023), billet aluminum UCAs with the patented Delta Joint, and an ICON RXT multi-rate leaf spring with 3 user-adjustable spring rates. The RXT-specific 2.5 Aluminum Series remote reservoir rear shock features a unique side-mounted lower eyelet that increases travel by up to 20% while utilizing the factory mounting location. Billet aluminum UCAs enable on-vehicle caster and camber adjustment for optimum drivability. All components are CNC-machined from 6061 aircraft-grade aluminum. (See Application Section)

Specifications

• Part Number: K53008
• Brand: Icon Vehicle Dynamics
• Front Lift: 0-3.5" (2005-2015) / 0-2.75" (2016-2023)
• 2.5 Extended Travel remote reservoir front coilover shocks
• Billet aluminum UCAs with patented Delta Joint (U.S. Pat. 10,731,700)
• RXT Multi-Rate Leaf Spring: 3 user-adjustable spring rates
• RXT-specific 2.5 Aluminum Series remote reservoir rear shock
• Side-mounted lower eyelet: up to 20% increased rear travel
• 6061 aircraft-grade aluminum CNC machined components, anodized CAD plated bodies
• FK Rod End bearings for extended longevity and minimal deflection
• Fitment: Toyota Tacoma (See Application Section)
• Condition: New
• Sold and shipped by GBP Performance
