Icon Vehicle Dynamics – Stage 9 Suspension System Billet UCA RXT CDCV

Description

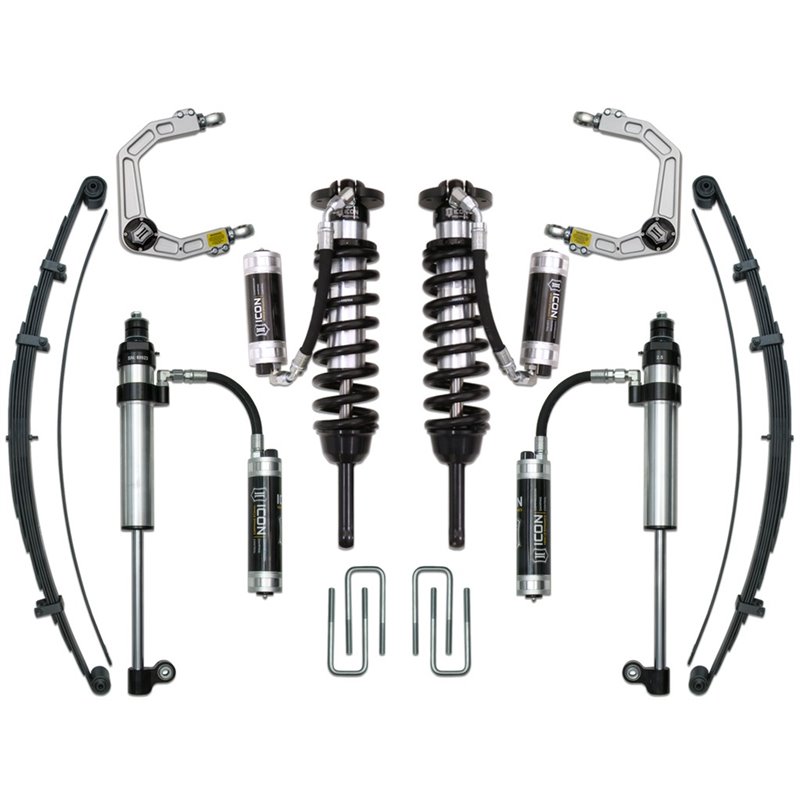

The ICON Vehicle Dynamics Stage 9 Billet UCA Suspension System (ref. K53009) represents the most complete configuration for the Toyota Tacoma, combining the RXT multi-rate leaf spring, RXT-specific 2.5 Aluminum Series rear shock, and CDC Valves (CDCV) for full adjustability. Front 2.5 Extended Travel remote reservoir coilovers with CDCV provide 10 settings of compression damping adjustment. The RXT rear shock features a side-mounted lower eyelet for up to 20% increased travel while using the factory mounting location. Billet aluminum UCAs with the patented Delta Joint enable on-vehicle caster and camber adjustment. Recommended aftermarket wheel size for V6 4.0L 4WD 2005-2015 models: 17x8.5" with 4.75" backspace. (See Application Section)

Specifications

• Part Number: K53009
• Brand: Icon Vehicle Dynamics
• Front Lift: 0-3.5" (2005-2015) / 0-2.75" (2016-2023)
• 2.5 Extended Travel remote reservoir front coilover shocks with CDCV
• 10 settings of compression damping adjustment (CDCV)
• Billet aluminum UCAs with patented Delta Joint (U.S. Pat. 10,731,700)
• RXT Multi-Rate Leaf Spring: 3 user-adjustable spring rates
• RXT-specific 2.5 Aluminum Series remote reservoir rear shock with CDCV

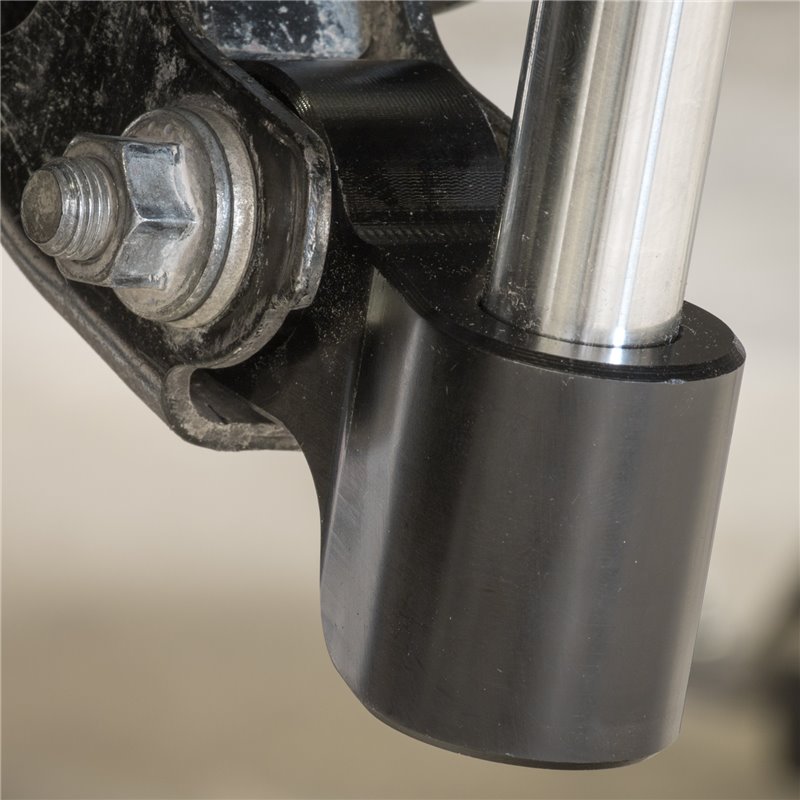

• Side-mounted lower eyelet: up to 20% increased rear travel
• 6061 aircraft-grade aluminum CNC machined components, CAD plated bodies
• Fitment: Toyota Tacoma (See Application Section)
• Condition: New
• Sold and shipped by GBP Performance
