ICON Alloys | 2005-2015 Toyota Tacoma 0-3.5in Lift/2016-2023 Tacoma 0-2.75in Lift, Stage 10 Suspension System, Tubular UCA - Tac

Icon Vehicle Dynamics – Stage 10 Suspension System Tubular UCA RXT Omega Bypass

Description

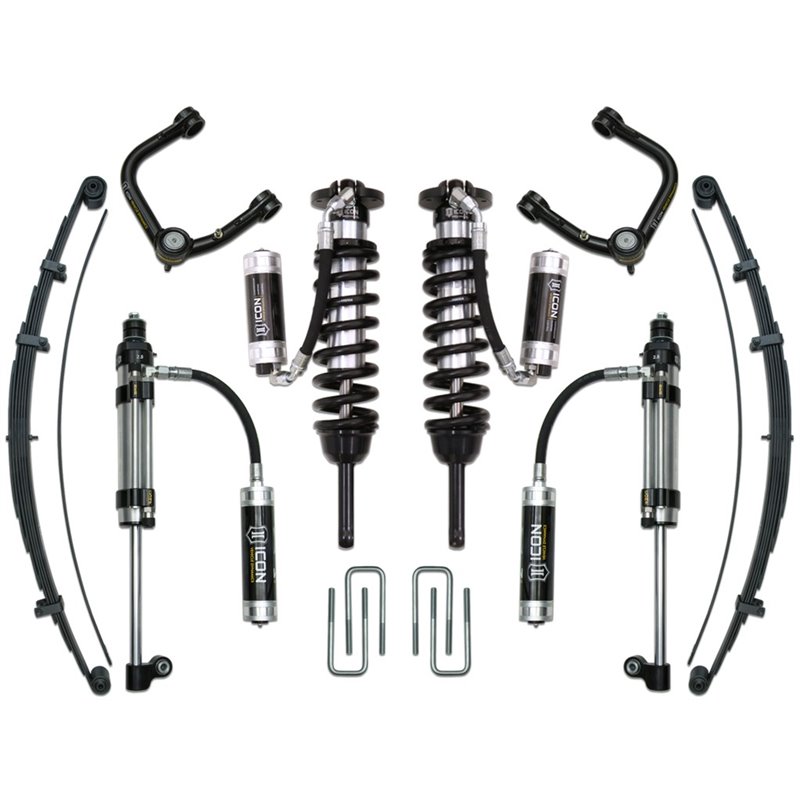

The ICON Vehicle Dynamics Stage 10 Tubular UCA Suspension System (ref. K53010T) is the ultimate configuration for the Toyota Tacoma with tubular UCAs. It features 2.5 Extended Travel CDCV remote reservoir coilover shocks (10 settings of compression damping adjustment), an RXT multi-rate leaf spring (3 user-adjustable spring rates), and 2.5 Aluminum Series RXT Omega Bypass rear shocks with compression and rebound adjustability for the ultimate in ride control. The RXT rear shock with side-mounted lower eyelet provides up to 20% increased travel using the factory mounting location. ICON tubular UCAs with the patented Delta Joint offer added strength, durability, and alignment correction. Lift: 0-3.5" (2005-2015) or 0-2.75" (2016-2023). (See Application Section)

Specifications

• Part Number: K53010T
• Brand: Icon Vehicle Dynamics
• Front Lift: 0-3.5" (2005-2015) / 0-2.75" (2016-2023)
• 2.5 Extended Travel remote reservoir front coilover shocks with CDCV
• 10 settings of compression damping adjustment (CDCV)
• Tubular UCAs with patented Delta Joint (U.S. Pat. 10,731,700)
• RXT Multi-Rate Leaf Spring: 3 user-adjustable spring rates
• 2.5 Aluminum Series RXT Omega Bypass rear shocks (compression + rebound adjustable)
• Side-mounted lower eyelet: up to 20% increased rear travel
• 6061 aircraft-grade aluminum CNC machined components, CAD plated bodies
• Fitment: Toyota Tacoma (See Application Section)
• Condition: New
• Sold and shipped by GBP Performance
