ICON Alloys | 2007-21 Toyota Tundra, 1-3in Lift, Stage 8 Suspension System, Billet UCA - Tundra 2007-2021

Icon Vehicle Dynamics – Stage 8 Suspension System Billet UCA RXT 1-3" – Toyota Tundra

Description

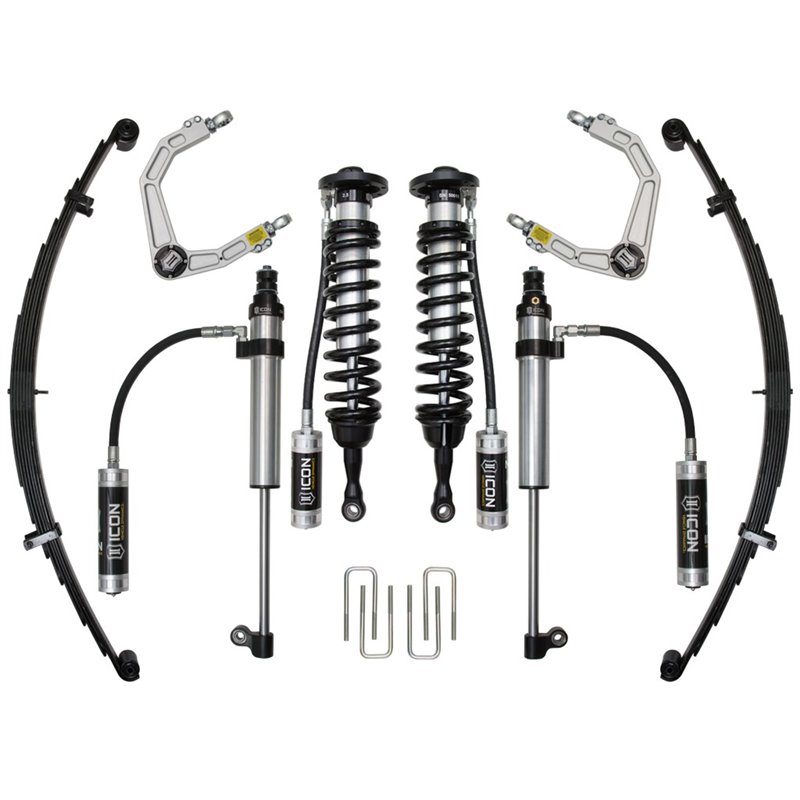

The ICON Vehicle Dynamics Stage 8 Billet UCA Suspension System (ref. K53028) is the advanced configuration for the Toyota Tundra, combining front coilovers adjustable from 1-3" of lift, ICON billet UCAs, an RXT multi-rate leaf spring with 3 user-adjustable spring rates, and 2.5 Aluminum Series RXT rear shocks with one-piece impact-extruded aluminum cylinders. The unique side-mounted lower eyelet on the RXT shocks increases rear wheel travel without sacrificing up-travel, while utilizing the factory mounting location. Ten aluminum reservoirs in the RXT shocks ensure consistent damping as shock temperature increases. Military wrap front leaf spring eyelets, galvanized leaf separators, and tip inserts are included. (See Application Section)

Specifications

• Part Number: K53028
• Brand: Icon Vehicle Dynamics
• Front Lift: 1-3" (adjustable)
• Vehicle-specifically tuned coilover shocks, CAD plated bodies / 7/8" shafts
• ICON billet aluminum UCAs (included)
• 2.5 Aluminum Series RXT rear shocks with one-piece impact-extruded cylinders
• RXT Multi-Rate Leaf Spring: 3 user-adjustable spring rates
• Side-mounted lower eyelet: increased rear travel using factory mounting location
• 10 aluminum reservoirs in RXT shocks for consistent damping
• Military wrap eyelets, galvanized separators, tip inserts (included)
• Fitment: Toyota Tundra (See Application Section)
• Condition: New
• Sold and shipped by GBP Performance
