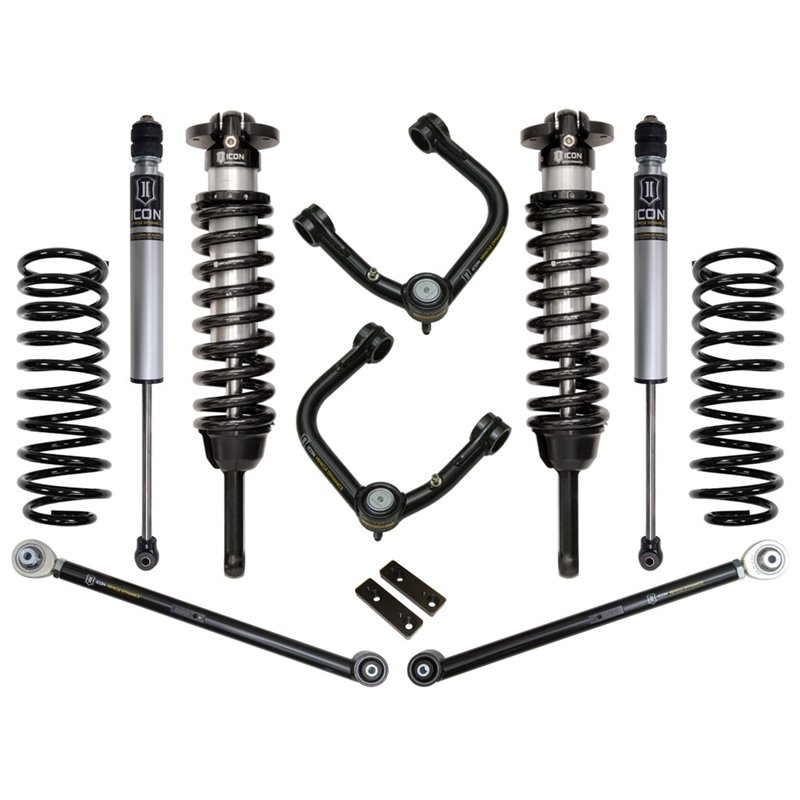

ICON Alloys | 03-09 4Runner/FJ Cruiser 0-3.5in Lift Stage 3 Suspension System, Tubular UCA - 4Runner / FJ Cruiser 4.0L / 4.7L 20

Icon Vehicle Dynamics – Stage 3 Suspension System Tubular UCA

Description

The ICON Stage 3 Tubular UCA suspension system (ref. K53053T) is designed for the Toyota 4Runner and FJ Cruiser. It includes all Stage 2 components, plus an ICON Tubular Steel Rear Lower Link kit. Extended Travel 2.5 Series coilover shocks paired with the tubular steel Delta Joint Upper Control Arm significantly upgrade the front suspension. At the rear, 2-inch lift coil springs, ICON 2.0 Aluminum Series shocks, and additional tubular lower links optimize geometry. The tubular lower links are adjustable for optimal pinion angle and feature a low-maintenance multi-durometer bushing. This system delivers correct roll steer geometry for maximum on- and off-road handling. Bolt-on installation. Compatible with Toyota 4Runner and FJ Cruiser (see Application Section). New product, sold and shipped by GBP Performance.

Specifications

• Reference: K53053T
• Manufacturer: Icon Vehicle Dynamics
• Front Lift: 0-3.5"
• Extended Travel 2.5 Series adjustable coilover shocks
• Tubular steel Delta Joint Upper Control Arm (UCA)
• Tubular rear lower links with pinion angle adjustment
• 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
• 2" rear lift coil springs included
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity
• Bolt-on installation (no cutting or welding required)
• Compatible: Toyota 4Runner V6 4.0L / V8 4.7L / FJ Cruiser V6 4.0L (see Application Section)
• Condition: New
• Sold and shipped by GBP Performance
