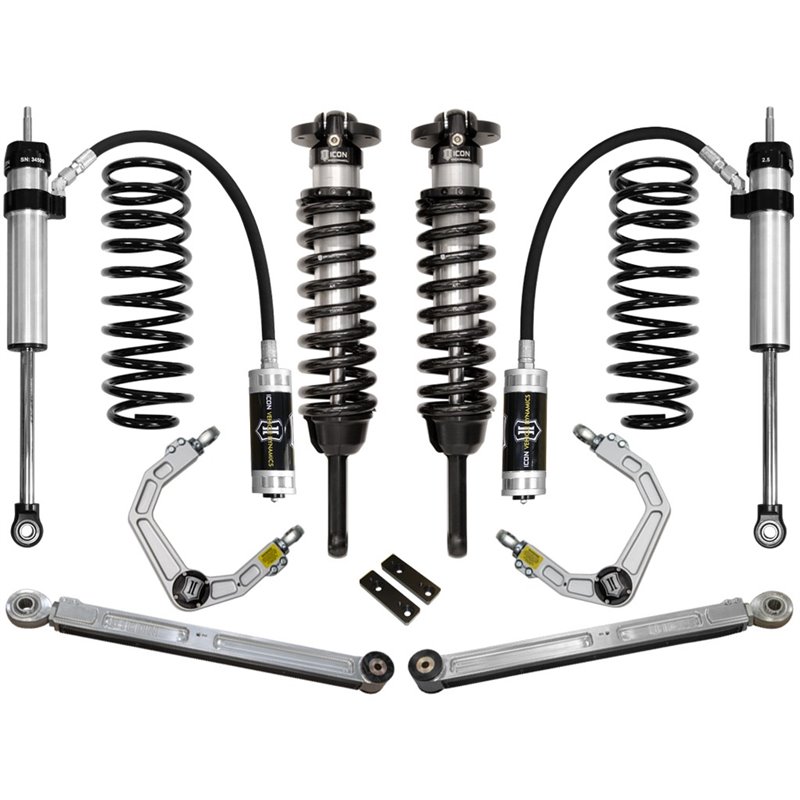

ICON Alloys | 03-09 4Runner/FJ Cruiser 0-3.5in Lift, Stage 4 Suspension System, Billet UCA - 4Runner / FJ Cruiser 4.0L / 4.7L 20

Icon Vehicle Dynamics – Stage 4 Suspension System Billet UCA

Description

The ICON Stage 4 Billet UCA suspension system (ref. K53054) is designed for the Toyota 4Runner and FJ Cruiser. It includes all Stage 3 components — Extended Travel 2.5 Series coilover shocks, billet aluminum UCA, rear coil springs, and rear lower links — with the addition of 2.5 Aluminum Series Remote Reservoir rear shocks. The remote reservoir design increases oil volume and enhances cooling for sustained performance without fade. These shocks also feature ICON's Bump Zone technology, which significantly increases damping ability in the last 2 inches of compression travel, preventing harsh bottom-out sensation. Bolt-on installation requires no cutting or welding. Compatible with Toyota 4Runner and FJ Cruiser (see Application Section). New product, sold and shipped by GBP Performance.

Specifications

• Reference: K53054
• Manufacturer: Icon Vehicle Dynamics
• Front Lift: 0-3.5"
• Extended Travel 2.5 Series adjustable coilover shocks
• Billet aluminum Upper Control Arm (UCA)
• 2.5 Aluminum Series Remote Reservoir rear shocks with 7/8" shafts
• Billet aluminum rear lower links with on-vehicle pinion angle adjustment
• ICON Bump Zone technology (prevents harsh bottom-out)
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity
• Bolt-on installation (no cutting or welding required)
• Compatible: Toyota 4Runner V6 4.0L / V8 4.7L / FJ Cruiser V6 4.0L (see Application Section)
• Condition: New
• Sold and shipped by GBP Performance
