Icon Vehicle Dynamics – Stage 4 Suspension System Tubular UCA

Description

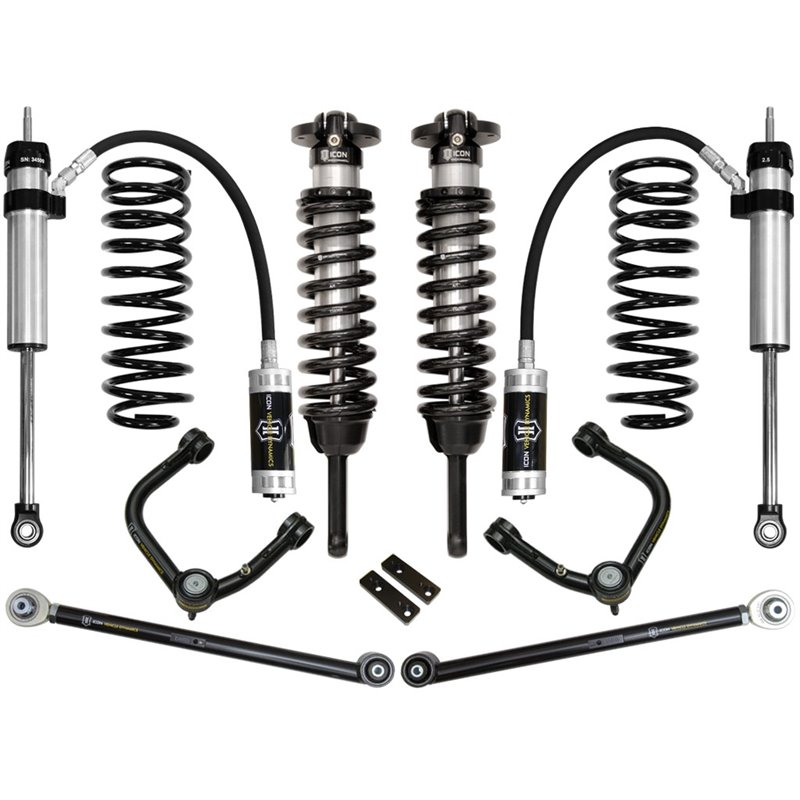

The ICON Stage 4 Tubular UCA suspension system (ref. K53064T) is designed for the Toyota 4Runner and FJ Cruiser. This system includes vehicle-specific tuned extended travel 2.5 Series coilover shocks with internal reservoir, a tubular Delta Joint UCA, tubular rear lower links, and 2.5 Aluminum Series Remote Reservoir rear shocks. The tubular UCA increases caster over stock and allows proper wheel alignment. The remote reservoir maintains cooler operating temperatures and prolongs consistent damping duration. The internal Bump Zone creates an additional 20% of damping force to control hard bottom-outs. The tubular rear lower links are adjustable for optimal pinion angle. Bolt-on installation. Compatible with Toyota 4Runner and FJ Cruiser (see Application Section). New product, sold and shipped by GBP Performance.

Specifications

• Reference: K53064T
• Manufacturer: Icon Vehicle Dynamics
• Front Lift: 0-3.5"
• Extended Travel 2.5 Series adjustable coilover shocks
• Tubular Delta Joint Upper Control Arm (UCA)
• 2.5 Aluminum Series Remote Reservoir rear shocks with 7/8" shafts
• Adjustable tubular rear lower links with pinion angle adjustment
• Internal Bump Zone – +20% damping force
• 2" rear lift coil springs included
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity
• Bolt-on installation (no cutting or welding required)
• Compatible: Toyota 4Runner L4 2.7L / V6 4.0L / FJ Cruiser V6 4.0L (see Application Section)
• Condition: New
