Icon Vehicle Dynamics – Stage 3 Billet UCA Suspension System

Description

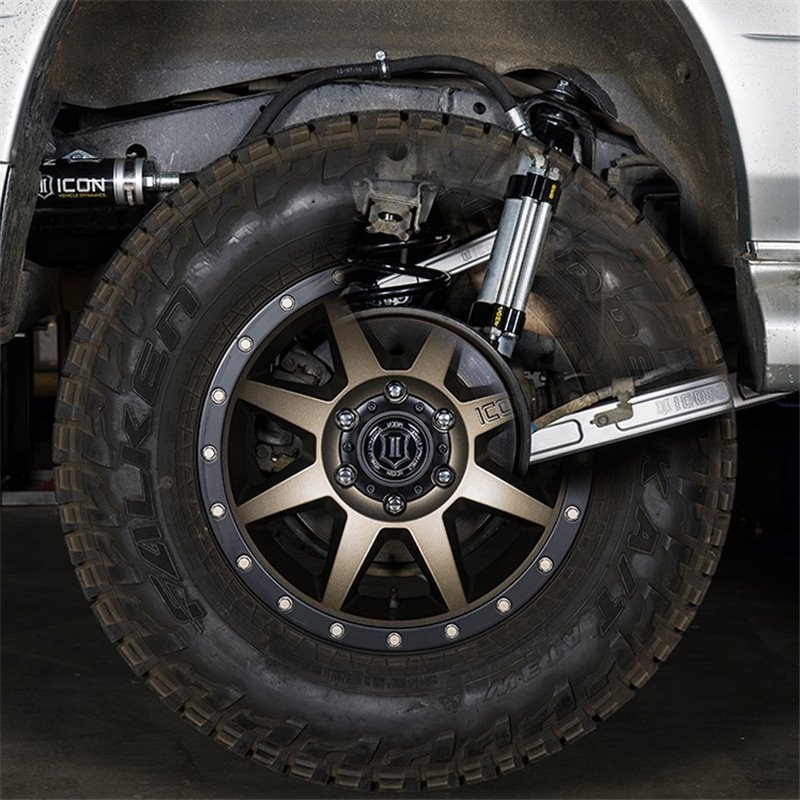

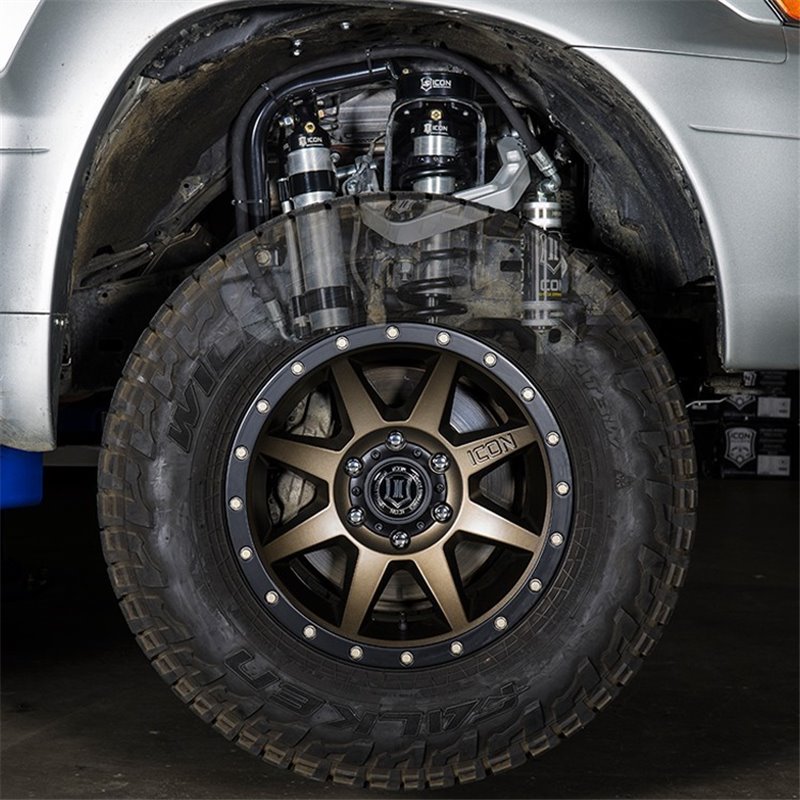

The Icon Vehicle Dynamics Stage 3 Suspension System (ref. K53173) is engineered for the Lexus GX470, providing adjustable 0-3.5 inch lift with precision performance through billet aluminum Delta Joint upper control arms. This system adds ICON billet aluminum rear lower links allowing on-vehicle pinion angle adjustment and optimized roll steer geometry. The 2.5" extended travel coilovers, 2.0 Aluminum Series IFP rear shocks, and rear coil conversion kit complete the system. Delta Joint UCAs (U.S. Pat. 10,731,700) combine ball joint durability with uniball performance. (See Application Section)

Specifications

• Reference: K53173
• Brand: Icon Vehicle Dynamics
• Lift: 0 to 3.5 inches (adjustable)
• 2.5" extended travel coilovers with internal reservoir, CAD plated body, 7/8" shaft
• 2.0 Aluminum Series IFP rear shocks, 5/8" shaft
• Billet aluminum UCA with Delta Joints (U.S. Pat. 10,731,700)
• ICON billet aluminum rear lower links (on-vehicle pinion angle adjustment)
• Rear coil spring conversion kit (eliminates factory air bag system)
• FK Rod End bearings for extended longevity and minimal deflection
• 6061 Aircraft-grade aluminum CNC machined components
• Compatibility: Lexus GX470 V8 4.7L (See Application Section)
• Condition: New
• Sold and shipped by GBP Performance
