ICON Alloys | 2003-09 Lexus GX470, 0-3.5in Lift, Stage 3 Suspension System, Tubular UCA - GX470 4.7L 2003-2009

Icon Vehicle Dynamics – Stage 3 Tubular UCA Suspension System

Description

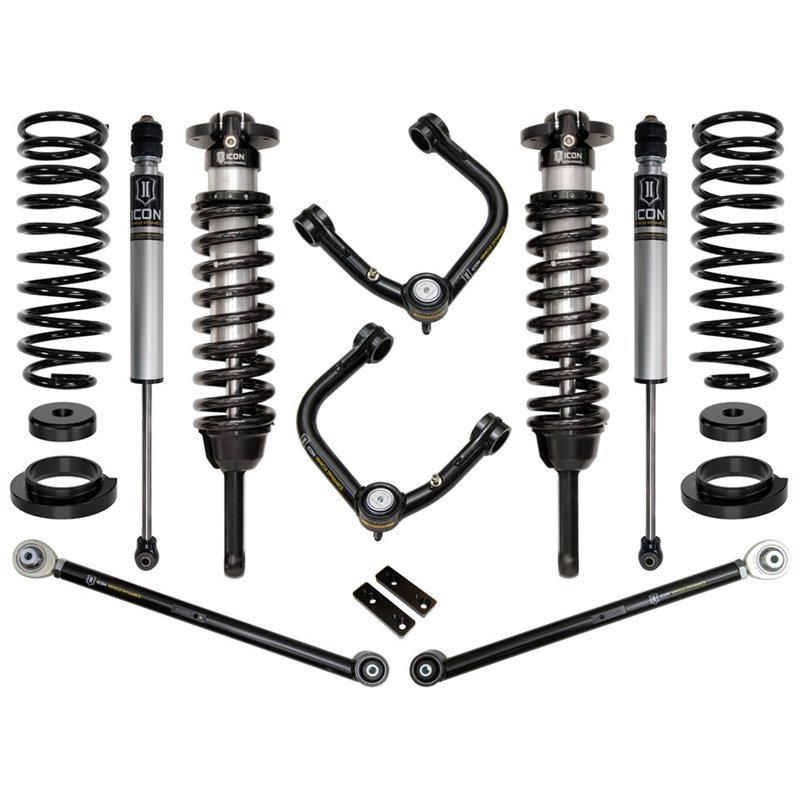

The Icon Vehicle Dynamics Stage 3 Suspension System (ref. K53173T) is engineered for the Lexus GX470, providing adjustable 0-3.5 inch lift with tubular steel Delta Joint UCAs and tubular rear lower links. Unlike the K53173 (billet), this system uses tubular UCAs with low-maintenance multi-durometer bushings for the rear lower links, ensuring optimal roll steer geometry. The 2.5" extended travel coilovers with internal reservoir, 2.0 Aluminum Series IFP rear shocks, and rear coil conversion kit complete the system. (See Application Section)

Specifications

• Reference: K53173T
• Brand: Icon Vehicle Dynamics
• Lift: 0 to 3.5 inches (adjustable)
• 2.5" extended travel coilovers with internal reservoir, CAD plated body, 7/8" shaft
• 2.0 Aluminum Series IFP rear shocks, 5/8" shaft
• Tubular steel UCA with Delta Joints (U.S. Pat. 10,731,700)
• Tubular rear lower links (pinion angle adjustment, multi-durometer bushing)
• Rear coil spring conversion kit (eliminates factory air bag system)
• FK Rod End bearings for extended longevity and minimal deflection
• 6061 Aircraft-grade aluminum CNC machined components
• Compatibility: Lexus GX470 V8 4.7L (See Application Section)
• Condition: New
• Sold and shipped by GBP Performance
