Icon Vehicle Dynamics – Stage 5 Billet UCA Suspension System

Description

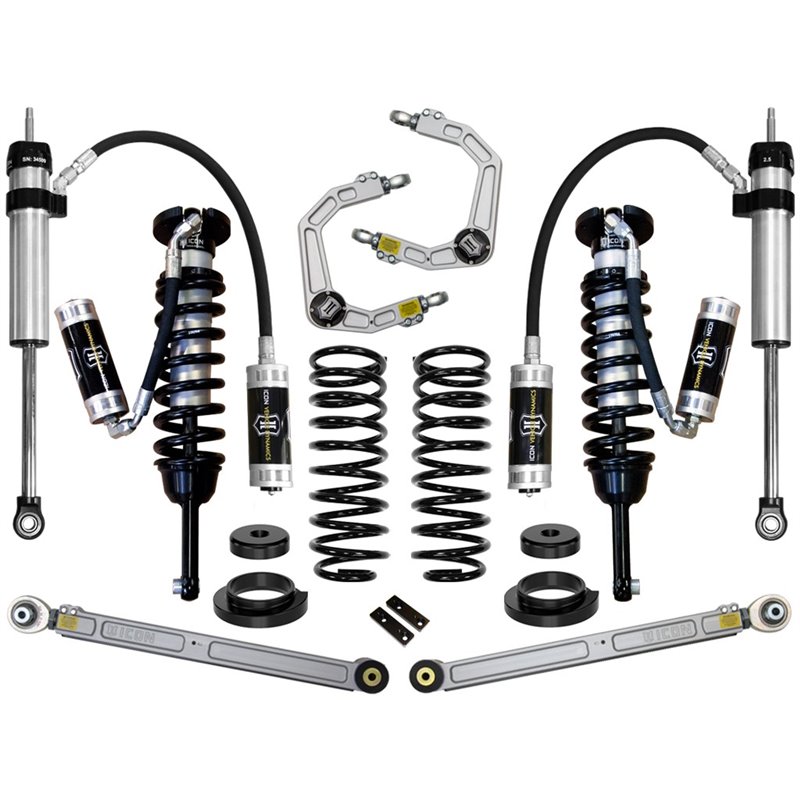

The Icon Vehicle Dynamics Stage 5 Suspension System (ref. K53175) represents a high-performance level for the Lexus GX470, providing adjustable 0-3.5 inch lift. This system upgrades the coilovers to 2.5" remote reservoir units for improved heat dissipation, paired with billet aluminum Delta Joint UCAs. ICON billet aluminum rear lower links allow on-vehicle pinion angle adjustment and optimized roll steer geometry. The 2.5" Aluminum Series remote reservoir rear shocks and rear coil conversion kit complete this system. (See Application Section)

Specifications

• Reference: K53175
• Brand: Icon Vehicle Dynamics
• Lift: 0 to 3.5 inches (adjustable)
• 2.5" extended travel remote reservoir front coilovers, CAD plated body, 7/8" shaft
• 2.5" Aluminum Series remote reservoir rear shocks, 7/8" shaft
• Billet aluminum UCA with Delta Joints (U.S. Pat. 10,731,700)
• ICON billet aluminum rear lower links (on-vehicle pinion angle adjustment)
• Rear coil spring conversion kit (eliminates factory air bag system)
• FK Rod End bearings for extended longevity and minimal deflection
• 6061 Aircraft-grade aluminum CNC machined components
• Compatibility: Lexus GX470 V8 4.7L (See Application Section)
• Condition: New
• Sold and shipped by GBP Performance
