ICON Alloys | 2010-Up Lexus GX460, 0-3.5in Lift, Stage 6 Suspension System, Tubular UCA - GX460 4.6L 2010-2022

Icon Vehicle Dynamics – Stage 6 Tubular UCA Suspension System

Description

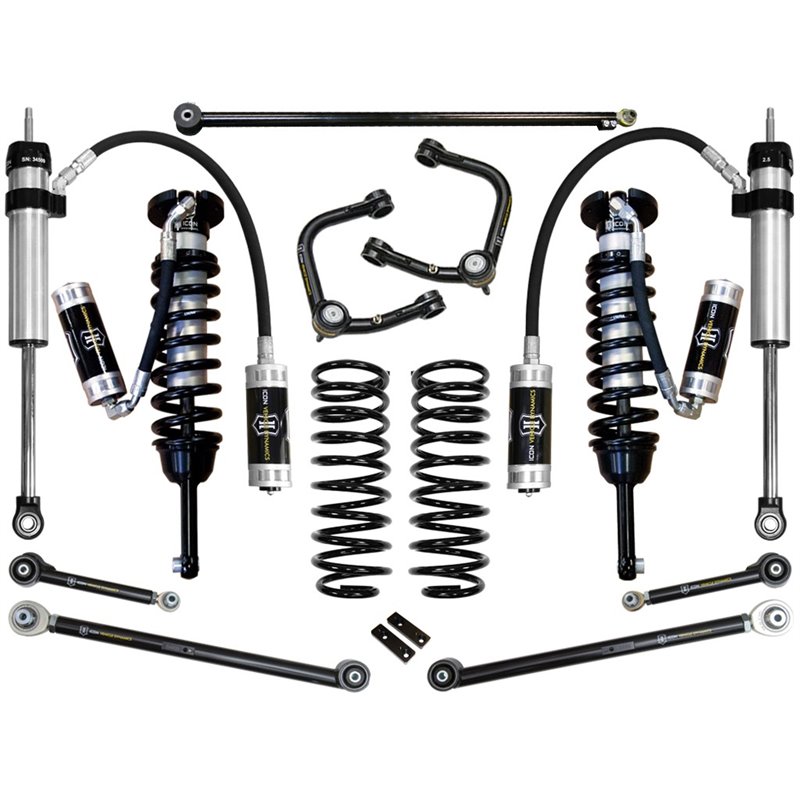

The Icon Vehicle Dynamics Stage 6 Suspension System (ref. K53186T) is engineered for the Lexus GX460, providing adjustable 0-3.5 inch lift. Compared to Stage 5, this system adds tubular rear upper links in addition to the lower links, offering maximum strength and geometry adjustment. The 2.5" remote reservoir coilovers, 2.5" Aluminum Series remote reservoir rear shocks, tubular Delta Joint UCAs, and the adjustable rear KDSS track bar complete this system. (See Application Section)

Specifications

• Reference: K53186T
• Brand: Icon Vehicle Dynamics
• Lift: 0 to 3.5 inches (adjustable)
• 2.5" extended travel remote reservoir front coilovers, CAD plated body, 7/8" shaft
• 2.5" Aluminum Series remote reservoir rear shocks, 7/8" shaft
• Tubular steel UCA with Delta Joints (U.S. Pat. 10,731,700)
• ICON tubular rear upper and lower links (pinion angle adjustment, multi-durometer bushing)
• Included adjustable rear track bar (KDSS compatible)
• FK Rod End bearings for extended longevity and minimal deflection
• 6061 Aircraft-grade aluminum CNC machined components
• Compatibility: Lexus GX460 V8 4.6L (See Application Section)
• Condition: New
• Sold and shipped by GBP Performance

Note:

• Livraison GRATUITE / FREE Delivery
