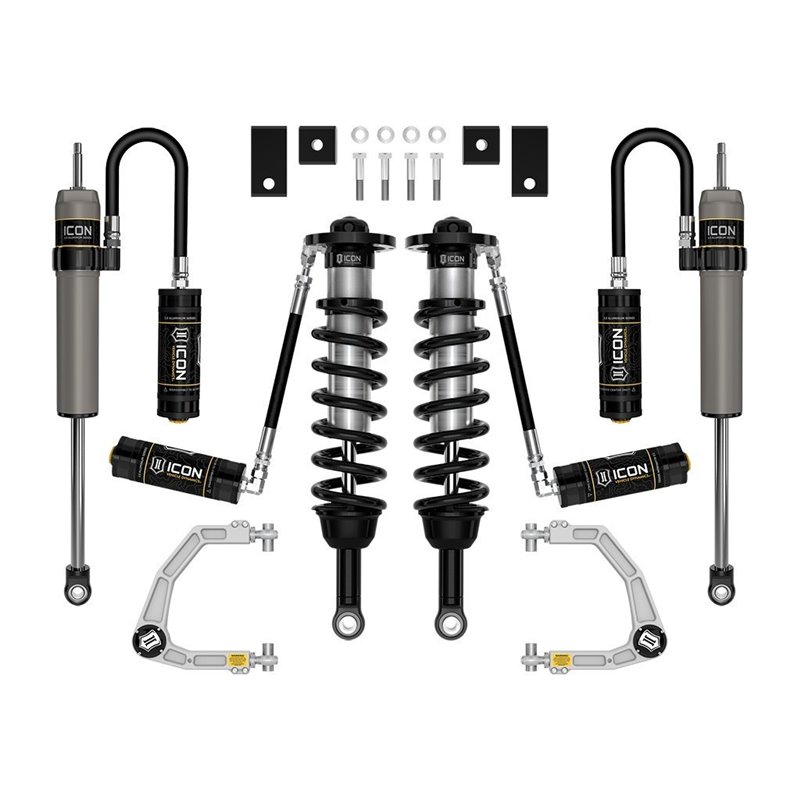

ICON Alloys | 22-23 Toyota Tundra 1.25-3.5in Lift Stage 7, 2.5 Suspension System, Billet - Tundra 3.4T / 3.5T 2022-2025

Icon Vehicle Dynamics – Stage 7 Billet UCA 2.5 Remote Reservoir Suspension System

Description

The ICON Vehicle Dynamics Stage 7 suspension system for the Toyota Tundra builds upon the Stage 6 system with the upgrade of the rear shocks to 2.5 Aluminum Series shocks with remote reservoirs, providing significantly increased rear shock performance and heat dissipation. This system offers an adjustable front lift of 1.25 to 3.5 inches with the included billet UCAs, improved on- and off-road performance, and up to 35-inch tire fitment. The 2.5 Series remote reservoir front coilovers and billet aluminum UCAs with patented Delta Joint Pro technology (U.S. Pat. 10,731,700) – 90 degrees of total articulation – complete the front setup. Sway bar drop brackets are included. 100% bolt-on installation. (See Application Section)

Specifications

• Part Number: K53197
• Brand: Icon Vehicle Dynamics
• Adjustable Front Lift: 1.25 to 3.5 inches
• Front Shocks: 2.5 Series remote reservoir coilovers
• Upper Control Arms: Billet aluminum UCAs
• Patented Delta Joint Pro technology (U.S. Pat. 10,731,700) – 90° total articulation
• Front Wheel Travel Increase: Up to 40% over stock
• Rear Shocks: 2.5 Aluminum Series remote reservoir
• Sway bar drop brackets included
• 100% bolt-on installation – no drilling or welding required
• Up to 35" tire fitment
• Condition: New
• Sold and shipped by GBP Performance
