ICON Alloys | 2023 Toyota Sequoia, 3-4.5in Lift, Stage 4 Suspension System, Tubular - Sequoia 3.4T 2023-2025

Icon Vehicle Dynamics – Stage 4 Tubular UCA Suspension System Toyota Sequoia

Description

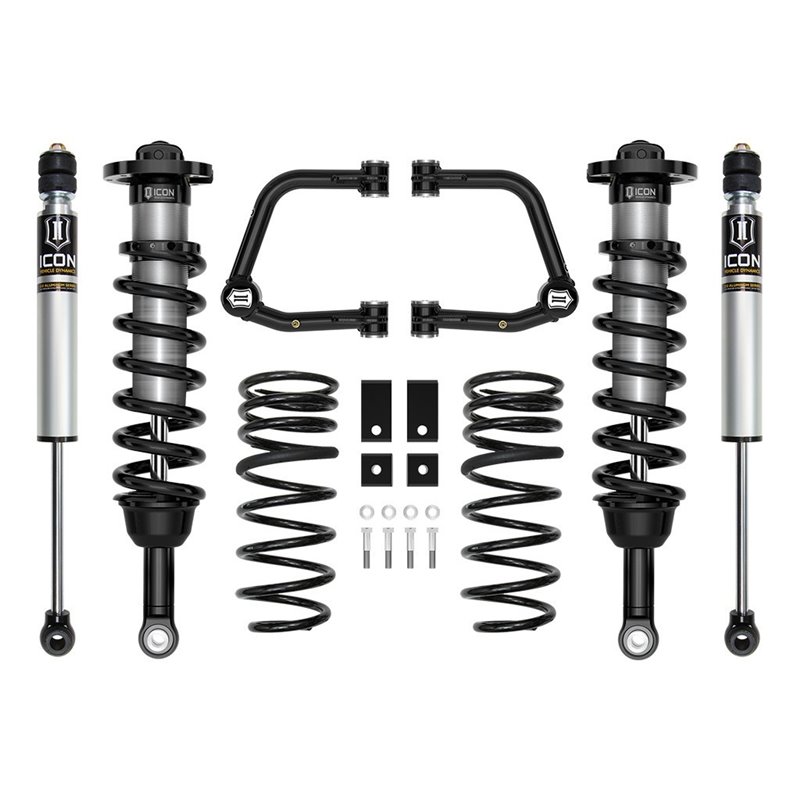

The ICON Vehicle Dynamics Stage 4 Tubular suspension system (ref. K53234T) is designed specifically for the Toyota Sequoia V6 3.4T. Building upon the Stage 3, this system adds ICON tubular front upper control arms (UCAs) for added strength, durability, and alignment correction. The 2.5 Series front coilovers with internal reservoirs provide superior damping and vehicle control, with adjustable front lift from 3 to 4.5 in. A sway bar drop kit reduces bind in OE sway bar links. At the rear, dual-rate coil springs provide 3 in. of rear lift paired with 2.0 Aluminum Series shocks. Tubular UCAs feature 90° articulation (Delta Joint Pro, US Pat. 10,731,700). Tire fitment up to 35 in. All ICON shocks are fully rebuildable. (See Application Section)

Specifications

• Reference: K53234T
• Manufacturer: Icon Vehicle Dynamics
• Compatibility: Toyota Sequoia V6 3.4T (see Application)
• Front lift range: 3–4.5 in.
• Rear lift: 3 in. (dual-rate coil springs)
• 2.5 Series front coilovers with internal reservoirs
• Tubular UCAs – 90° articulation, alignment correction (Delta Joint Pro, US Pat. 10,731,700)
• Front sway bar drop brackets included
• Dual-rate rear coil springs – 3 in. rear lift

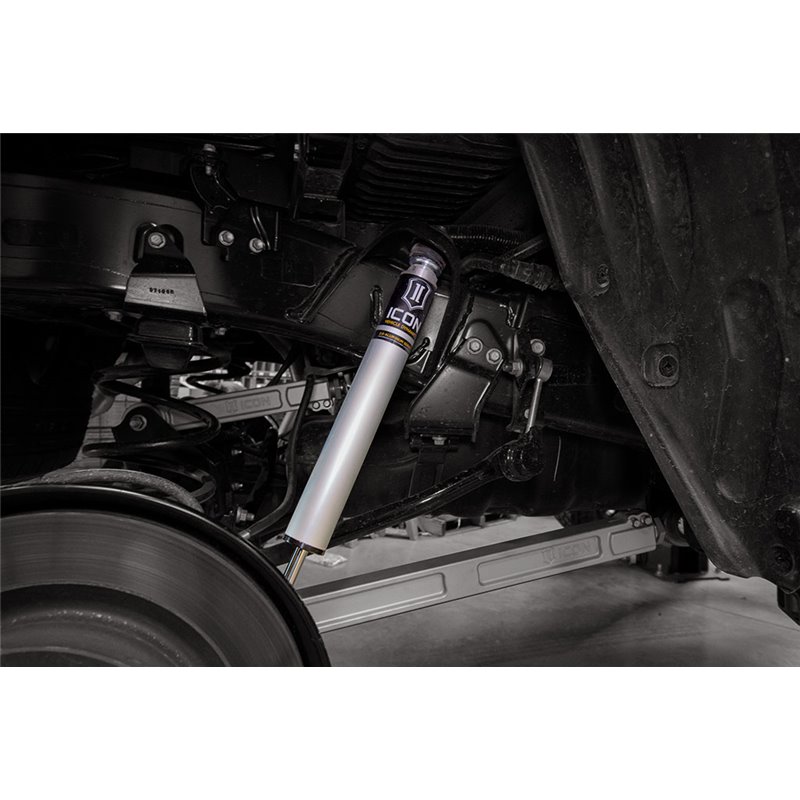

• 2.0 Aluminum Series rear shocks – balanced tune
• Full wheel travel without overstressing OE components
• Tire fitment up to 35 in.
• Condition: New
• Sold and shipped by GBP Performance
