ICON Alloys | 2023 Toyota Sequoia, 3-4.5in Lift, Stage 6 Suspension System, Tubular - Sequoia 3.4T 2023-2025

Icon Vehicle Dynamics – Stage 6 Tubular UCA Suspension System Toyota Sequoia

Description

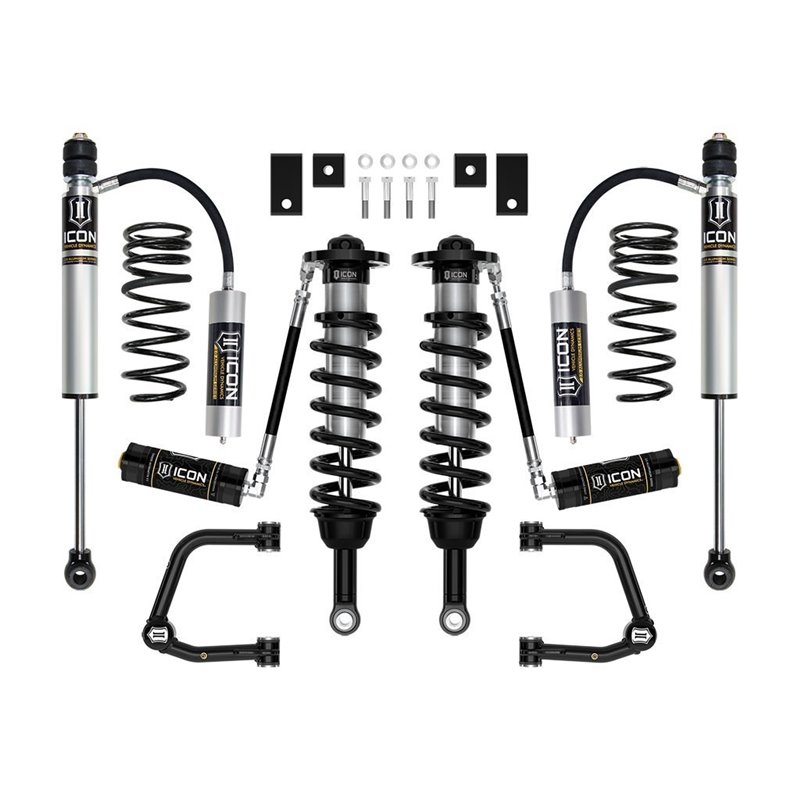

The ICON Vehicle Dynamics Stage 6 Tubular suspension system (ref. K53236T) is designed specifically for the Toyota Sequoia V6 3.4T. Building upon the Stage 5, this system upgrades the front coilovers to 2.5 Series remote reservoir versions for improved shock cooling and superior damping. Tubular UCAs provide strength, durability, and alignment correction with 90° articulation (Delta Joint Pro, US Pat. 10,731,700). Front ride height is adjustable from 3 to 4.5 in. At the rear, dual-rate coil springs and 2.0 Aluminum Series remote reservoir shocks complete the system with improved front-to-rear heat dissipation. Front sway bar drop kit included. Tire fitment up to 35 in. All ICON shocks are fully rebuildable. (See Application Section)

Specifications

• Reference: K53236T
• Manufacturer: Icon Vehicle Dynamics
• Compatibility: Toyota Sequoia V6 3.4T (see Application)
• Front lift range: 3–4.5 in.
• Rear lift: 3 in. (dual-rate coil springs)
• 2.5 Series front coilovers with remote reservoirs – improved shock cooling
• Tubular UCAs – 90° articulation, alignment correction (Delta Joint Pro, US Pat. 10,731,700)
• Front sway bar drop brackets included
• Dual-rate rear coil springs – 3 in. rear lift
• 2.0 Aluminum Series rear remote reservoir shocks
• Full wheel travel without overstressing OE components
• Tire fitment up to 35 in.
• Condition: New
• Sold and shipped by GBP Performance
