ICON Alloys | 2023 Ford F-250/F-350 Super Duty 4WD Diesel, 2.5in Lift, Stage 2 Suspension System w/ Radius Arms - F-250 / F-350

Icon Vehicle Dynamics – Stage 2 2.5in Suspension System w/ Radius Arms

Description

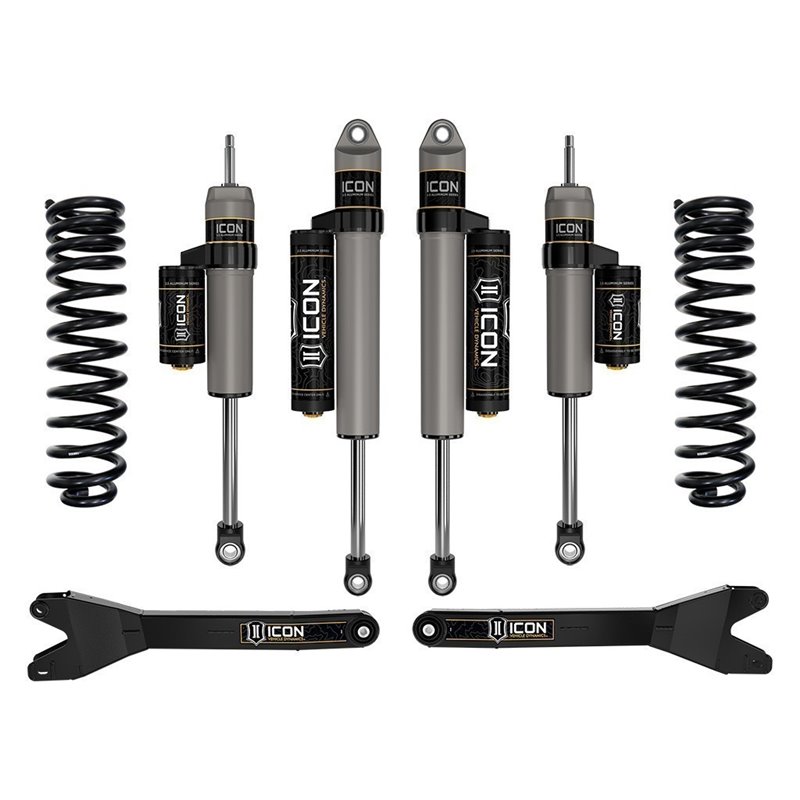

The ICON Stage 2 2.5in suspension system with radius arms is designed to lift your Ford F-250/F-350 Super Duty 4WD Diesel by 2.5 inches while significantly improving ride quality and performance. It includes dual rate coil springs optimized for diesel engines, ICON fabricated radius arms, and ICON 2.5 Aluminum Series piggyback reservoir shocks front and rear. The ICON fabricated radius arms are fully boxed with a sealed pivot bushing that minimizes road feedback and ensures long life and quiet operation. Their profile is optimized for tire clearance at full steering lock, allowing a 37in tall tire to clear without contacting the radius arm. On-vehicle caster adjustment is included. 100% bolt-on installation with no drilling, cutting, or welding required. (See Application Section)

Specifications

• Reference: K62562R
• Brand: Icon Vehicle Dynamics
• Front Lift: 2.5in
• ICON engineered dual rate coil springs optimized for diesel engines
• ICON 2.5 Aluminum Series piggyback reservoir shocks (front and rear)

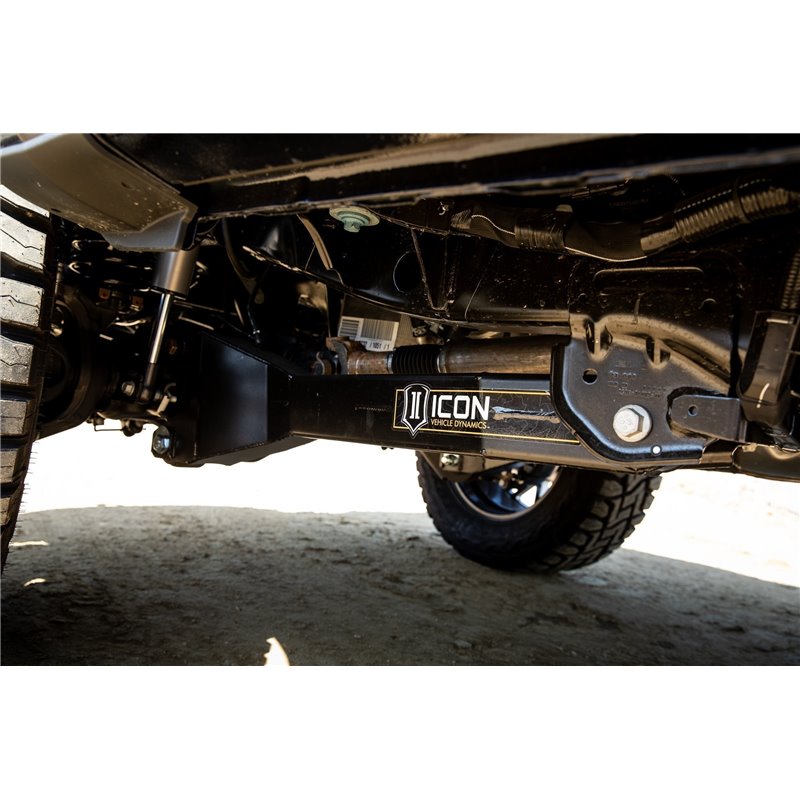

• Fabricated, fully boxed radius arms with on-vehicle caster adjustment
• Sealed pivot bushing: minimizes road feedback, long life, quiet operation
• 37in tire clearance at full steering lock without contacting radius arm
• Increased wheel travel with no change in towing capacity
• Shocks fully rebuildable and revalvable
• Lifetime guarantee against spring sag or breakage
• 100% bolt-on installation – no drilling, cutting, or welding
• Condition: New
• Sold and shipped by GBP Performance
