ICON Alloys | 19-21 Ford Ranger, 0-3.5in Lift, Stage 2 Susp System, Billet UCA Al Knuckle - Ranger 2.3T 2019-2021

ICON Vehicle Dynamics – Stage 2 Billet UCA + Al Knuckle Suspension – Ford Ranger

Description

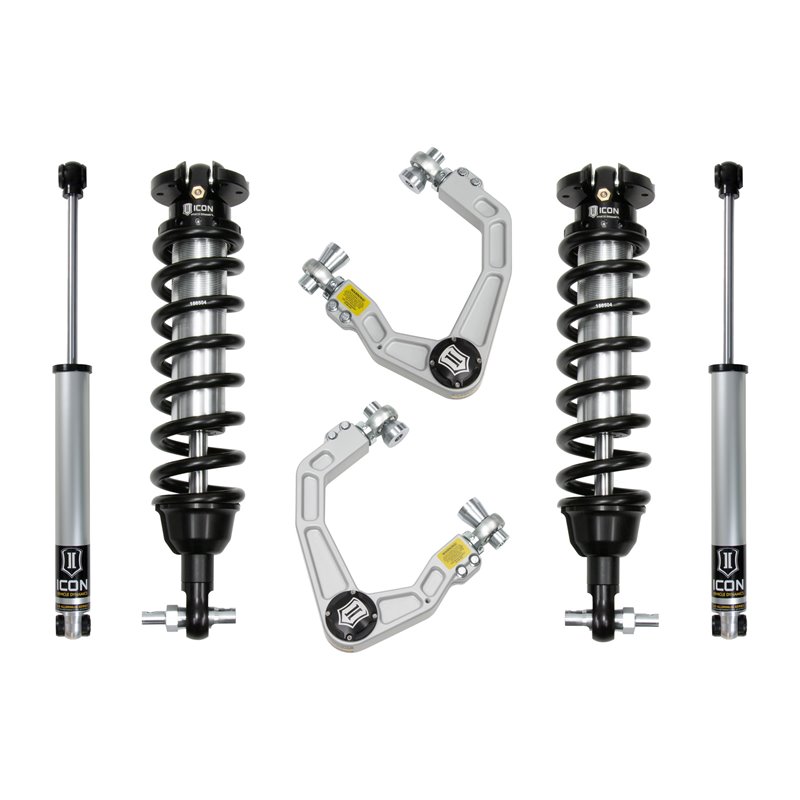

The ICON Vehicle Dynamics Stage 2 Billet UCA + Aluminum Knuckle Suspension System (ref. K93202A) is designed for the Ford Ranger and provides an adjustable front lift of 0 to 3.5 inches. This 100% bolt-on system features vehicle-specific tuned, extended travel 2.5 Series coilover shocks with an internal reservoir. CNC machined 6061 billet aluminum Upper Control Arms allow on-vehicle camber and caster adjustment while improving front-end geometry. The patented Delta Joint (U.S. Pat. 10,731,700) replaces the OE ball joint, eliminating bind and allowing full bump and droop travel. The result is a 35% increase in front wheel travel over stock. Rear 2.0 Aluminum Series monotube shocks balance front-to-rear performance. Fits both 2WD and 4WD applications. (See Application Section)

Specifications

• Reference: K93202A
• Manufacturer: ICON Vehicle Dynamics
• Adjustable front lift: 0 to 3.5 in
• Extended travel 2.5 Series coilover shocks with internal reservoir
• CNC machined 6061 billet aluminum Upper Control Arms
• Patented Delta Joint (U.S. Pat. 10,731,700) – 5-year warranty
• On-vehicle camber and caster adjustment
• +35% front wheel travel over stock
• 2.0 Aluminum Series monotube IFP rear shocks
• 100% bolt-on installation – 2WD and 4WD
• Lifetime guarantee against ICON component and coil spring breakage
• Condition: New
• Sold and shipped by GBP Performance
