ICON Impact | 22-23 Toyota Tundra 1.25-3.5in Lift Stage 7, 2.5 Suspension System, Billet

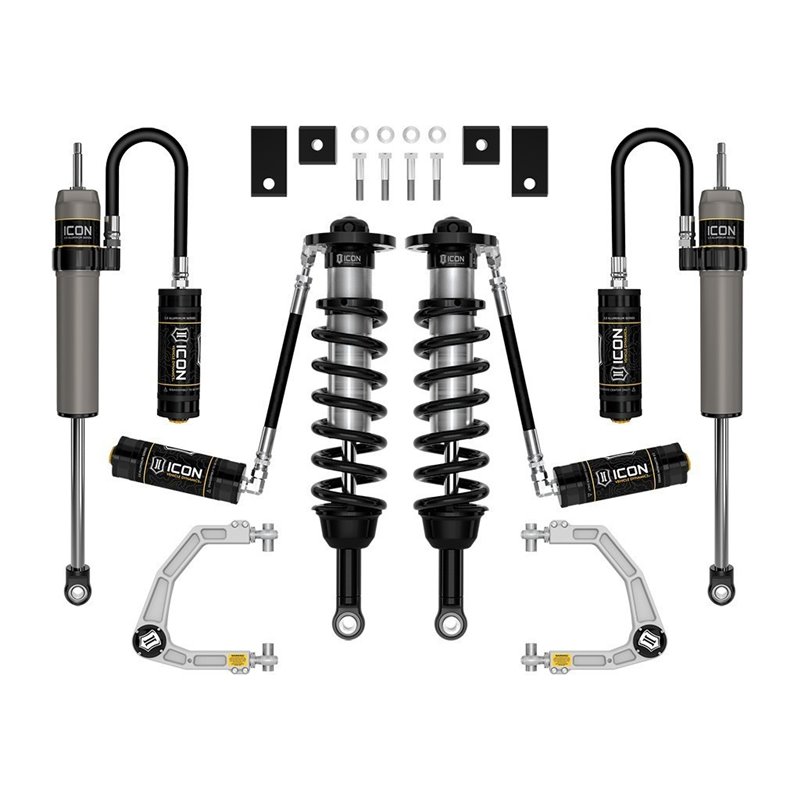

ICON Impact – Stage 7 Suspension System – Toyota Tundra

Description

The ICON Vehicle Dynamics Stage 7 suspension system for the 2022-2023 Toyota Tundra builds upon Stage 6 by upgrading the rear shocks to 2.5 Aluminum Series units with remote reservoirs, delivering significantly increased rear shock performance and heat dissipation. The 2.5 Series remote reservoir coilovers provide adjustable front ride heights from 1.25 to 3.5 inches of lift with the included billet UCAs. Featuring the patented Delta Joint Pro technology (U.S. Pat. 10,731,700) with 90 degrees of total articulation, the billet UCAs provide caster/camber adjustment and up to 40% increase in front wheel travel. Sway bar drop brackets are included. Up to 35-inch tire fitment. 100% bolt-on. New product, sold and shipped by GBP Performance.

Specifications

• SKU: K53197
• Manufacturer: ICON Vehicle Dynamics (ICON Impact)
• Compatibility: Toyota Tundra (See Application Section)
• Adjustable Front Lift Range: 1.25 to 3.5 inches
• VS 2.5 Series remote reservoir coilovers (front)
• Billet aluminum UCAs with patented Delta Joint Pro (U.S. Pat. 10,731,700)
• 90 degrees of total articulation; on-vehicle caster/camber adjustment
• 2.5 Aluminum Series remote reservoir rear shocks
• Significantly increased rear shock performance and heat dissipation vs. Stage 6
• Sway bar drop brackets included
• Up to 40% increase in front wheel travel over stock
• Up to 35-inch tire fitment
• 100% bolt-on system, no cutting or welding required
• New – Sold and shipped by GBP Performance
