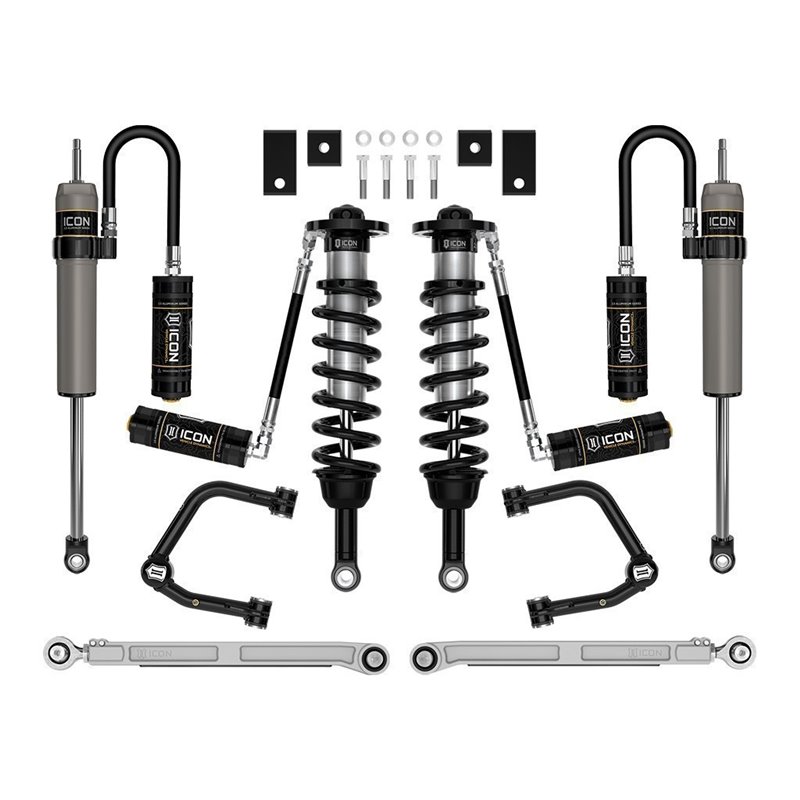

ICON Impact | 22-23 Toyota Tundra 2-3.5in Lift, Stage 8, 2.5 Suspension System, Tubular

ICON Impact – Stage 8 Suspension System – Toyota Tundra

Description

The ICON Vehicle Dynamics Stage 8 suspension system for the 2022-2023 Toyota Tundra is the most comprehensive configuration with tubular UCAs. It adds ICON billet aluminum rear lower links that free up rear suspension movement, increase ground clearance, and allow on-vehicle pinion angle adjustment. The 2.5 Series remote reservoir coilovers provide adjustable front ride heights from 2 to 3.5 inches of lift with the included tubular UCAs, featuring the patented Delta Joint Pro (U.S. Pat. 10,731,700) with 90 degrees of total articulation. The 2.5 Aluminum Series remote reservoir rear shocks complete the system for maximum performance and heat dissipation. Up to 35-inch tire fitment. 100% bolt-on. New product, sold and shipped by GBP Performance.

Specifications

• SKU: K53198T
• Manufacturer: ICON Vehicle Dynamics (ICON Impact)
• Compatibility: Toyota Tundra (See Application Section)
• Adjustable Front Lift Range: 2 to 3.5 inches
• VS 2.5 Series remote reservoir coilovers (front)
• Tubular UCAs with patented Delta Joint Pro (U.S. Pat. 10,731,700)
• 90 degrees of total articulation; on-vehicle alignment correction
• ICON billet aluminum rear lower links – rear articulation + pinion angle adjustment
• 2.5 Aluminum Series remote reservoir rear shocks
• Sway bar drop brackets included
• Up to 40% increase in front wheel travel over stock
• Up to 35-inch tire fitment
• 100% bolt-on system, no cutting or welding required
• New – Sold and shipped by GBP Performance
