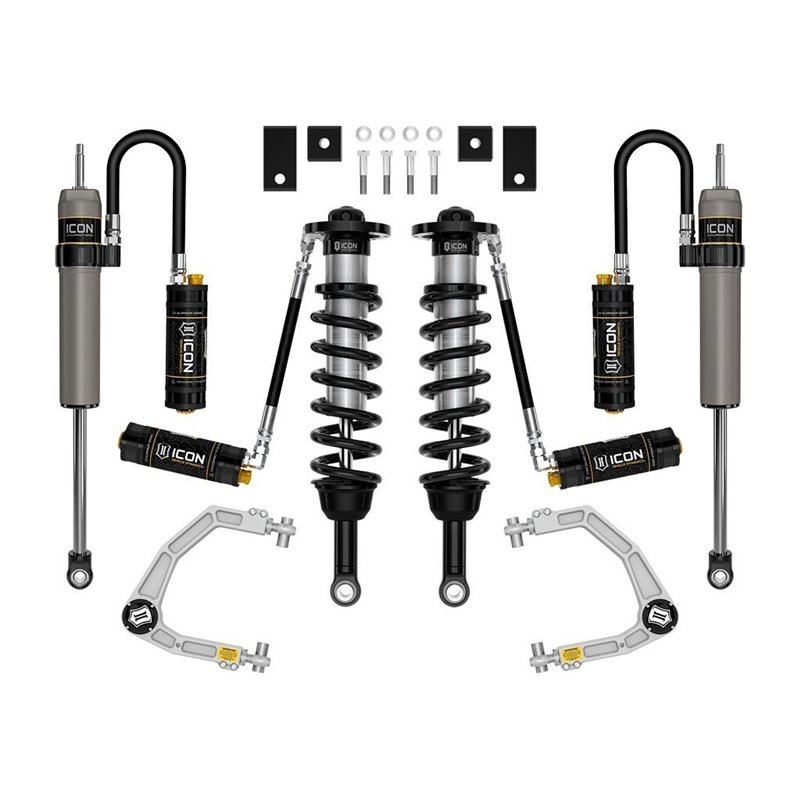

ICON Impact | 22-23 Toyota Tundra 1.25-3.5in Lift Stage 9, 2.5 Suspension System, Billet

ICON Impact – Stage 9 Suspension System – Toyota Tundra

Description

The ICON Vehicle Dynamics Stage 9 suspension system for the 2022-2023 Toyota Tundra is the full CDCV (Compression Damping Control Valve) configuration, upgrading both front and rear shocks with CDCV technology. CDCV controls fluid flow under compression, offering 10 settings from soft to hard so drivers can precisely tune the suspension for street driving, rock crawling, or high-speed desert running. The 2.5 Series remote reservoir coilovers with CDCV provide adjustable front ride heights from 1.25 to 3.5 inches of lift with the included billet UCAs. Featuring the patented Delta Joint Pro (U.S. Pat. 10,731,700) with 90 degrees of total articulation, the billet UCAs provide caster/camber adjustment and up to 40% increase in front wheel travel. 100% bolt-on. New product, sold and shipped by GBP Performance.

Specifications

• SKU: K53199
• Manufacturer: ICON Vehicle Dynamics (ICON Impact)
• Compatibility: Toyota Tundra (See Application Section)
• Adjustable Front Lift Range: 1.25 to 3.5 inches
• VS 2.5 Series remote reservoir coilovers with CDCV (front)
• 2.5 Aluminum Series remote reservoir rear shocks with CDCV
• 10 CDCV settings: compression damping from soft to hard
• Billet aluminum UCAs with patented Delta Joint Pro (U.S. Pat. 10,731,700)
• 90 degrees of total articulation; on-vehicle caster/camber adjustment
• Sway bar drop brackets included
• Up to 40% increase in front wheel travel over stock
• Up to 35-inch tire fitment
• 100% bolt-on system, no cutting or welding required
• New – Sold and shipped by GBP Performance
