ICON Impact | 19-21 Ford Ranger, 0-3.5in Lift, Stage 2 Susp System, Billet UCA Al Knuckle

ICON Vehicle Dynamics – Stage 2 Suspension System with Billet UCA & Aluminum Knuckle

Description

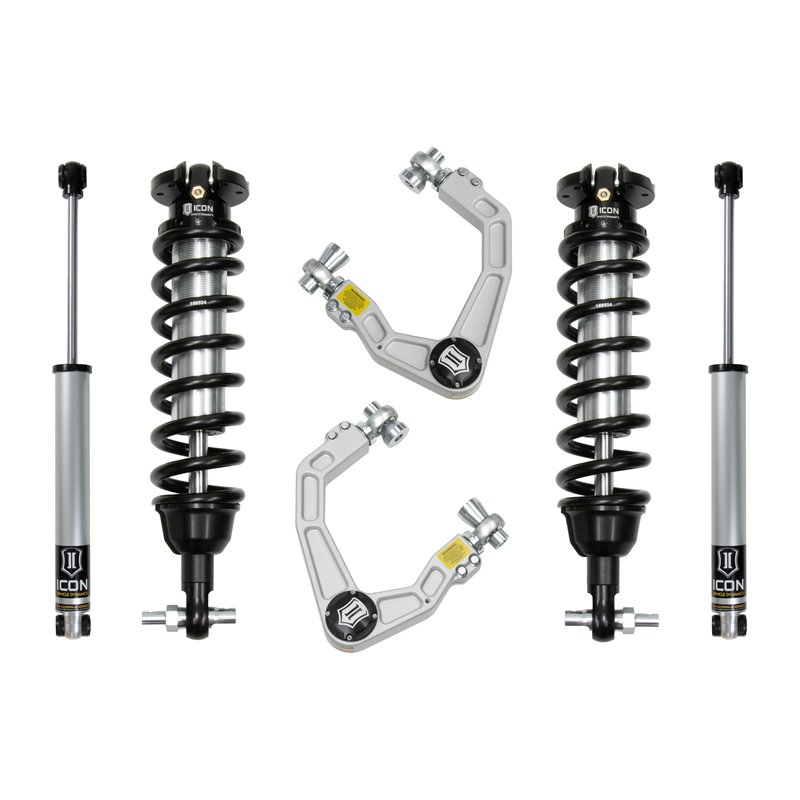

ICON Vehicle Dynamics suspension systems for the Ford Ranger are designed to dramatically increase on and off-road ride quality. The Stage 2 (Billet) system includes vehicle-specific tuned, extended travel 2.5 Series coilover shocks with an internal reservoir and ICON-engineered coil springs, adjustable from 0 to 3.5 inches. The billet aluminum UCA kit corrects front-end geometry, improves on-vehicle camber and caster adjustment, and increases suspension component clearance. The patented Delta Joint (U.S. Pat. 10,731,700) replaces the OE ball joint for full bump travel without bind. ICON 2.0 Aluminum Series monotube rear shocks balance performance from front to rear. Fits 2WD and 4WD applications.

Specifications

• Brand: ICON Vehicle Dynamics
• Part Number: K93202A
• Fitment: Ford Ranger 2WD/4WD (See Application Section)
• Lift Height: 0–3.5in
• System: Stage 2 with Billet UCA and Aluminum Knuckle
• Extended travel 2.5 Series coilovers, internal reservoir, CAD plated body, 7/8" shaft
• Rear Shocks: ICON 2.0 Aluminum Series monotube, anodized body, 5/8" shaft
• Patented Delta Joint (U.S. Pat. 10,731,700): ball joint durability + uniball performance
• 35% increase in front wheel travel over stock
• 6061 CNC machined billet aluminum UCAs with on-vehicle camber/caster adjustment
• Fully rebuildable and revalvable
• Fits 2WD and 4WD applications
• Condition: New
• Sold and shipped by GBP Performance
