ICON | 24 TACOMA 1.25-3in STAGE 2 SUSPENSION SYSTEM BILLET WITH TRIPLE RATE SPRING - Tacoma 2.4T 2024-2025

ICON Vehicle Dynamics – Stage 2 Billet Suspension System 1.25-3in with Triple Rate Spring

Description

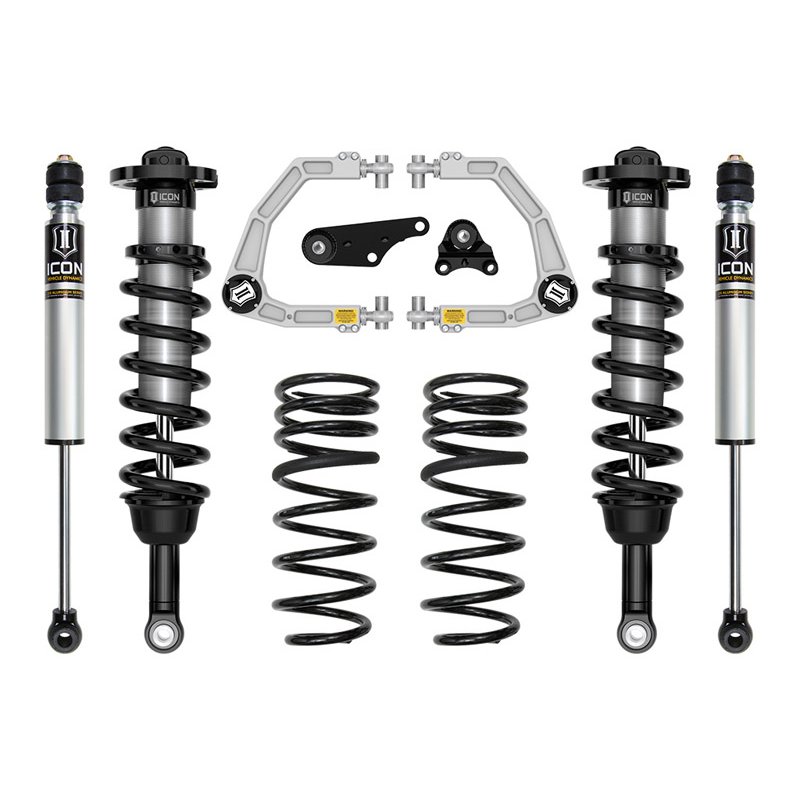

The ICON Vehicle Dynamics Stage 2 Billet Suspension System with Triple Rate Spring (SKU: K53292S) is designed for the Toyota Tacoma. This system includes vehicle-specific tuned 2.5 Series coilover shocks with internal reservoirs, providing adjustable front lift height from 1.25 to 3in. ICON’s triple-rate rear coil springs provide a softer droop and ride rate with a firmer overload rate, delivering on-road comfort with excellent bottoming resistance and off-road performance, while providing 0.5in of rear lift. The included 6061 billet aluminum UCA kit with patented Delta Joint PRO (U.S. Pat. 10,731,700) corrects front-end geometry and allows on-vehicle caster and camber adjustment. ICON 2.0 Aluminum Series internal reservoir rear shocks balance truck performance from front to rear. Recommended aftermarket tires: 33 x 11.50in.

Specifications

• Brand / Manufacturer: ICON Vehicle Dynamics
• SKU / Part Number: K53292S
• Fitment: Toyota Tacoma L4 2.4L Turbo (See Application Section)
• Category: Complete Suspension System – Stage 2 with Triple Rate Springs
• Front Coilovers: 2.5 Series with internal reservoirs, 1.25-3in lift
• Rear Shocks: 2.0 Aluminum Series with internal reservoirs, 2in body
• UCA: 6061 billet aluminum, patented Delta Joint PRO, adjustable
• Rear Springs: ICON triple-rate progressive, +0.5in rear lift
• Front Coil Springs Included: Yes – ICON-engineered, linear rate
• OEM Wheels & Tires Fitment: Yes
• Maximum Rear Lift: 0.5 in
• Condition: New
• Sold and shipped by GBP Performance
