ICON | 24 TACOMA 1.25-3in STAGE 4 SUSPENSION SYSTEM TUBULAR WITH TRIPLE RATE SPRING - Tacoma 2.4T 2024-2025

ICON Vehicle Dynamics – Stage 4 Tubular Suspension System 1.25-3in with Triple Rate Spring

Description

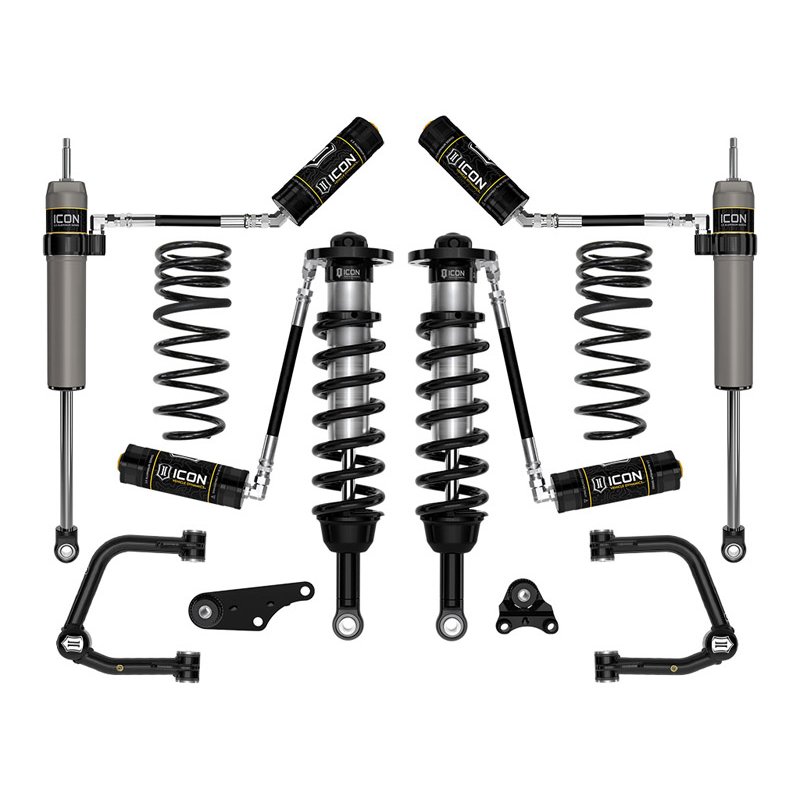

The ICON Vehicle Dynamics Stage 4 Tubular Suspension System with Triple Rate Spring (SKU: K53294TS) is engineered for the Toyota Tacoma. This system includes vehicle-specific tuned 2.5 Series coilover shocks featuring remote reservoirs and ICON-engineered coil springs, providing adjustable front lift from 1.25 to 3in. The ICON tubular UCA kit with rebuildable Delta Joint PRO corrects front-end geometry with built-in additional caster. ICON’s triple-rate rear coil springs combine a softer droop rate with a firmer overload rate while adding 0.5in of rear lift. ICON 2.5 Aluminum Series remote reservoir rear shocks with integrated bump zones provide increased performance and balanced tuning. Recommended aftermarket tires: 33 x 11.50in.

Specifications

• Brand / Manufacturer: ICON Vehicle Dynamics
• SKU / Part Number: K53294TS
• Fitment: Toyota Tacoma L4 2.4L Turbo (See Application Section)
• Category: Complete Suspension System – Stage 4 Tubular with Triple Rate Springs
• Front Coilovers: 2.5 Series with remote reservoirs, 1.25-3in lift
• Rear Shocks: 2.5 Aluminum Series with remote reservoirs, 2.5in body
• UCA: Tubular, built-in caster, Delta Joint PRO (U.S. Pat. 10,731,700)
• Rear Springs: ICON triple-rate progressive, +0.5in rear lift
• Front Coil Springs Included: Yes – ICON-engineered, linear rate
• OEM Wheels & Tires Fitment: Yes
• Maximum Rear Lift: 0.5 in
• Condition: New
• Sold and shipped by GBP Performance
