ICON | 24 TACOMA 1.25-3in STAGE 5 SUSPENSION SYSTEM TUBULAR WITH TRIPLE RATE SPRING - Tacoma 2.4T 2024-2025

ICON Vehicle Dynamics – Stage 5 Tubular Suspension System 1.25-3in with Triple Rate Spring

Description

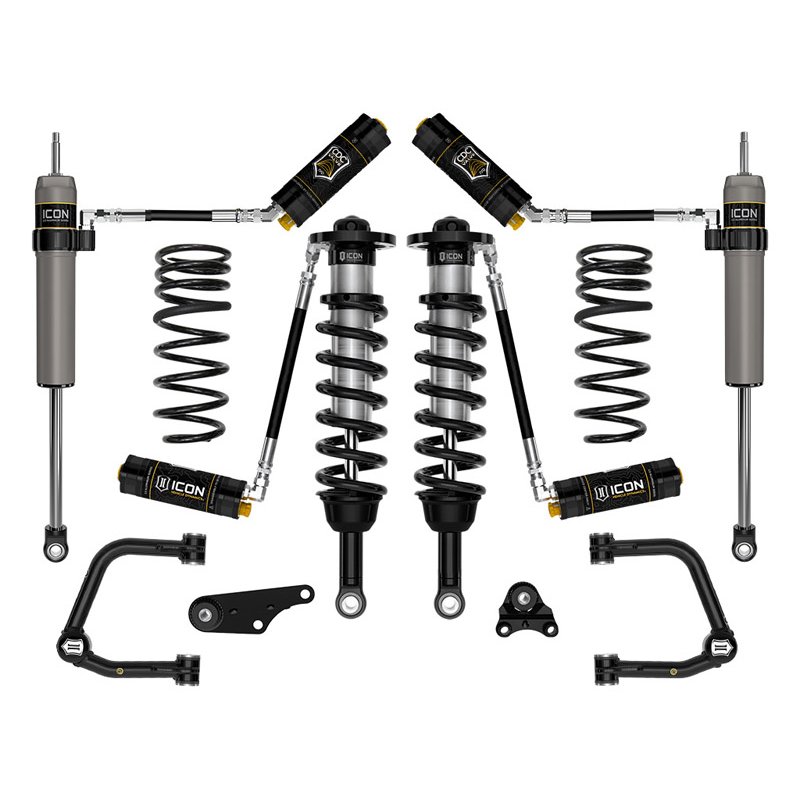

The ICON Vehicle Dynamics Stage 5 Tubular Suspension System with Triple Rate Spring (SKU: K53295TS) is engineered for the Toyota Tacoma. This system includes vehicle-specific tuned 2.5 Series coilover shocks with CDCV equipped remote reservoirs providing 10 manually adjustable compression damping levels. Front lift height is adjustable from 1.25 to 3in. The ICON tubular UCA kit with Delta Joint PRO (U.S. Pat. 10,731,700) corrects front-end geometry with built-in additional caster. ICON’s triple-rate rear coil springs combine a softer droop rate with a firmer overload rate while adding 0.5in of rear lift. ICON 2.5 Aluminum Series remote reservoir rear shocks with integrated bump zones and CDCV valves provide balanced tuning. Recommended aftermarket tires: 33 x 11.50in.

Specifications

• Brand / Manufacturer: ICON Vehicle Dynamics
• SKU / Part Number: K53295TS
• Fitment: Toyota Tacoma L4 2.4L Turbo (See Application Section)
• Category: Complete Suspension System – Stage 5 Tubular with Triple Rate Springs
• Front Coilovers: 2.5 Series with CDCV remote reservoirs, 1.25-3in lift
• Rear Shocks: 2.5 Aluminum Series with CDCV remote reservoirs, 2.5in body
• UCA: Tubular, built-in caster, Delta Joint PRO (U.S. Pat. 10,731,700)
• Rear Springs: ICON triple-rate progressive, +0.5in rear lift
• Damping Adjustment: Manual CDCV, 10 compression levels
• Front Coil Springs Included: Yes – ICON-engineered, linear rate
• OEM Wheels & Tires Fitment: Yes
• Condition: New
• Sold and shipped by GBP Performance
