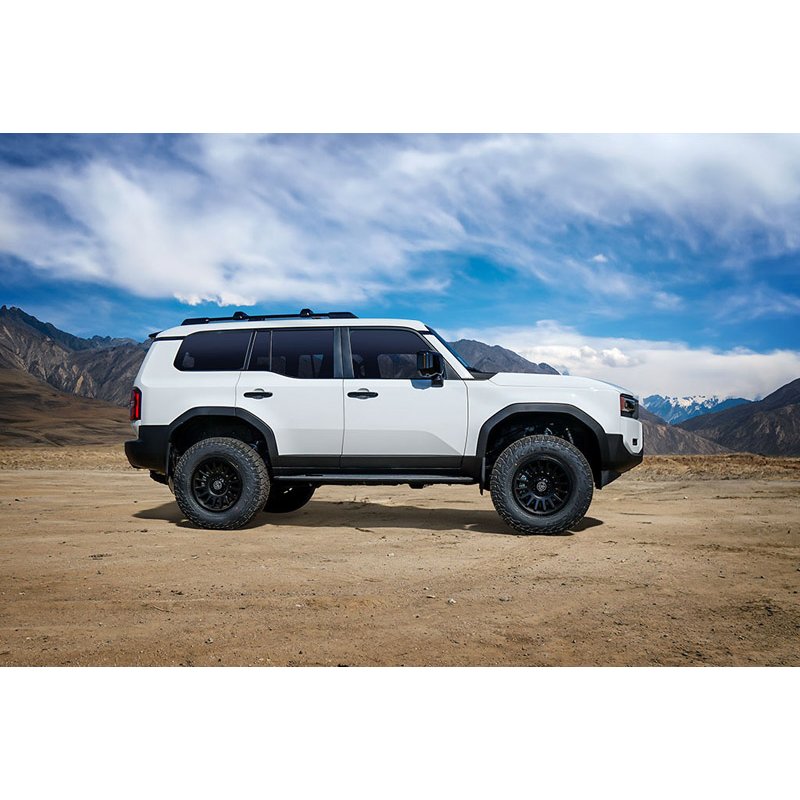

ICON | 24 LAND CRUISER 250 SERIES 1.25-3in LIFT STAGE 2 SUSPENSION SYSTEM TUBULAR - Land Cruiser 2.4T 2024-2025

ICON Vehicle Dynamics – Suspension System

Description

The ICON Vehicle Dynamics Stage 2 suspension system (SKU K53362T) is engineered for the Toyota Land Cruiser 250 Series 2.4T. Vehicle-specific tuned 2.5in internal reservoir coilovers provide 1.25 to 3in of front lift. This kit includes tubular UCAs with the patented Delta Joint PRO (U.S. Pat. 10,731,700) for corrected front-end geometry and eliminating CV bind. The front differential drop maximizes available front suspension travel. Dual-rate progressive rear coil springs and 2.0 Aluminum Series internal reservoir rear shocks deliver 2in of rear lift with balanced on-road and off-road performance. Passive suspension, compatible with OEM wheels and tires.

Specifications

• Brand/Manufacturer: ICON Vehicle Dynamics
• SKU/Reference: K53362T
• Front Lift: 1.25 to 3 in
• Rear Lift: 2 in
• Front Shock Diameter: 2.5 in
• Rear Shock Diameter: 2.0 in (Aluminum Series)
• Reservoir Style: Internal (front and rear)
• Suspension Type: Passive (non-adjustable)
• Tubular UCAs with Delta Joint PRO (90°, U.S. Pat. 10,731,700)
• Rear Spring Rate Type: Progressive Dual Rate
• Materials: 6061 aircraft-grade aluminum, CAD plated corrosion resistant
• Compatibility: Toyota Land Cruiser 250 L4 2.4T (See Application Section)
• Condition: New
• Sold and shipped by GBP Performance
